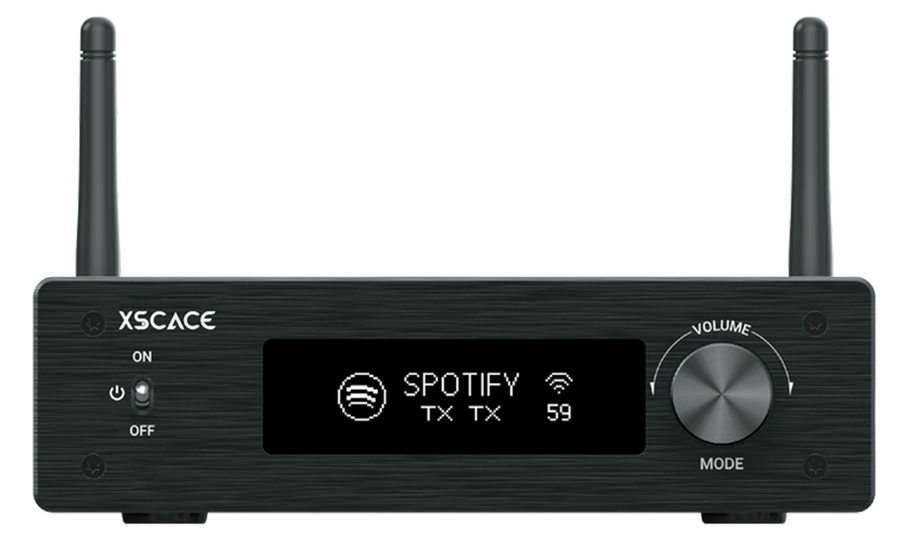

Air Amp
Pre-Amplifier / Streaming Amplifier
The Air Amp combines wireless streaming and refined amplification. AirPlay 2, Bluetooth 5.0 APTX-HD, Spotify Connect.
XAM-AIR-AMP
160W8ΩPowered
Black
2×80W Built-inAirPlay 2BT 5.0 APTX-HDSpotify ConnectWi-Fi 2.4 + 5GHzHDMI eARCSub OutMulti-Room
80
Built-in amplifier
2×80W Class D amplifier at 4Ω — or 2×40W at 8Ω. Drives passive XSCACE speakers directly. No Xylem, no rack gear, no extra cables. One box, full power.
2×80W · 4ΩClass DSub Out
05
Streaming options
AirPlay 2, Bluetooth 5.0 APTX-HD, Spotify Connect, DLNA/UPnP, HDMI eARC, SPDIF Optical, USB, and RCA analogue — all inputs live simultaneously.
AirPlay 2BT APTX-HDSpotifyHDMI eARC
24
Hi-Res DAC
Onboard 192kHz / 24-bit DAC. Bluetooth APTX-HD carries 24-bit audio wirelessly. Every stream is converted and output with full precision.
192kHz / 24-bitAPTX-HDBit-Perfect
Amplification
No amp needed. Ever.
The Air Amp has a Class D amplifier built in. Stream to it wirelessly, connect your passive XSCACE speakers, and you're done. No Xylem, no rack shelf, no wiring complexity.
Power (4Ω)
2×80W
Power (8Ω)
2×40W
Topology
Class D
Audio Quality
Hi-Res DAC.
A dedicated high-resolution DAC sits at the heart of the Air Amp. Bluetooth APTX-HD carries 24-bit audio wirelessly. Every stream — compressed or lossless — is decoded and amplified with the precision your speakers deserve.
Bit Depth
24-bit
BT Codec
APTX-HD
Formats
FLAC · ALAC

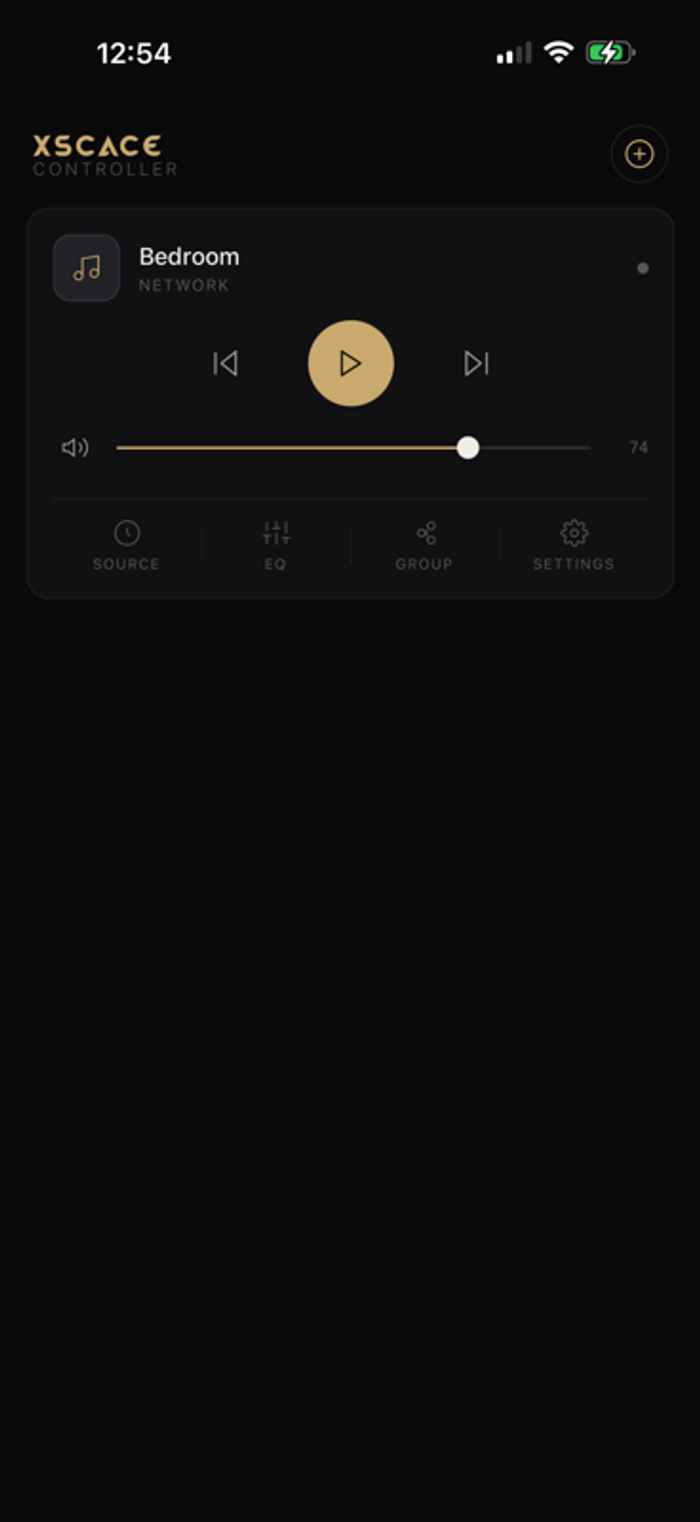

XSCACE App
Control from
anywhere.

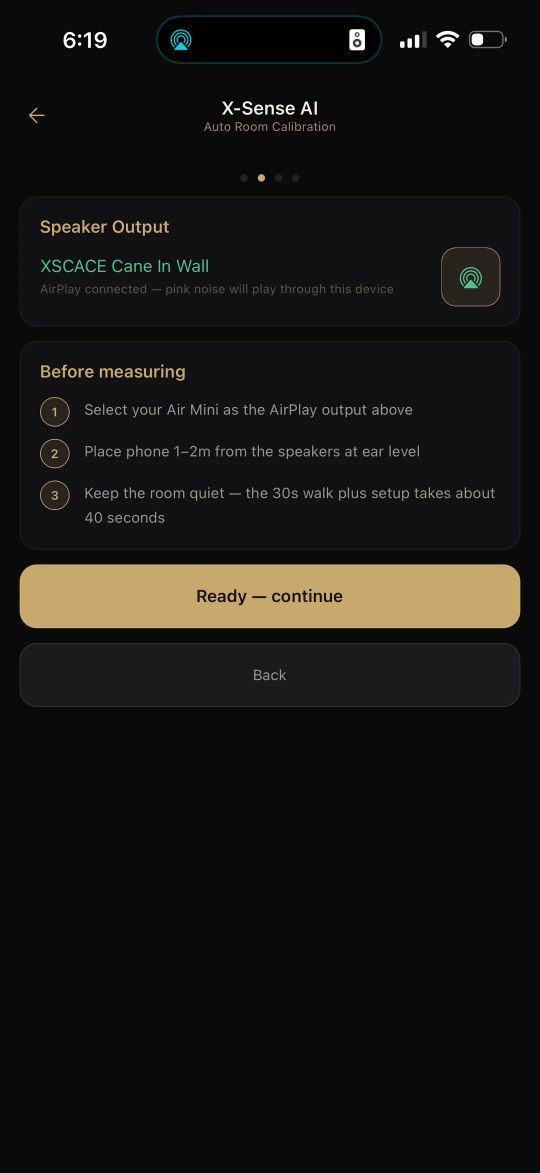

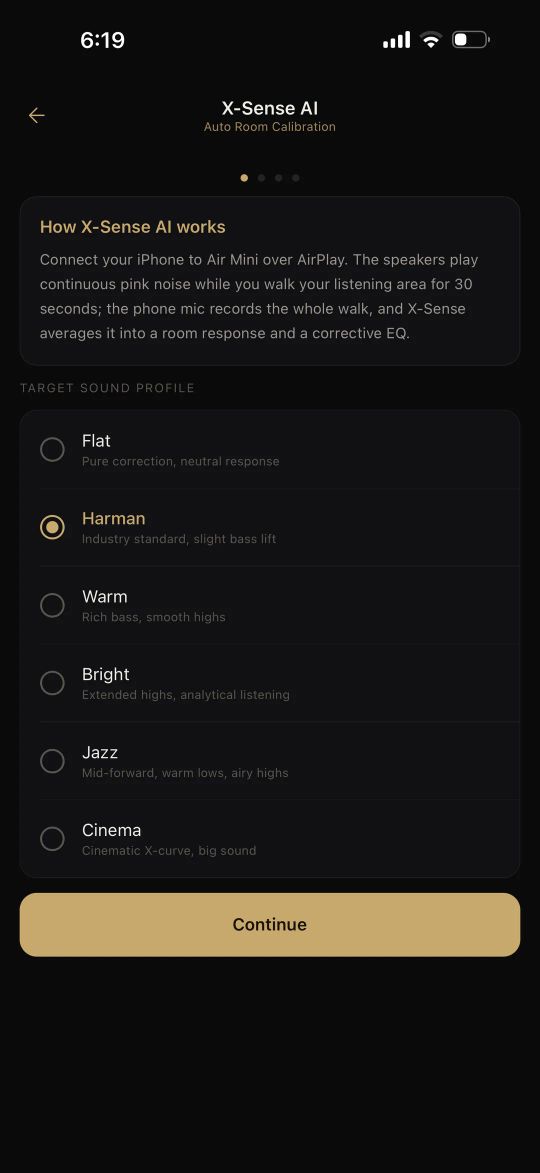

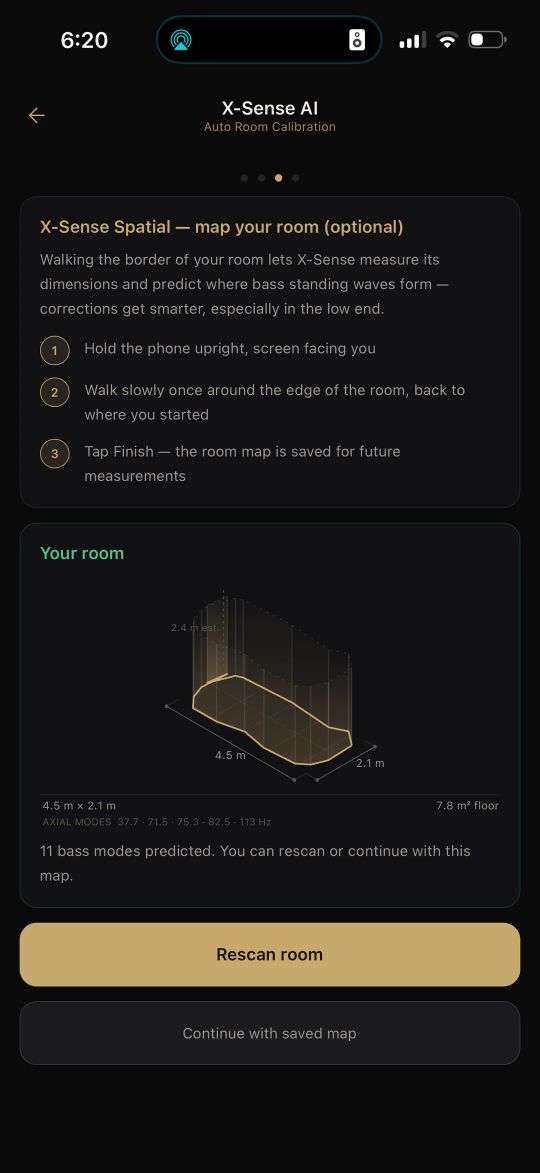

The XSCACE app gives you complete control over every Air Amp in your system. Switch sources, adjust volume, tweak EQ, and group rooms — all from your phone without being near the hardware.

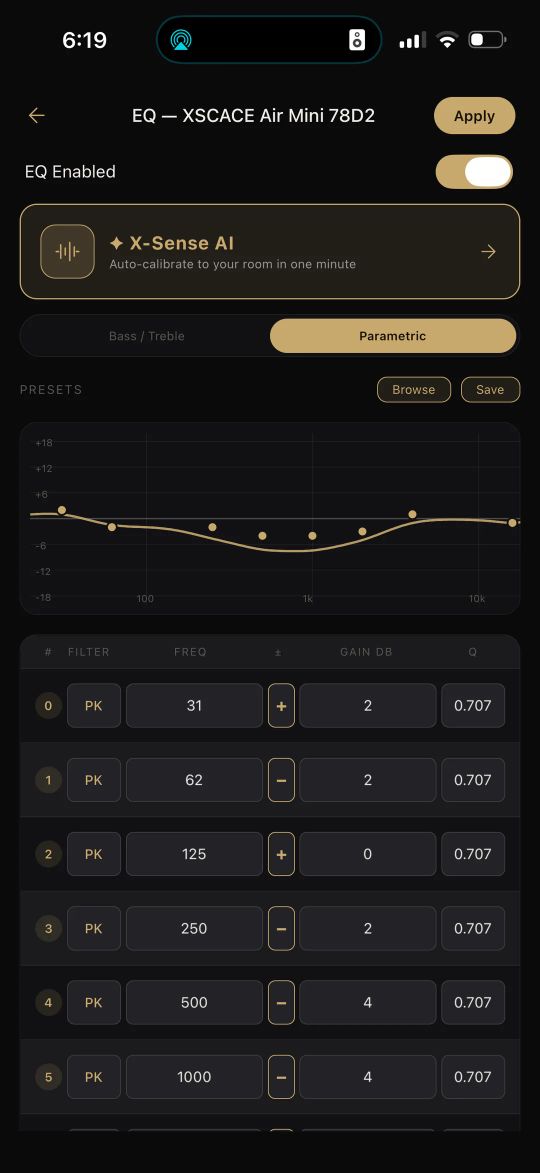

Parametric EQ
Tune the output to your speakers and room, from your phone.
Multi-Room Grouping
Group multiple Air Amps and play the same source across zones.
Source Switching
Switch between AirPlay, Bluetooth, Spotify, SPDIF, and RCA in one tap.
Home Automation
Works with any home automation software via Open API over IP.
Connectivity
Simple I/O.
Total flexibility.

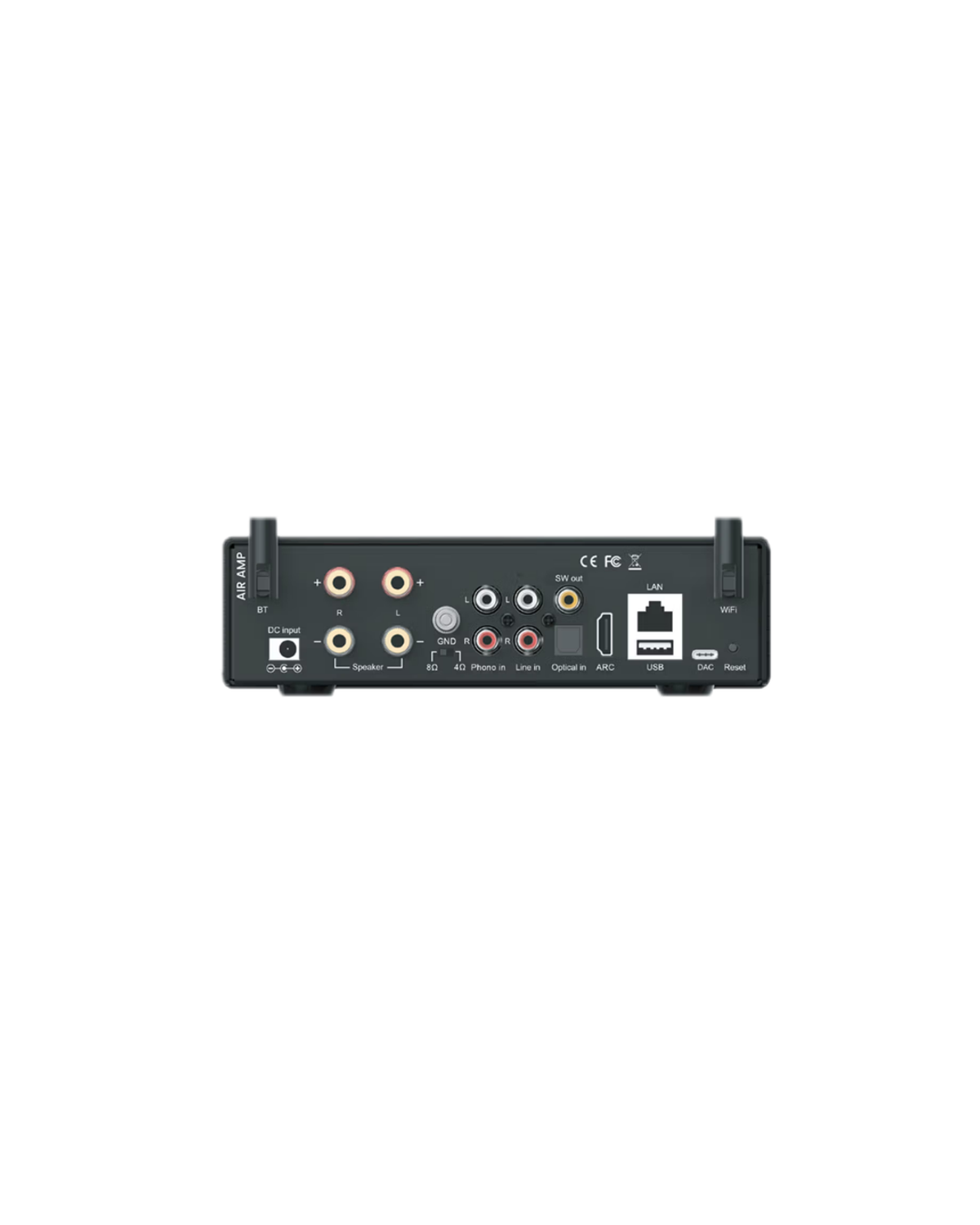

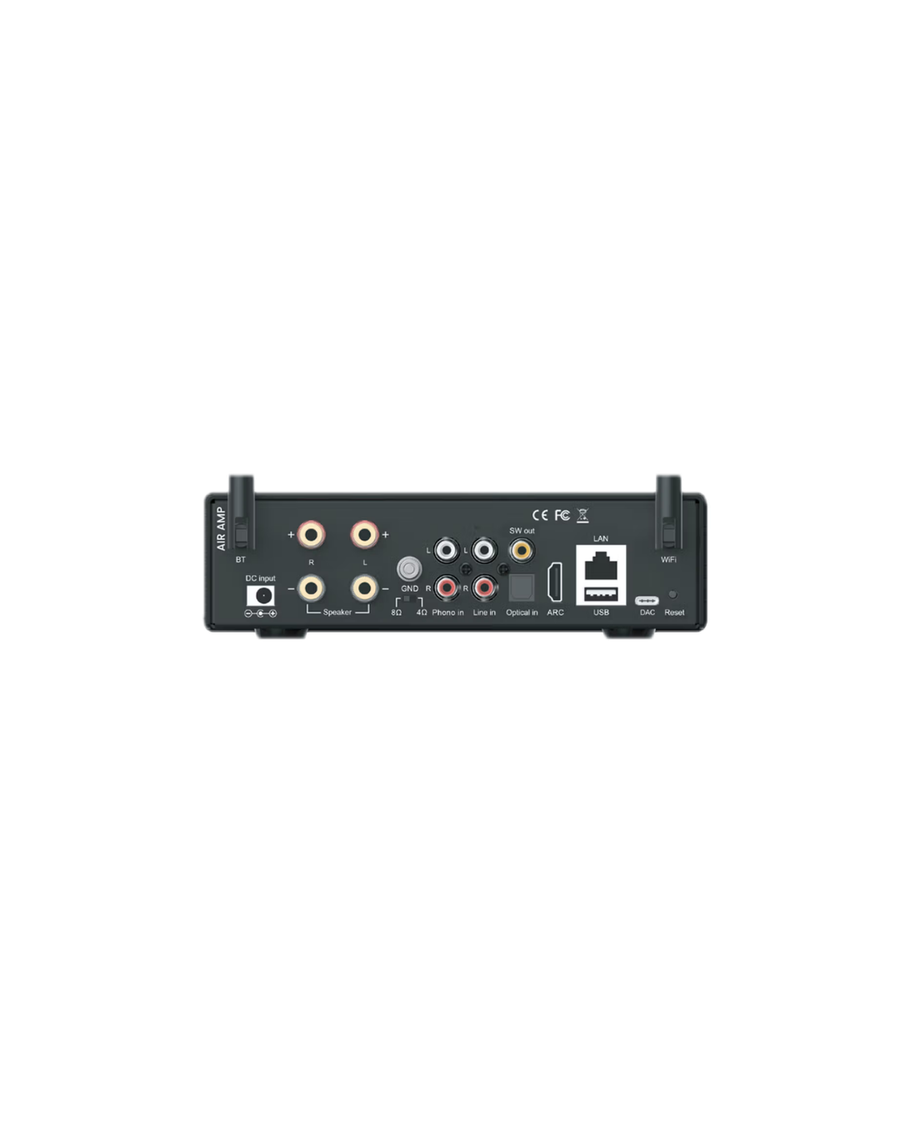

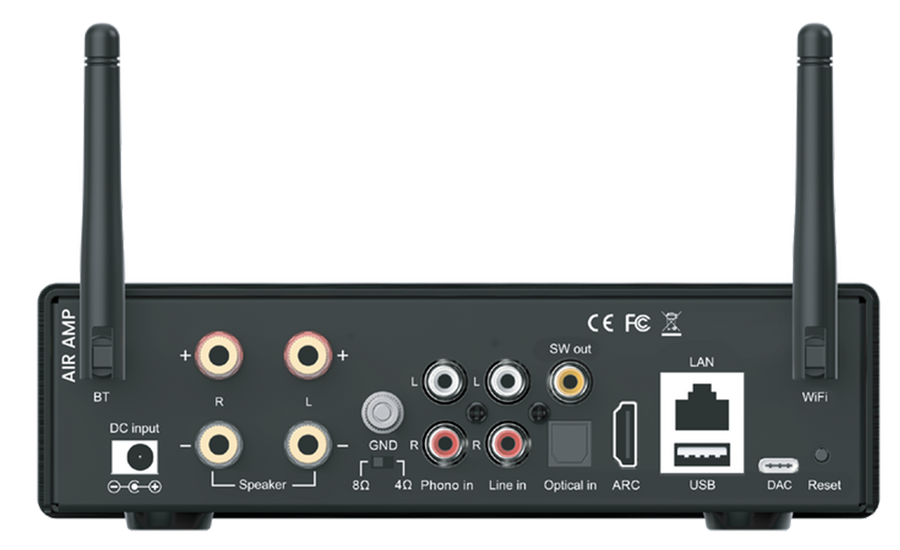

Inputs
RCA Stereo
Analogue input — turntable, CD player, line-level source
HDMI eARC
TV audio extraction via HDMI eARC — one cable from your TV
SPDIF Optical
Digital optical input — soundbars, TVs, legacy sources
USB
USB audio input — computer playback, direct digital
AirPlay 2
Apple device streaming · multi-room
Bluetooth 5.0 APTX-HD
24-bit near-lossless wireless
Spotify Connect
Direct streaming, no phone relay
DLNA · UPnP
Network media library — FLAC, ALAC
Ethernet (RJ45)
Wired network for stable, low-latency streaming
Air Amp
DAC + Class D
DAC + Class D
Outputs
Speaker Out (2×80W)
Drive passive XSCACE speakers directly — no external amp needed
Subwoofer Out
Dedicated sub output for XSCACE passive subwoofers
Wi-Fi 2.4GHz + 5GHz
Dual-band — 5GHz for speed, 2.4GHz for range
XSCACE App
iOS and Android — EQ, volume, source, grouping
Technical Specifications
15 parameters · scroll to explore
Power RMS
80W
fills a large living room
01 / 15
Electronics
Power RMS
80W
Total Power
160W
Channels
2
Amp Class
Class D
Impedance
8Ω
Physical
Dimensions
34.8 × 159.8 × 159.8 mm
Weight
0.9kg
Housing
Aluminium
Colours
Black
Power Type
Powered
Connectivity
Inputs
RCA, SPDIF Optical, USB, DAC, Airplay, Bluetooth, Spotify Connect, HDMI ARC
Outputs
Speaker Out (Powered), Subwoofer Out, Optional Line Out
Wireless
Wi-Fi 2.4GHz + 5GHz, RJ45 Ethernet, Bluetooth 5.0 APTX-HD
Streaming
Airplay 2, HDMI ARC, Bluetooth 5.0 APTX-HD, Spotify Connect, Pandora, Tidal, DLNA, UPnP
Rack Mount
0.5U (2× Air Amps per 1U rack bracket)
In Use
Common installations
The signal chain.
Air Amp streams wirelessly and drives your passive XSCACE speakers directly. No Xylem amplifier required — the amp is built in.
Source + DAC + Amp
Air Amp
2×80W · 192kHz
speaker cable
Output
Speakers
XSCACE passive
sub out (opt.)
Optional
Sub
passive subwoofer
AI System Builder
Don't see your setup?
Tell the AI your room, budget and use case — get a complete system in seconds.
Case Studies
Real installations.
Air Amp deployed in real client homes — see how it was specified, placed and paired.
Case Study
Case Study: QuadCane in a Fluted-Velvet Bedroom and Home Gym
How one property ran QuadCane in two very different rooms — a fluted taupe velvet primary bedroom and an oak-p…
Case Study
Case Study: Cane in a Formal Evening Sitting Room
How a formal sitting room got sound on a charcoal stone accent wall — XSCACE Cane in black finish, chosen to s…
Case Study
Case Study: Cane Across a Multi-Room Home Bar and Facade
How a home's bar room, exterior facade and interior walls all ran on one speaker line — XSCACE Cane across tra…
Case Study
Case Study: Cane on a Corten Steel and Stone Facade
How an exterior facade got sound across two contrasting materials — XSCACE Cane mounted on both weathered Cort…
Case Study
Case Study: Cane at a Private Lounge Glass-Door Entrance
How a private lounge entrance got sound on its oak door jamb — XSCACE Cane in champagne finish, positioned bes…
Case Study
Case Study: Cane on a Mirrored Restaurant Bar Ceiling
How a cocktail bar got sound from its mirrored ceiling — XSCACE Cane flush-mounted into mosaic-tiled glass pan…
Case Study
Case Study: Cane in a Private Dining Room
How a private dining room got warm, formal sound on woven fabric wall panels — XSCACE Cane chosen for a member…
Case Study
Case Study: Cane on an Outdoor Garden Feature Wall
How an outdoor garden wall got sound built into weathered wood fencing — XSCACE Cane in champagne finish, IP66…
Case Study
Case Study: Bonsai in a Speakeasy-Style Games Room
How a moody, speakeasy-style games room got sound on a fluted slat wall — XSCACE Bonsai in black finish, chose…
Case Study
Case Study: Bonsai in a Grand Marble Lift Lobby
How a grand marble lift lobby got ambient sound on fluted Calacatta-style pilasters — XSCACE Bonsai chosen for…
Case Study
Case Study: Bonsai in a Formal Living and Bar Lounge
How a formal living and bar lounge got ambient sound on a zebrawood pillar — XSCACE Bonsai chosen to sit quiet…
Case Study
Case Study: Bonsai Beside a Bookmatched Marble Dressing Room Wall
How a luxury dressing room got sound beside a bookmatched marble slab wall — XSCACE Bonsai on dark walnut ward…
Case Study
Case Study: Bonsai for an Outdoor Garden Event Space
How an outdoor event garden got discreet sound built into its landscaping — XSCACE Bonsai mounted on a carved …
Case Study
Case Study: Bonsai Built Into a Restaurant Bar and Open Kitchen
How a restaurant bar and open kitchen got even sound coverage without visible speakers — XSCACE Bonsai mounted…
Case Study
Case Study: Bonsai in a Fluted Wood Foyer
How a dramatic fluted-wood foyer got ambient sound without breaking its sculptural wall — XSCACE Bonsai mounte…
Case Study
Case Study: Bonsai Hidden in a Lacquered Walnut Wardrobe Wall
How a walk-in wardrobe got sound without a single visible speaker — XSCACE Bonsai mounted flush on high-gloss …
Case Study
Case Study: A 22×18ft Luxury Dining Room in 2.1 Stereo
How a 22x18ft dining room got immersive, wall-hidden sound: XSCACE Cane speakers, Air Amp and Acacia 10 subwoo…
Case Study
Case Study: Discreet Cinema Sound in a Master Bedroom
How a 16x14ft master bedroom got private, room-filling sound with speakers you can't see — XSCACE Bonsai, Air …
Case Study
Case Study: Sensorial Sound in a Luxe Vanity Space
How a 15x13ft powder room got sonic warmth and mood elevation from speakers mounted either side of the mirrors…
Case Study
Case Study: Formal Sound Coverage for a 25×20ft Hotel Lobby
How a 25x20ft hotel lobby got soft, immersive audio for formal hosting without disrupting classic architecture…
Case Study
Case Study: Discreetly Embedded Sound in a Lobby Area
How a 12x10ft lobby area got luxury ambient sound with speakers embedded directly into the wall panels — XSCAC…
Case Study
Case Study: Motivating Sound in a Home Workout Studio
How a 15x13ft home gym got crisp, motivating sound from a single speaker beside the treadmill — XSCACE Bonsai,…
Case Study
Case Study: Cinematic Sound in a Media Zone, Marble-Integrated
How a 14x12ft media zone got a visually clean TV wall with speakers embedded in marble paneling either side of…
Case Study
Case Study: Entertainment-Ready Sound in a Home Bar
How a 12x10ft home bar got immersive, high-fidelity sound without a single visible speaker — XSCACE Cane, Air …
Case Study
Case Study: A Contemporary Living Room Built Around Ghost
How a 16x18ft media room got rich surround-sound for movies and casual listening from speakers integrated flus…
Case Study
Case Study: Party-Level Immersive Audio in a Design Studio
How a 25x15ft design studio got party-level, immersive audio without disrupting its architectural niche — XSCA…
Case Study
Case Study: Room-Filling Sound in a Premium Living Lounge
How a premium living lounge got even, room-filling sound for every seat without a visible speaker cabinet — XS…
Gallery

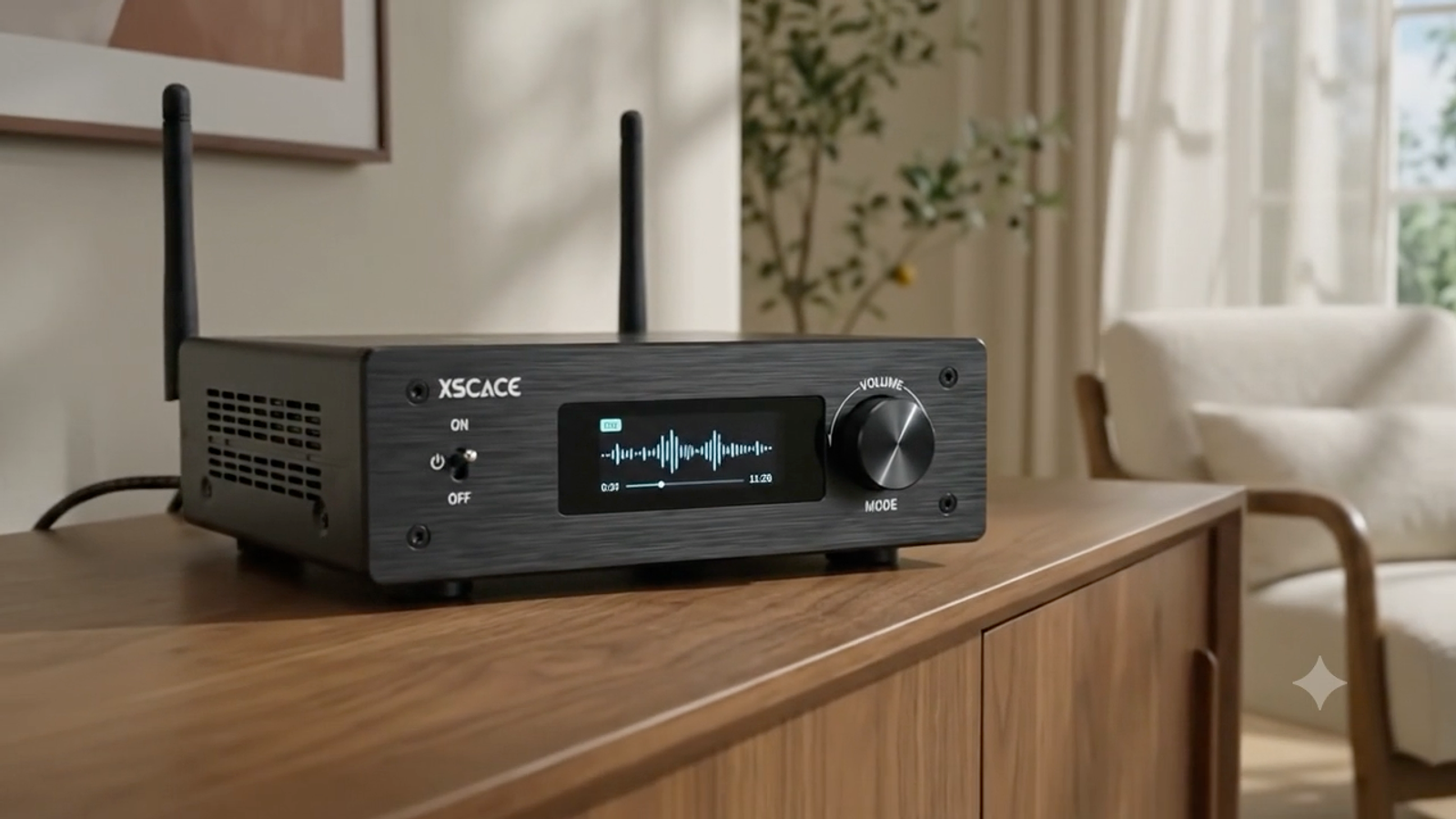

Air Amp in context
Scroll
Frequently Asked Questions
- What is the XSCACE Air Amp?
- The wireless amplifier of choice for luxury residential multi-room audio, boutique hotel room systems, and premium commercial audio installations in Canada, the UK, and India.
- What is the power output of the Air Amp?
- The Air Amp is rated at 80W RMS into 8Ω.
- What type of product is the Air Amp?
- The Air Amp is an amplifier product.
- How deep is the Air Amp?
- The Air Amp requires 159.8mm of depth.
