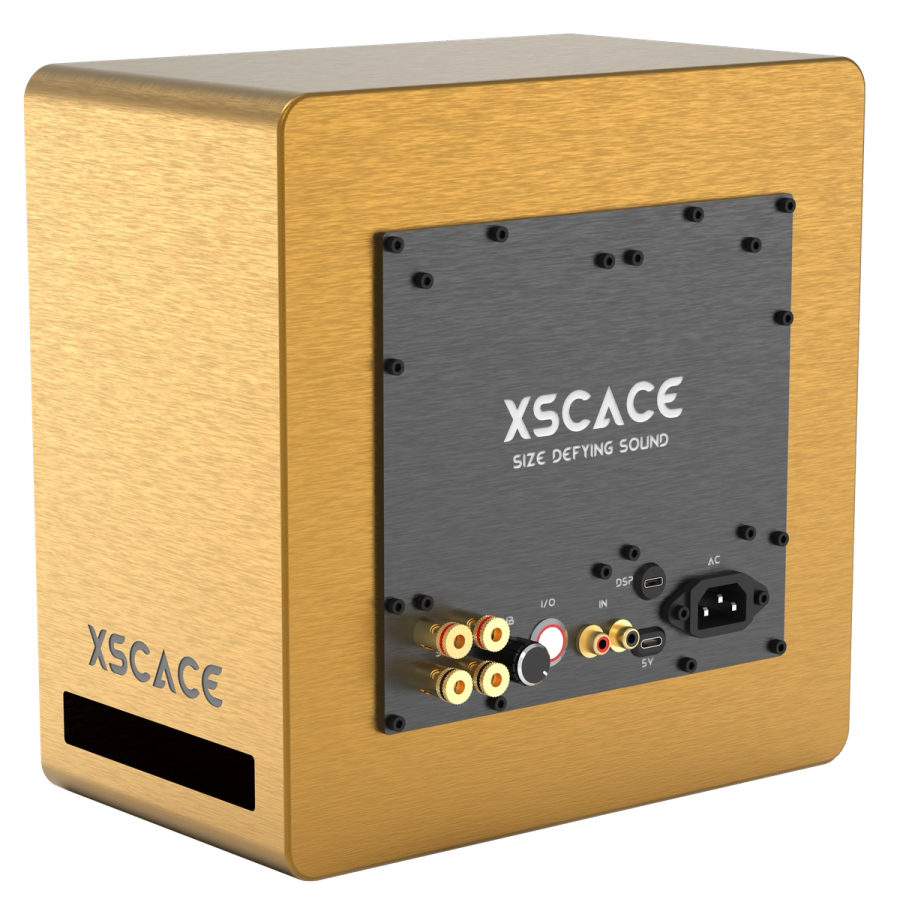

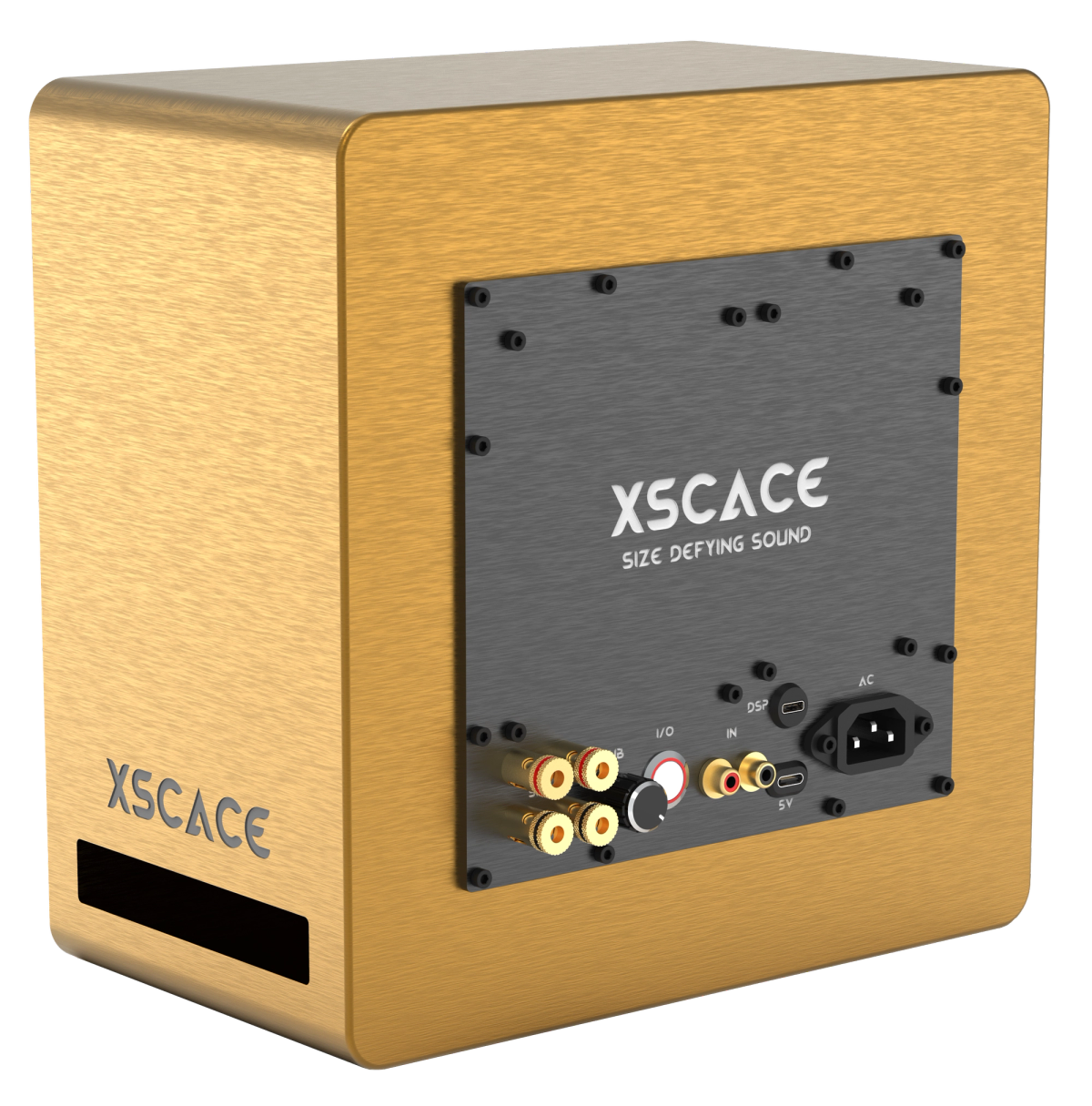

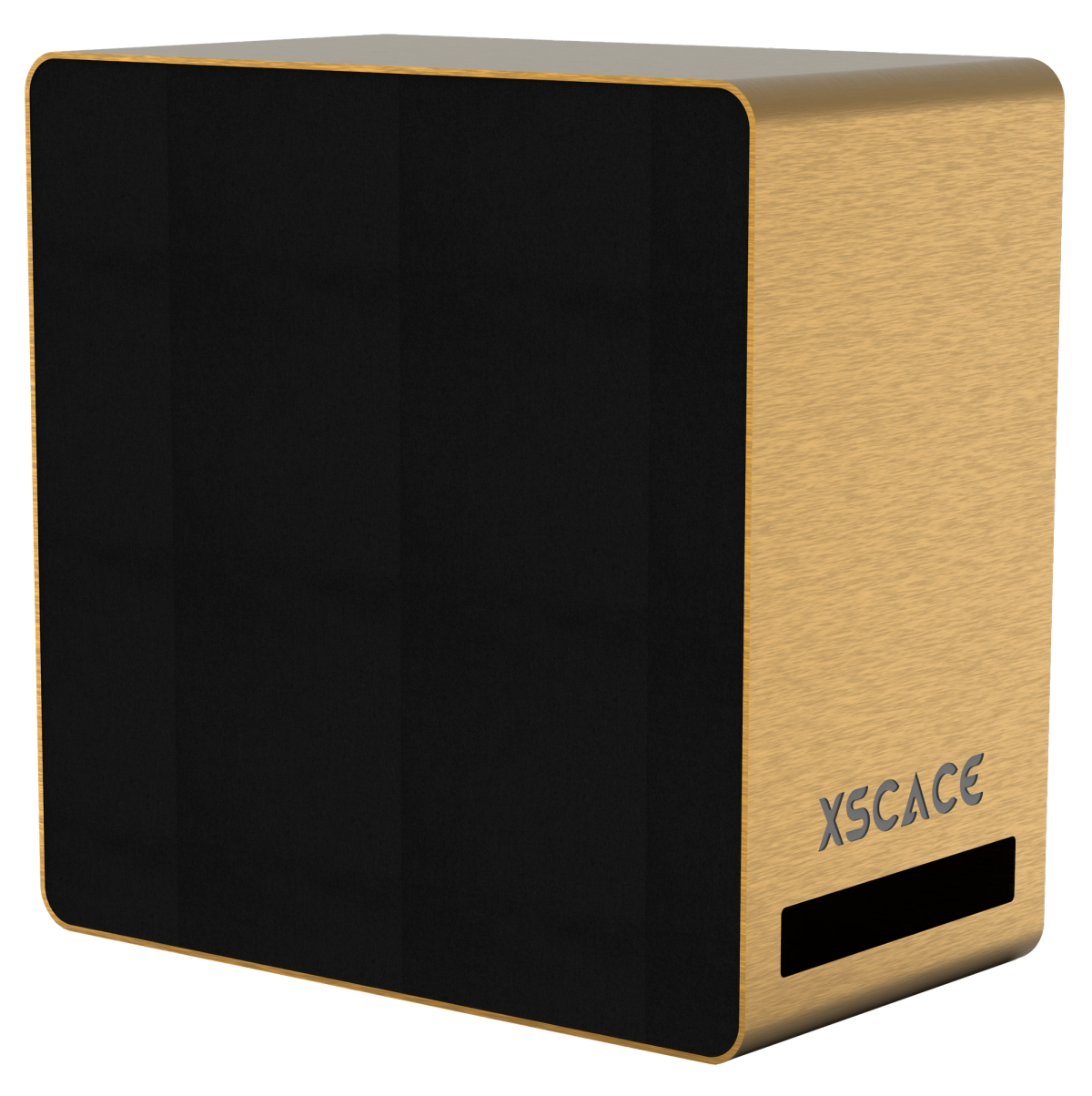

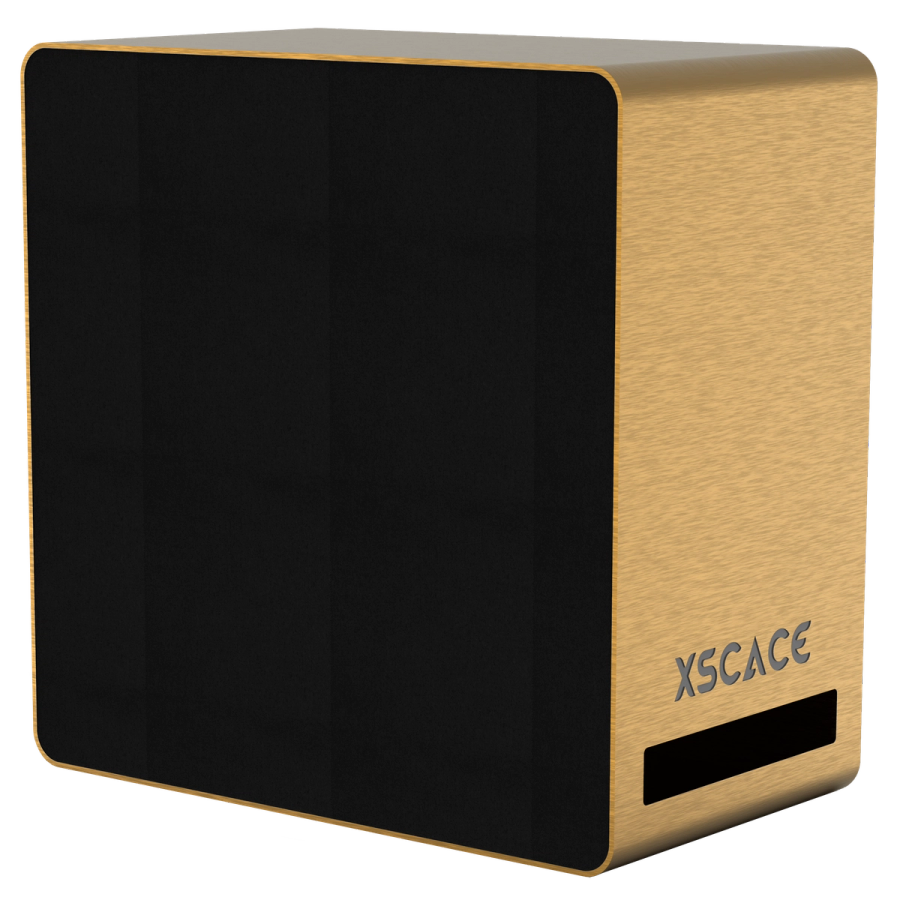

Acacia 6 Powered
Powered Subwoofer
Self-powered 6 inch subwoofer with built-in 200W amplifier, line input, speaker output, and LFE control.
XSW-ACA-6PWM
200W4Ω35Hz – 300HzPowered
Stainless SteelCustom RAL
Move cursor to illuminate
Design Philosophy
×
No port noiseXS-Flow port geometry eliminates turbulence at the vent exit. Full bass output at reference levels — no chuffing, no compression, no audible artefact.
×
No external amplifier
×
No crossover guesswork
×
No visible driver
→
Bass that disappears.
01 / 05
Technical Specifications
15 parameters · scroll to explore
Power RMS
200W
fills a large living room
01 / 15
Acoustic
Power RMS
200W
Impedance
4Ω
Sensitivity
84dB
Frequency
35Hz – 300Hz
Driver
1 × 6"
Physical
Dimensions
266.7 × 266.7 × 177.3 mm
Weight
9.5kg
Housing
Birch Wood / MDF / Aluminium
Colours
Stainless Steel
Custom RAL
Available
Power Type
Powered
Crossover
Subwoofer LP only
Connectivity
Inputs
Line In (RCA), LAN (Network Control)
Outputs
2Ch Speaker Out, 5V Out
Control
Network API
Acoustic Measurements
Frequency Response & Directivity
Frequency ResponseSubwoofer range
On-axis · 1W/1m · 35Hz – 300Hz ±3dB · 84 dB sensitivity
Rear Panel
Connections
IN
Line In (RCA), LAN (Network Control)
OUT
2Ch Speaker Out, 5V Out
Proprietary Technology
Built different. By design.

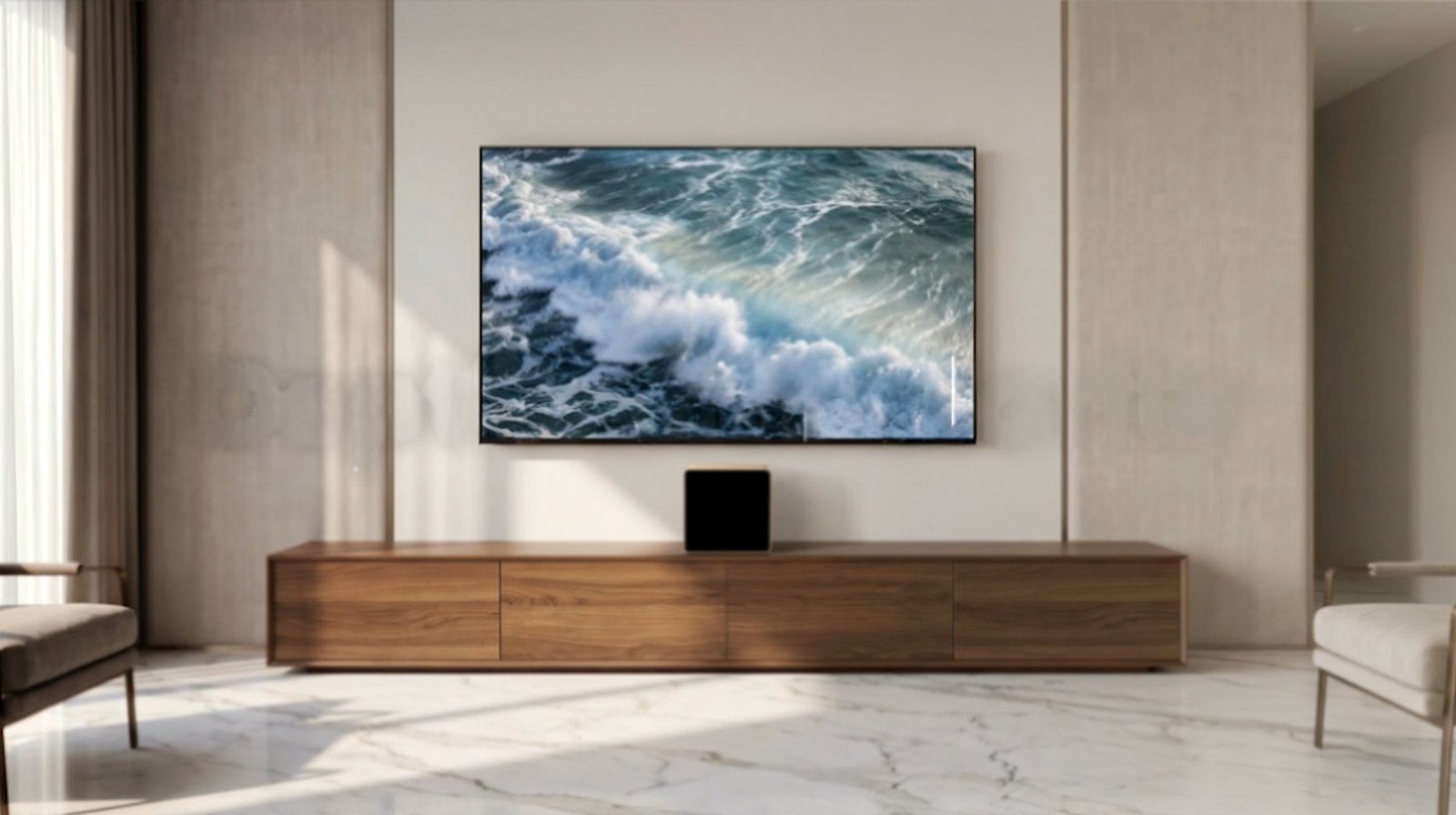

In Use
Common installations
AI System Builder
Don't see your setup?
Tell the AI your room, budget and use case — get a complete system in seconds.
Also available in
Product
In Use

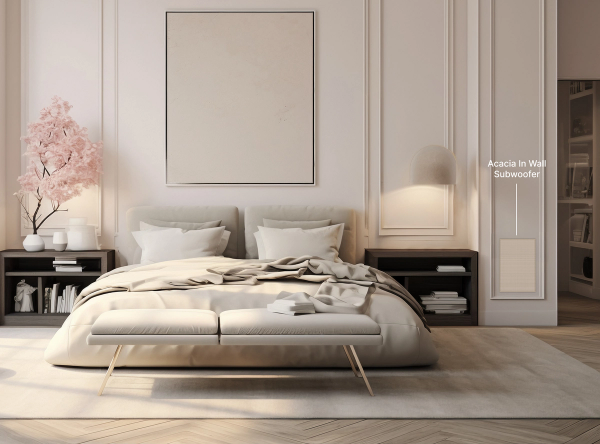

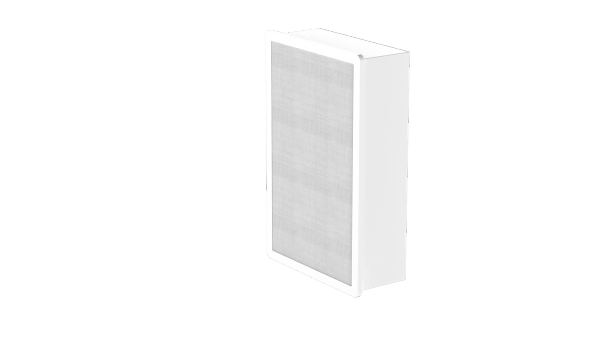

In-Wall Passive
Acacia 6 In-Wall Passive
Identical acoustic performance installed flush into the wall cavity. Completely invisible. Requires an external amplifier with LFE output.
View Acacia 6 In-Wall →
Product
In Use

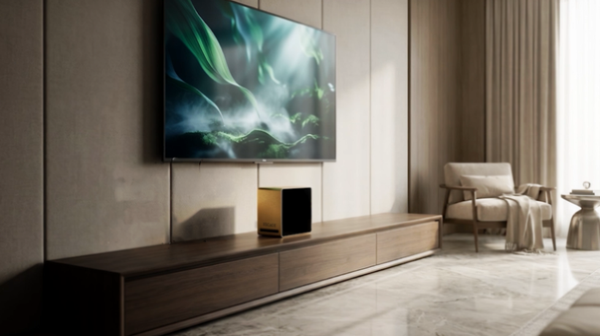

Standard Passive
Acacia 6 Standard Passive
Same enclosure and driver, without the built-in amplifier. Pair with any subwoofer output for a fully custom signal chain.
View Acacia 6 Passive →Full DSP Control · Over LAN

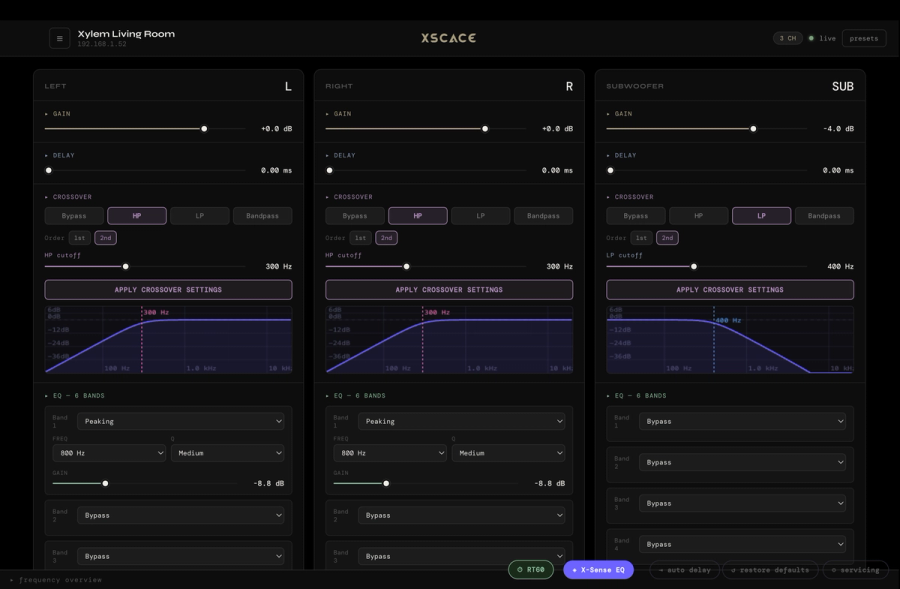

Controlled by XSCACE
Network Controller
Connect to the Acacia 6 Powered over your local network. Adjust the built-in DSP in real time — crossover frequency, parametric EQ, output delay, and channel routing — without touching the hardware.
×Parametric EQ — 5 bands per channel
×Variable crossover · 40–200Hz
×Channel delay · up to 27ms
×Factory + custom preset management
×Real-time level monitoring
Open Integration · TCP/IP API
Works with any control system
The Acacia 6 Powered exposes a full TCP/IP command API. Any IP-capable control system integrates natively — no middleware, no adapters.
Control4
Crestron
Savant
AMX
RTI
Josh.ai
+ more
Technical Documents
Downloads
Gallery

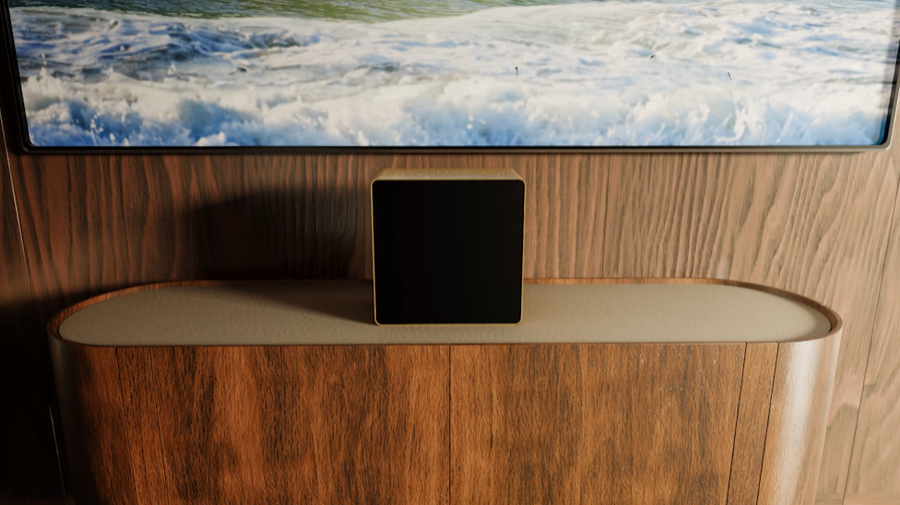

Acacia 6 Powered in context
