What is the XSCACE Xylem 2?

The integrator's choice for stereo architectural audio systems in luxury residential and commercial installations across Canada, the UK, and India requiring precise DSP control.

What is the power output of the Xylem 2?

The Xylem 2 is rated at 400W RMS into 8Ω.

What type of product is the Xylem 2?

The Xylem 2 is an amplifier product.

How deep is the Xylem 2?

The Xylem 2 requires 324.9mm of depth.

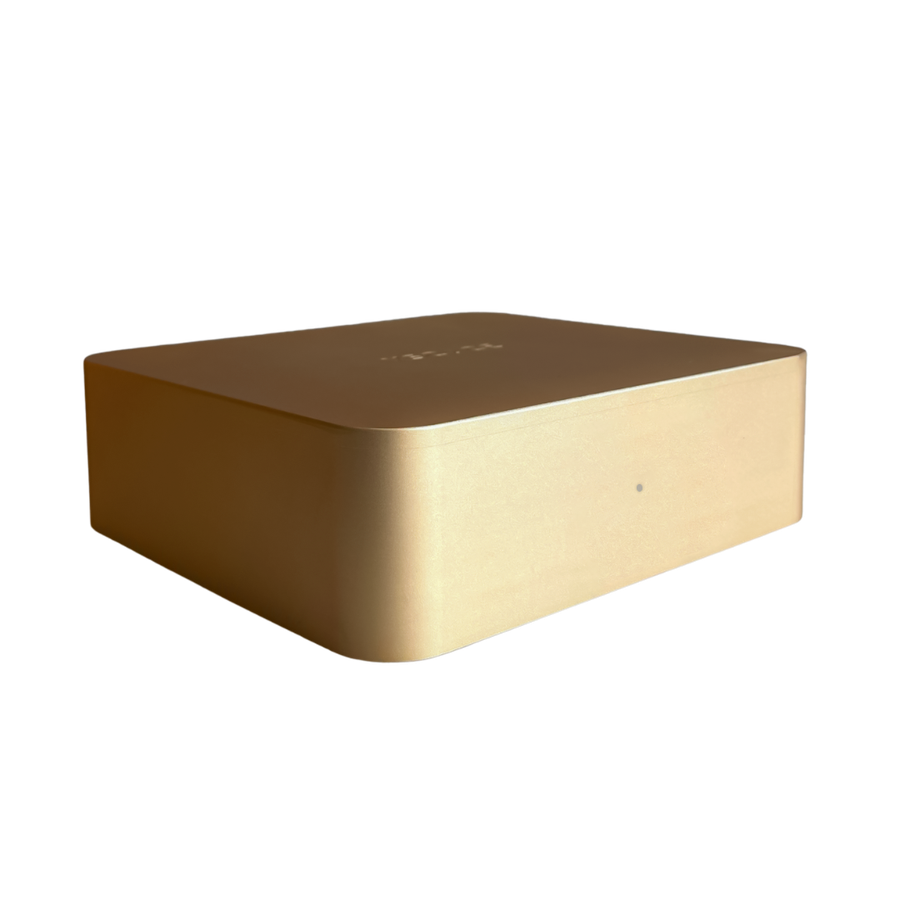

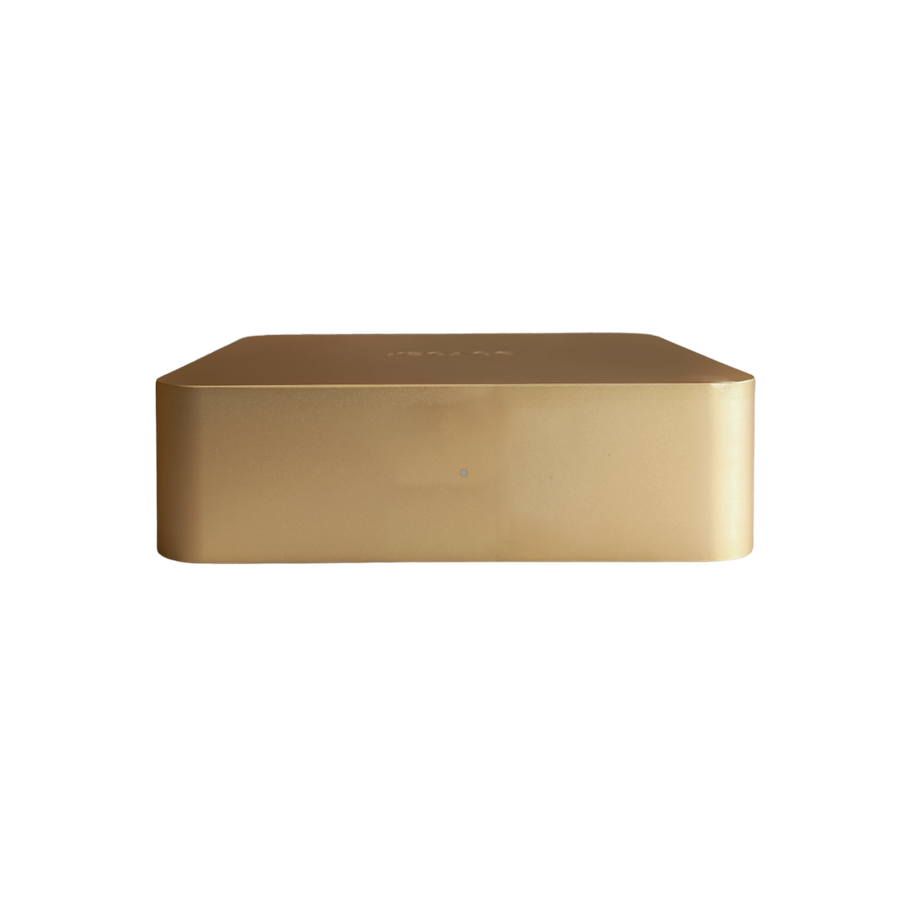

Xylem 2

Name: Xylem 2 DSP Amplifier
Brand: XSCACE

2-Channel DSP Amplifier

2×200W at 8 ohms. Ideal for high-output L/R speakers or demanding subwoofers. Optional SigmaStudio DSP, champagne chassis.

XAM-DSP-XLM2

400W8ΩPowered

Champagne

Add to System →Brochure

Move cursor to illuminate

Design Philosophy

No rack requiredThe Xylem 2 mounts behind a screen, inside a cabinet, or within a wall box. No separate rack space, no ventilation cutouts, no visible hardware in the room.

No passive crossover

No configuration drift

No signal degradation

→

Every parameter. Recalled.

01 / 05

SigmaDSP · ADAU1701 · PsySculpt™

Inside the Xylem

Every parameter is executed in real time by a dedicated DSP chip and shaped by XSCACE proprietary psychoacoustic processing. No approximations. No look-up tables.

ADAU1701 DSP IC

CLASS D OUTPUT STAGE

SIGMADSP · ANALOG DEVICES

ADAU1701

28/56-bit audio processor running at 50 MIPS. Executes all crossover calculations, parametric EQ biquad filters, and per-channel delay compensation in the digital domain — with onboard program storage that survives any power event.

50 MIPS28/56-bit8× BiquadNon-volatile

XSCACE PROPRIETARY

PsySculpt™

PSYCHOACOUSTIC PROCESSING

Psychoacoustic tuning applied at the driver and crossover level — shaping the listening experience to how the human ear naturally perceives space, depth, and dimensionality. Runs as a processing layer on top of the ADAU1701, calibrated per speaker profile.

Learn more →

SIGNAL PATH · LIVE

INPUT

Analog / Hi-Level

ADC

24-bit · 96kHz

ADAU1701

SigmaDSP · 50 MIPS

PsySculpt™

Psychoacoustic

DAC

Per Channel

Class D

400W Total

OUTPUT

Speaker / LFE

400W Total · Class D

Channel power distribution

2 × 200W @ 8Ω — 400W total

CH

PWR

Function

CH 1

200W8Ω

Full Range — L

EQDELAYXOVER

CH 2

200W8Ω

Full Range — R

EQDELAYXOVER

TOTAL OUTPUT400W

Technical Specifications

18 parameters · scroll to explore

Power RMS

400W

fills a large living room

01 / 18

Electronics

Power RMS

400W

Total Power

400W

Channels

Amp Class

Class D

Impedance

8Ω

Physical

Dimensions

482.9 × 43.9 × 324.9 mm

Weight

1.7kg

Housing

CNC-machined Aluminium

Colours

Champagne

Power Type

Powered

THD+N

<0.1% @ 1KHz, 1W, 8Ω

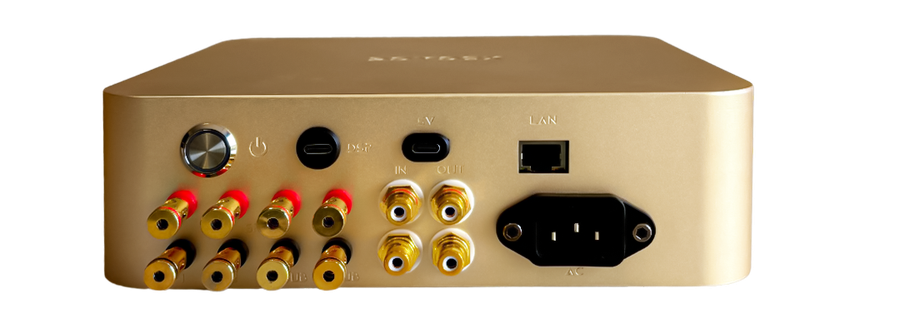

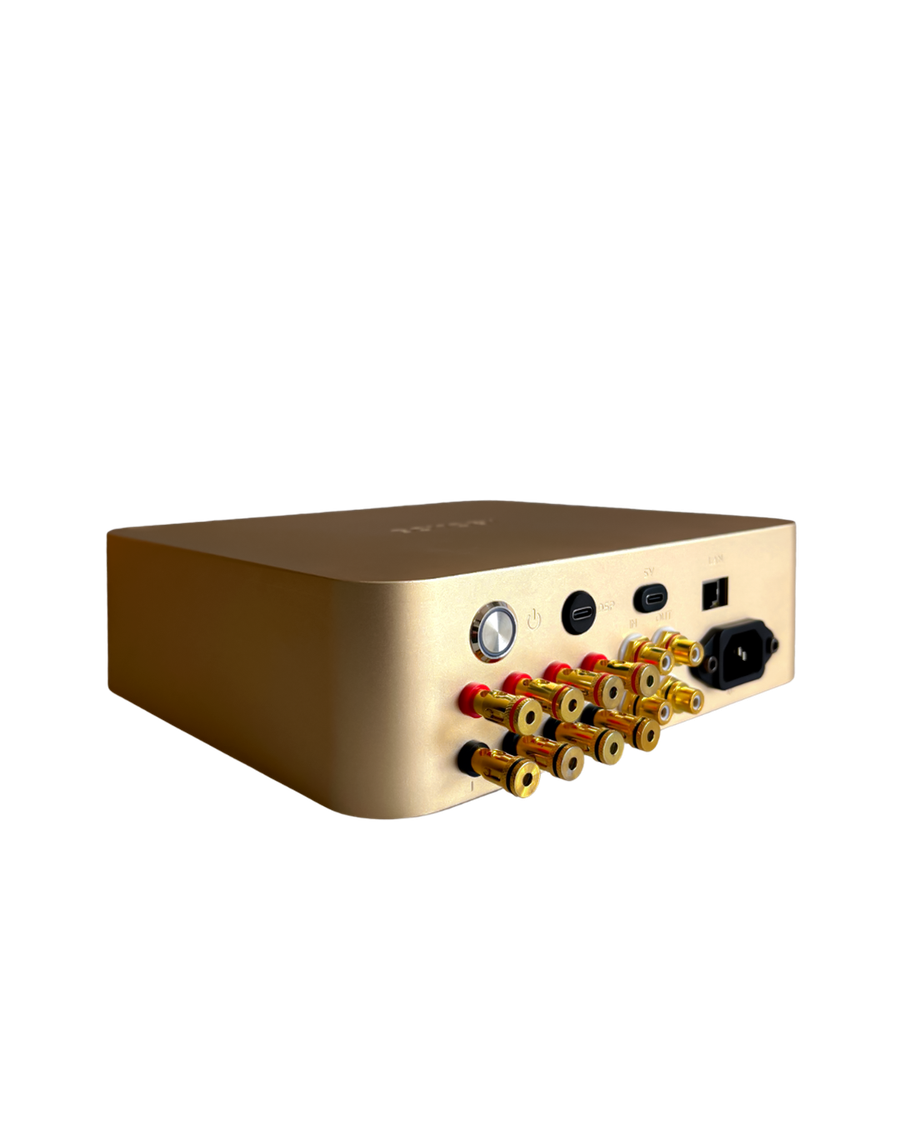

Connectivity

Inputs

Line In, High Level Speaker Input

Outputs

Line Out, DSP Port (optional), High Level Speaker Output, 5V Output

DSP

48KHz, 48-bit Fixed-Point DSP, SigmaStudio programmable

THD+N

<0.1% @ 1KHz, 1W, 8Ω

SNR

>109dB @ 1KHz

Protection

Short, DCP, OVP, UVP, OCP, OTP

Rack Mount

Proprietary Technology

Built different. By design.

Full Technology Story

In Use

Common installations

2.1 Music Setup · 2× QuadCane · 1× Juniper · Air Mini

AI System Builder

Don't see your setup?

Tell the AI your room, budget and use case — get a complete system in seconds.

Install Guide ↓Build My System →

Accessories

Mount it your way

mount

Rack Mount Kit

1U rack mount bracket for Air Amp, Xylem, and Air Mini

Format1U 19"

MaterialSteel

FinishMatte Black

IncludesBrackets + M6 screws + blanking panels

XSA-MNT-RCK

Enquire about this accessory →

Gallery

Xylem 2 in context

Scroll

Frequently Asked Questions

What is the XSCACE Xylem 2?: The integrator's choice for stereo architectural audio systems in luxury residential and commercial installations across Canada, the UK, and India requiring precise DSP control.
What is the power output of the Xylem 2?: The Xylem 2 is rated at 400W RMS into 8Ω.
What type of product is the Xylem 2?: The Xylem 2 is an amplifier product.
How deep is the Xylem 2?: The Xylem 2 requires 324.9mm of depth.
