Products·Amplifiers & Streamers·Amplifier Series

Air Mini

Compact Wireless Streamer

Ultra-compact wireless streaming amplifier. AirPlay 2, Bluetooth 5.0 APTX-HD, Spotify Connect. No internal amplifier — pure streaming preamp.

XAM-AIR-MINI
Powered
Black
AirPlay 2BT 5.0 APTX-HDSpotify ConnectWi-Fi 2.4 + 5GHzDLNA · UPnPHDMI eARCMulti-Room
Add to System →Brochure

Pricing is quoted by your regional distributor. Find yours →

3D · Drag to rotate
05
Streaming options

AirPlay 2, Bluetooth 5.0 APTX-HD, Spotify Connect, DLNA/UPnP, and RCA analogue — five distinct inputs, all active simultaneously.

AirPlay 2BT APTX-HDSpotifyDLNA
01
App control

Full system control from the XSCACE app — source switching, parametric EQ, volume, and multi-room grouping. Works with any home automation system via Open API over IP.

XSCACE AppOpen APIMulti-Room
24
Hi-Res DAC

Onboard 192kHz / 24-bit DAC. Bluetooth APTX-HD carries 24-bit audio wirelessly. Every stream is converted and output with full precision.

192kHz / 24-bitAPTX-HDBit-Perfect
Audio Quality

Hi-Res DAC.

A dedicated high-resolution DAC sits at the heart of the Air Mini. Bluetooth APTX-HD carries 24-bit audio wirelessly. Every stream — compressed or lossless — is decoded and output with the precision your speakers deserve.

Bit Depth
24-bit
BT Codec
APTX-HD
Formats
FLAC · ALAC
DIGITAL INANALOGUE OUTDAC
9:41
XSCACE
Air Mini
Ólafur Arnalds
Near Light · re:member
2:145:42
AirPlay
BT
Spotify
Network
XSCACE App

Control from
anywhere.

The XSCACE app gives you complete control over every Air Mini in your system. Switch sources, adjust volume, tweak EQ, and group rooms — all from your phone without being near the hardware.

Parametric EQ
Tune the output to your speakers and room, from your phone.
Multi-Room Grouping
Group multiple Air Minis and play the same source across zones.
Source Switching
Switch between AirPlay, Bluetooth, Spotify, and RCA in one tap.
Home Automation
Works with any home automation software via Open API over IP.
Connectivity

Simple I/O.
Total flexibility.

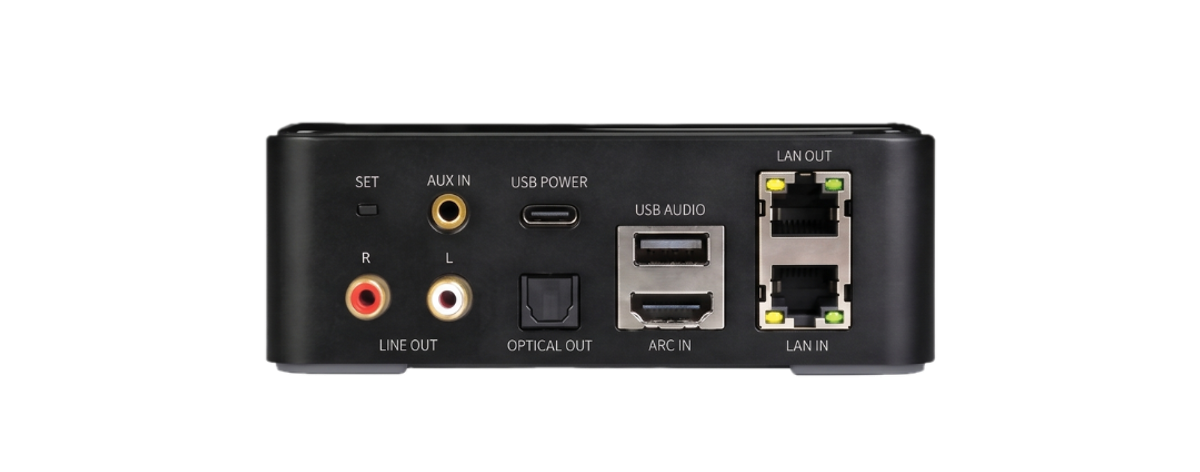

Air Mini I/O
Inputs
RCA Stereo
Analogue input — turntable, CD player, line-level source
HDMI eARC
TV audio extraction via HDMI eARC — one cable from your TV
AirPlay 2
Apple device streaming · multi-room
Bluetooth 5.0 APTX-HD
24-bit near-lossless wireless
Spotify Connect
Direct streaming, no phone relay
DLNA · UPnP
Network media library — FLAC, ALAC
DAC192kHz / 24-bitHi-Res
Air Mini
Hi-Res DAC
Outputs
Speaker Out (Powered)
Drive passive XSCACE speakers directly — no external amp needed
Wi-Fi 2.4GHz + 5GHz
Dual-band — 5GHz for speed, 2.4GHz for range
XSCACE App
iOS and Android — EQ, volume, source, grouping
Contents5 sections

Technical Specifications

9 parameters · scroll to explore
Dimensions
28 × 130 × 130 mm
01 / 09
Physical
Dimensions
28 × 130 × 130 mm
Weight
0.6kg
Housing
Aluminium
Colours
Black
Power Type
Powered
Connectivity
Inputs
RCA, Airplay, Bluetooth, Spotify Connect
Outputs
Speaker Out (Powered)
Wireless
Wi-Fi 2.4GHz + 5GHz, Bluetooth 5.0 APTX-HD
Streaming
Airplay 2, Bluetooth 5.0 APTX-HD, Spotify Connect, DLNA, UPnP
Pairs With

Built to work together

Isometric studio shot of the compact XSCACE Air Amp multiroom streaming audio amplifier, engineered for custom architectural audio systems.
Amplifier Series
Air Amp
80W · 8Ω
The XSCACE Xylem 4 four-channel DSP amplifier in champagne gold, on a wooden console beneath framed artwork — 400W across four channels
Xylem Series
Xylem 4
400W · 8Ω
Close-up detail of the XSCACE Cane SlimArray column speaker in a luxury champagne finish, showcasing its precise micro-perforated grill pattern and minimalist design flush-mounted to a rich wood wall panel.
Slim Array Series
Cane
50W · 8Ω · 92dB
A modern contemporary living room setup highlighting two black XSCACE Cedar speakers vertically integrated into natural wood paneling behind a plush beige sofa set.
Slim Array Series
Cedar
100W · 4Ω · 96dB
An XSCACE Ghost 2.0 slim in-ceiling speaker recessed flush into a white plaster ceiling, its narrow rectangular grille sitting almost level with the surface above a textured concrete wall
Slim Array Series
Ghost 2.0
80W · 4Ω · 92dB
In Use

Common installations

The signal chain.

Air Mini streams wirelessly and outputs to the Xylem amplifier over a single cable. The Xylem distributes power and signal to your XSCACE speakers — passive drivers, no extra wiring.

Source + DAC
Air Mini
192kHz / 24-bit
line out
Amplifier
Xylem
DSP amplifier
speaker cable
Output
Speakers
XSCACE passive
AI System Builder
Don't see your setup?
Tell the AI your room, budget and use case — get a complete system in seconds.
Install Guide ↓Build My System →
Case Studies

Real installations.

Air Mini deployed in real client homes — see how it was specified, placed and paired.

How Do In-Ceiling Speakers Get Power?
Case Study
How Do In-Ceiling Speakers Get Power?
No socket in the ceiling, no switch, no plug — passive speakers take an amplified signal down two conductors. …
Case Study: A Library Sound System in a Clubhouse Book Cafe
Case Study
Case Study: A Library Sound System in a Clubhouse Book Cafe
A reading room of oak shelving, plaster piers and pool-terrace glazing — covered by the smallest speaker XSCAC…
How Every XSCACE Installation Is Wired, Controlled and Calibrated
Case Study
How Every XSCACE Installation Is Wired, Controlled and Calibrated
Two signal chains, three stages, and the reasoning behind each: how an XSCACE system goes from a traced floor …
Case Study: A Commercial Gym Sound System in a Fully Glazed Clubhouse
Case Study
Case Study: A Commercial Gym Sound System in a Fully Glazed Clubhouse
A clubhouse gym glazed on three sides, floored in timber and free of soft furnishing — covered with distribute…
A Protocol Success Is Not a Sound
Case Study
A Protocol Success Is Not a Sound
Licensed receivers accept a stream, report success, and play nothing. A compatibility study, the platform limi…
Your Wireless Speaker Is Lying to You About Time
Case Study
Your Wireless Speaker Is Lying to You About Time
A wireless receiver's clock does not hold still. Six measurement architectures, each killed by a specific benc…
XSCACE Controller: Every Feature in the App, Explained
Case Study
XSCACE Controller: Every Feature in the App, Explained
Every feature in the XSCACE Controller app for Air Amp and Air Mini: X-Sense AI calibration, six sound profile…
Air Mini — Launched and Back in Stock
Case Study
Air Mini — Launched and Back in Stock
The Air Mini streaming amplifier is officially launched and available. Compact, powerful, and fully compatible…

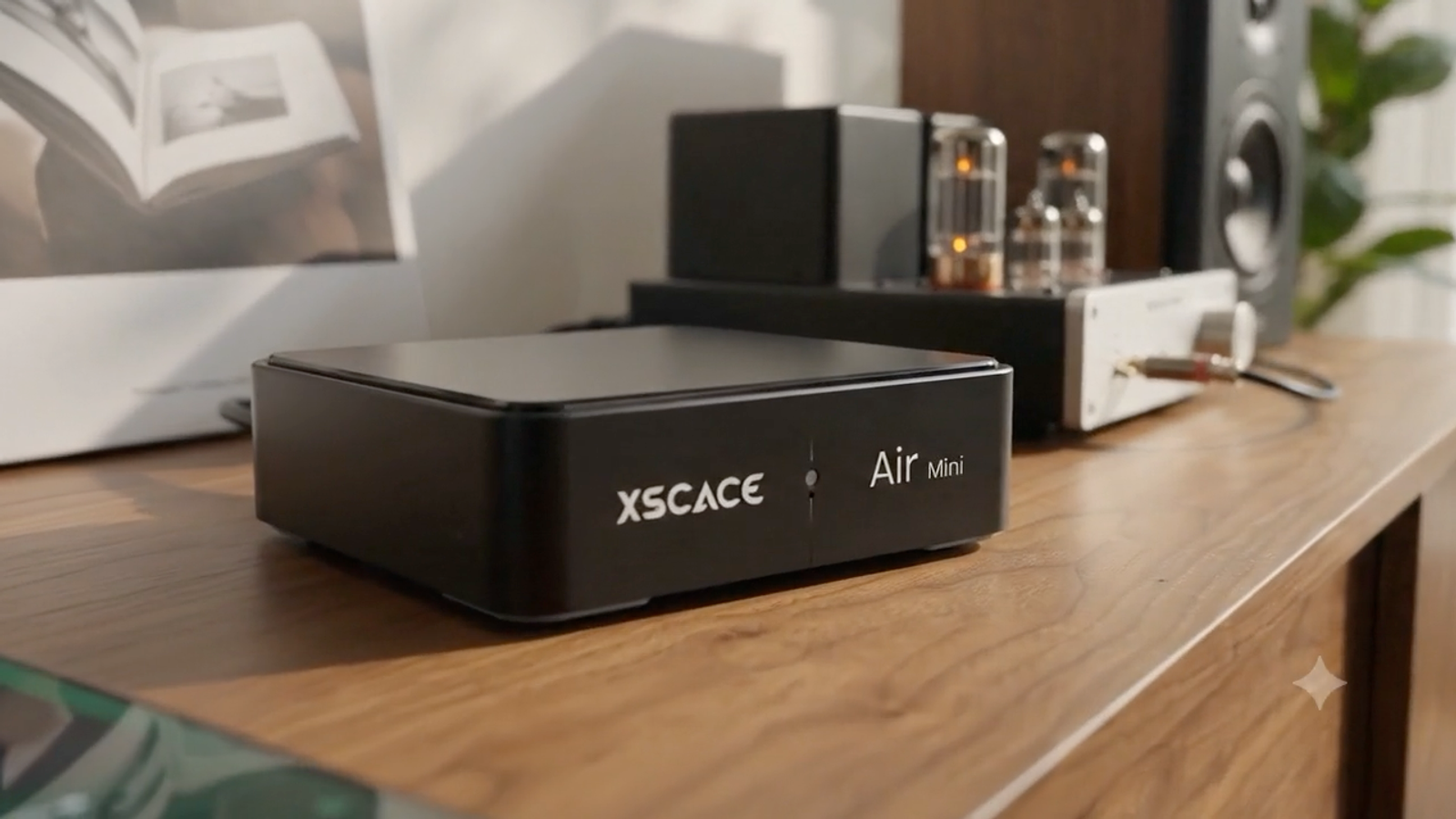

Gallery

Air Mini in context

Scroll

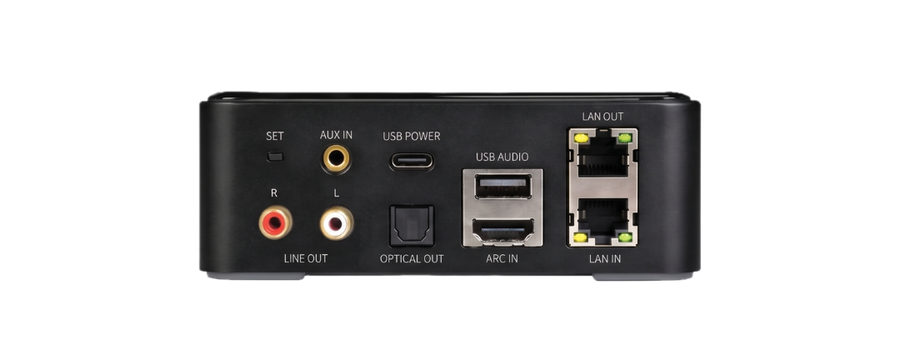

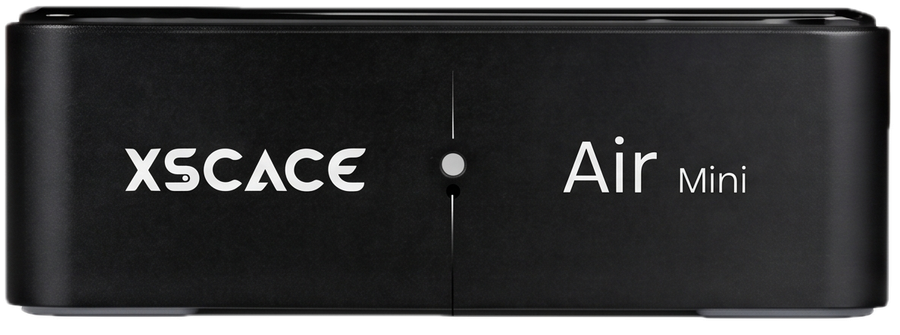

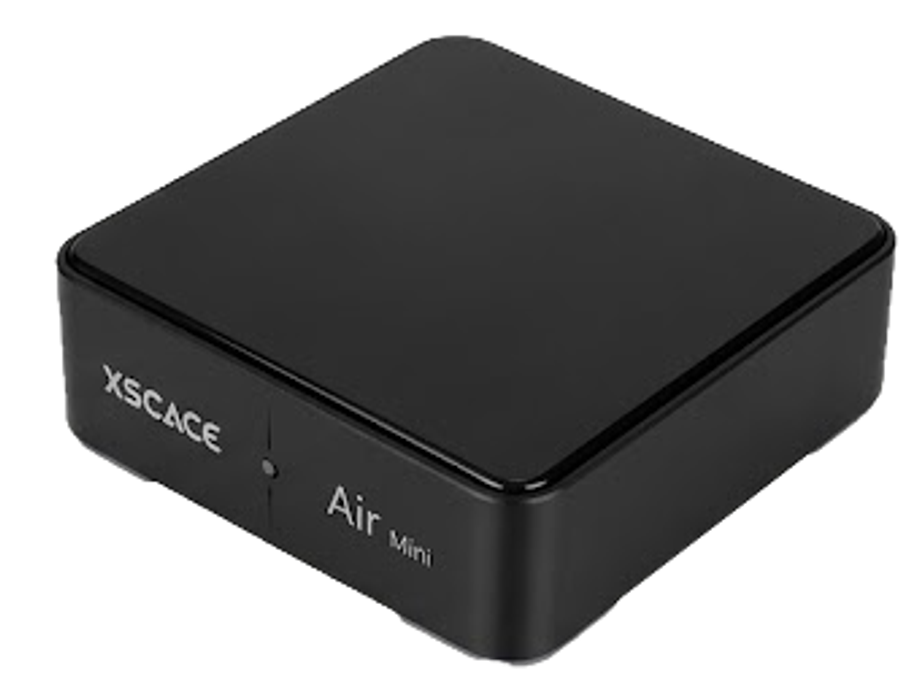

Air Mini 1
Air Mini 2
Air Mini 3
Frequently Asked Questions
What is the XSCACE Air Mini?
Specified as the streaming source in luxury residential multi-room systems, boutique hotel audio, and commercial installations in Canada, the UK, and India built around existing amplification.
What type of product is the Air Mini?
The Air Mini is an amplifier product.
How deep is the Air Mini?
The Air Mini requires 130mm of depth.
