Products·Slim Array Series

Cedar

Slim Array Speaker

Cedar is a graceful audio array engineered for immersive sound and wide dispersion. Perfect for refined interiors.

XSP-SA-CDR
100W4Ω100Hz – 20kHzPassive
BlackMarine TreatableCustom RAL
Add to System →Brochure

Pricing is quoted by your regional distributor. Find yours →

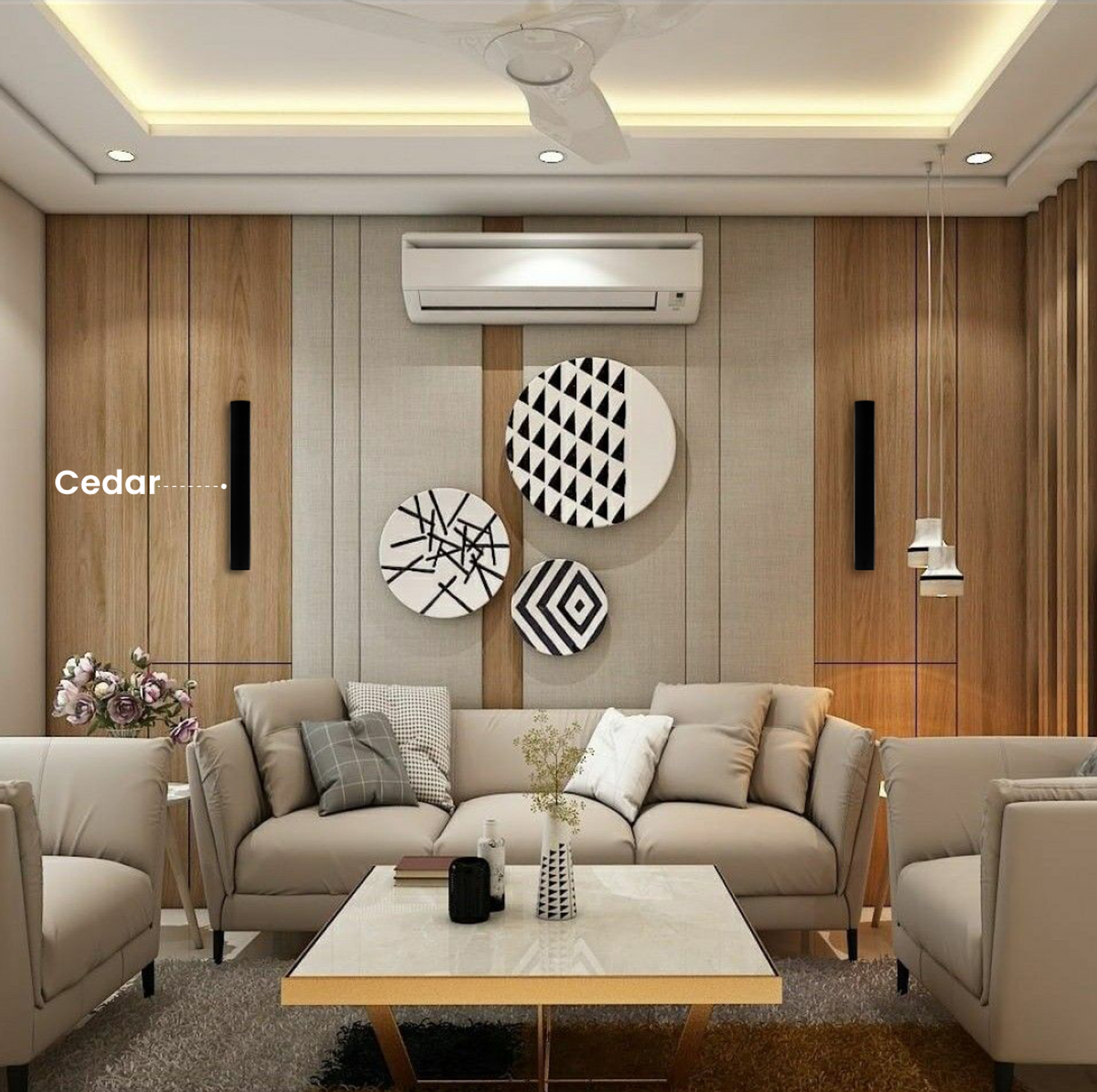

A modern contemporary living room setup highlighting two black XSCACE Cedar speakers vertically integrated into natural wood paneling behind a plush beige sofa set.
Move cursor to illuminate
Design Philosophy
×
No wasted section75 × 75mm. The Cedar's entire cross-section is acoustic volume — no dead space, no decorative mass. Every cubic millimetre behind the grille face is load-bearing output.
×
No visible fixings
×
No arbitrary aperture
×
No compromise on finish
→
75mm of wall. 100Hz–20kHz.
01 / 05
Cedar
Cedar
Contents7 sections

Technical Specifications

17 parameters · scroll to explore
Power RMS
100W
fills a large living room
01 / 17
Acoustic
Power RMS
100W
Impedance
4Ω
Sensitivity
96dB
Frequency
100Hz – 20kHz
Driver
8 × 2"
Driver Material
Graphite Cone, Rubber Edge
Physical
Dimensions
H 618 × W 74.9 × D 74.9 mm
Weight
2.07kg
Housing
ABS
Colours
Black

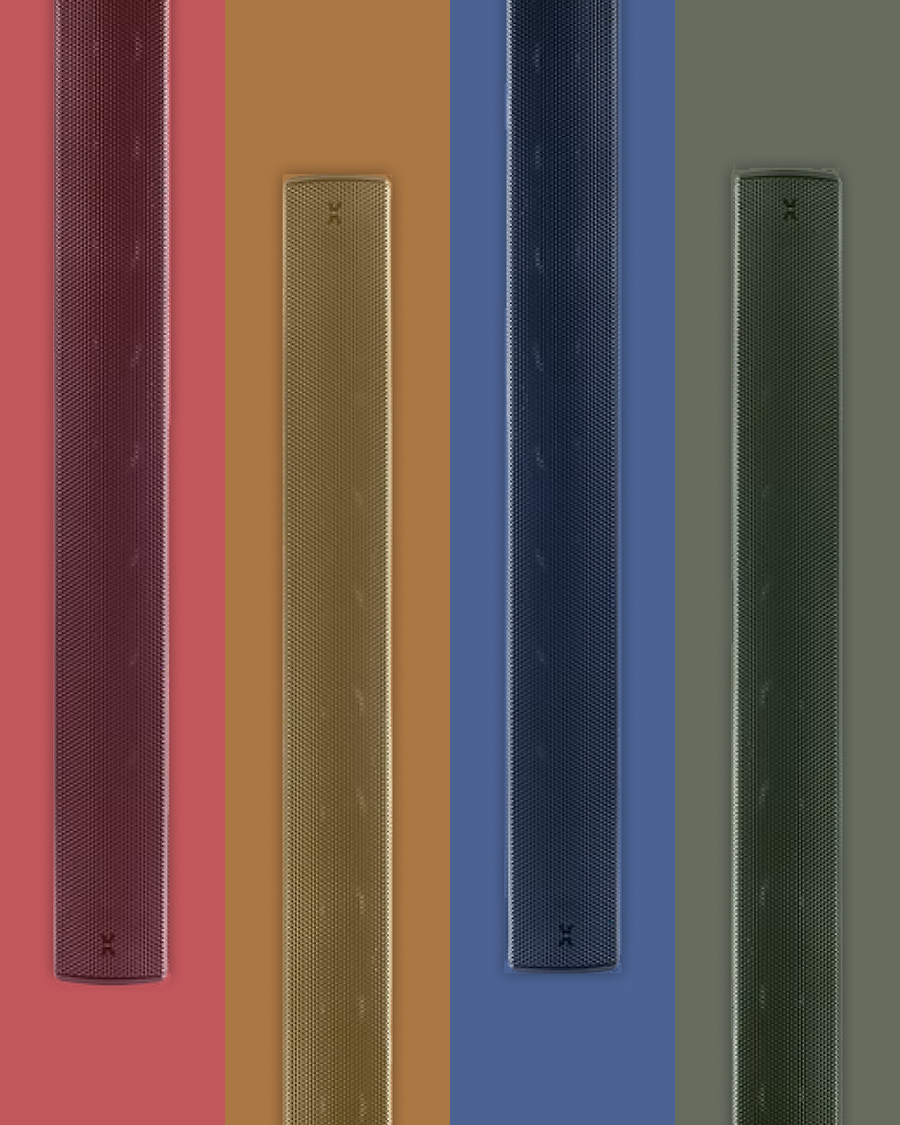

Custom RAL
+20% · 45–60 days
Power Type
Passive
Paintable Grille
No
Grille Material
Mild Steel
Crossover
Built-In Passive Crossover
Max SPL
117dB
THD+N
≤0.2% @ 1W/1m
H 618mmW 74.9mmD 74.9mmrotated 90° for display
Spec SheetInstall Guide
Acoustic Measurements

Frequency Response & Directivity

Frequency Response
On-axis · 1W/1m · 100Hz – 20kHz ±3dB · 96 dB sensitivity
Polar Pattern
Normalised polar response · H 120° / V 40° (−6 dB @ 1 kHz)
Proprietary Technology

Built different. By design.

Full Technology Story
PrecisionXover Array
PowerDense Dynamics
Pairs With

Built to work together

Isometric studio shot of the compact XSCACE Air Amp multiroom streaming audio amplifier, engineered for custom architectural audio systems.
Amplifier Series
Air Amp
80W · 8Ω
view of the XSCACE Juniper deep-bass subwoofer sitting on rubber isolation feet on a hardwood floor, highlighting its powerful exposed woofer cone engineered for immersive home audio.
Subwoofer Series
Juniper
350W · 8Ω · 92dB
The XSCACE Xylem 4 four-channel DSP amplifier in champagne gold, on a wooden console beneath framed artwork — 400W across four channels
Xylem Series
Xylem 4
100W · 8Ω
XSCACE Root 4 DSP amplifier front panel
Amplifier Series
Root 4
250W · 8Ω
An XSCACE Acacia 10 powered subwoofer, a black cabinet on a low console beneath a wall-mounted television, reaching 35Hz on 300W of built-in amplification
Subwoofer Series
Acacia 10 Powered
250W · 4Ω · 88dB
A white round XSCACE Aspen 6 in-ceiling speaker set into a slatted timber ceiling — 209mm cutout, 6-inch driver, reaching 50Hz
In-Ceiling Series
Aspen 6
100W · 8Ω · 87dB
In Use

Common installations

2.1 Music Setup · Stereo + sub + DSP
Source
AVR
Any AVR
Dolby Atmos
Home Cinema 5.1.2 · LCR + surrounds + Atmos + sub
Sound Simulation
Don’t see your setup?
Draw your own room, place this speaker in it, and see the predicted coverage before you specify.
Install Guide ↓Build My System →
Technical Reading

Engineering notes.

Engineering notes and technical background on the Cedar — how it is built, measured and configured.

Restaurant Sound System: A Clubhouse in Two Zones
Article
Restaurant Sound System: A Clubhouse in Two Zones
A covered terrace and a dining room behind folding teak doors, one playlist, two zones. Flush in-walls inside,…

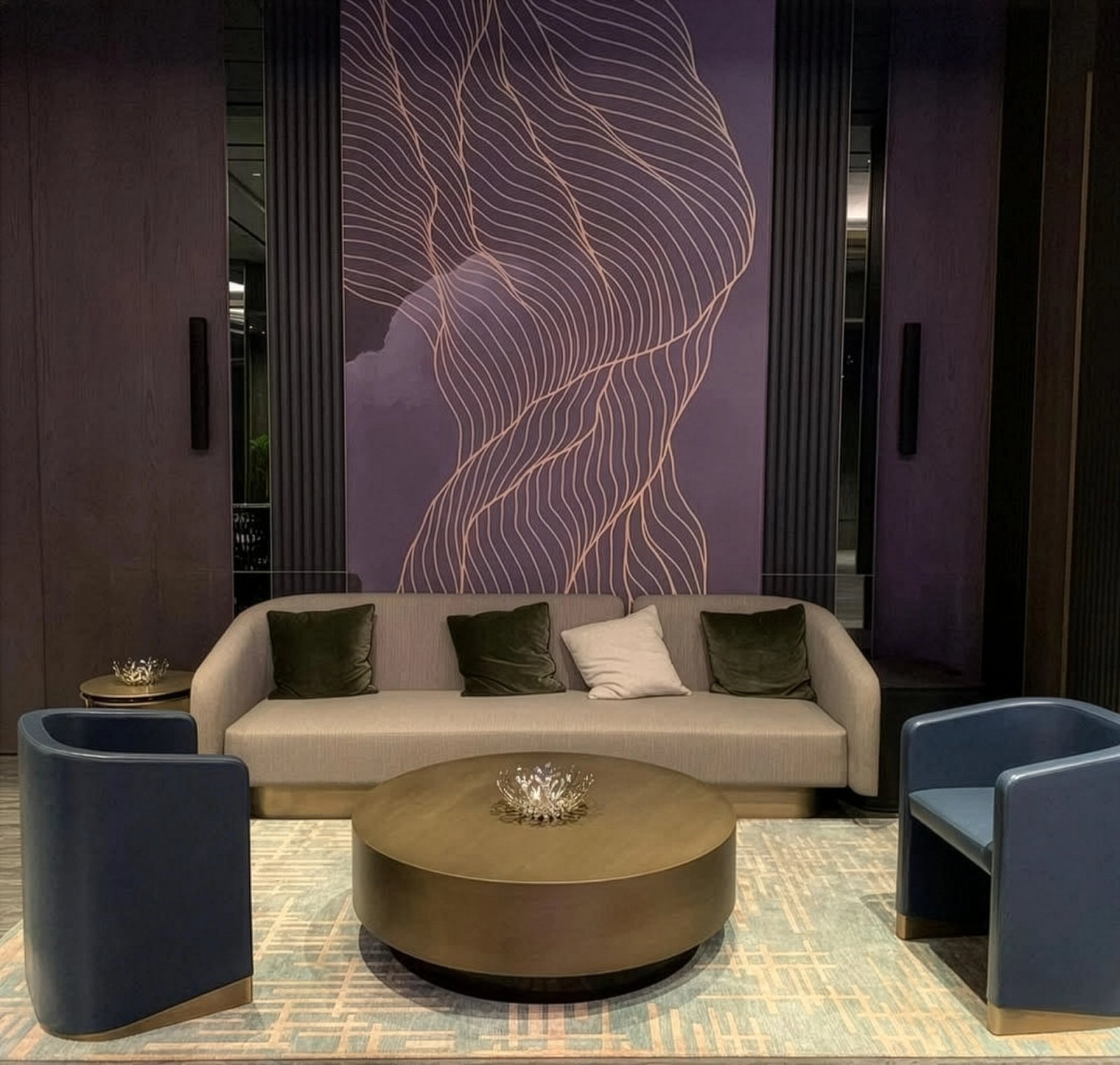

Case Study: Cedar Flanking a Mural in a Home Lounge
Article
Case Study: Cedar Flanking a Mural in a Home Lounge
How a home lounge used two Cedar speakers to symmetrically flank a wall mural — mounted on fluted dark wood pi…

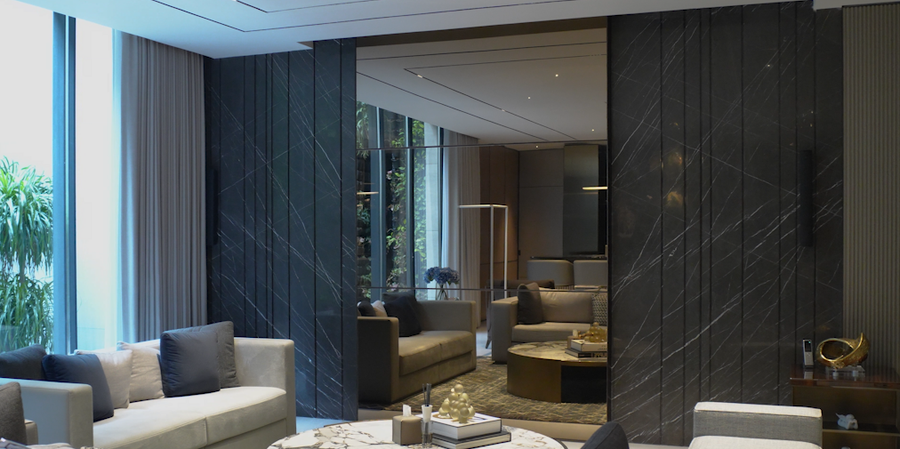

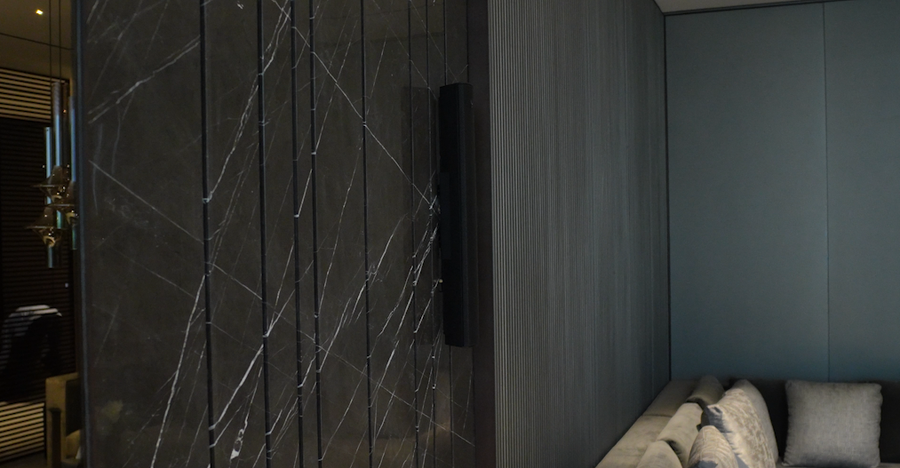

Case Study: Cedar in a Marble, Hotel-Style Reception Lounge
Article
Case Study: Cedar in a Marble, Hotel-Style Reception Lounge
How a hotel-grade reception lounge got higher-output sound on book-matched marble — XSCACE Cedar chosen for it…
Case Study: Party-Level Immersive Audio in a Design Studio
Article
Case Study: Party-Level Immersive Audio in a Design Studio
How a 25x15ft design studio got party-level, immersive audio without disrupting its architectural niche — XSCA…
AeroFrame Chassis™ — Why the Speaker Enclosure Is the Heatsink
Article
AeroFrame Chassis™ — Why the Speaker Enclosure Is the Heatsink
Heat is the primary cause of in-ceiling speaker failure. XSCACE's AeroFrame Chassis™ uses 6061 aerospace alumi…
PowerDense Dynamics™ — Why Most Architectural Speakers Compress at High Volume
Article
PowerDense Dynamics™ — Why Most Architectural Speakers Compress at High Volume
Most architectural speakers sound worse the louder you push them. XSCACE's PowerDense Dynamics™ copper-silver …
XS-Flow™ — Waveguide Engineering Inside a 12mm Speaker
Article
XS-Flow™ — Waveguide Engineering Inside a 12mm Speaker
Sound does not simply radiate from a speaker cone. XS-Flow™ engineers the internal cavity geometry as an acous…
Mobile App
XSCACE Controller
iOS & Android
XSCACE Controller
When paired with Air Amp or Air Mini, control this speaker from your phone. Volume, sources, multiroom groups, a 10-band parametric EQ, and X-Sense AI room calibration that maps the room as you walk it — all in one app.
Learn more →
Gallery

Cedar in context

Scroll

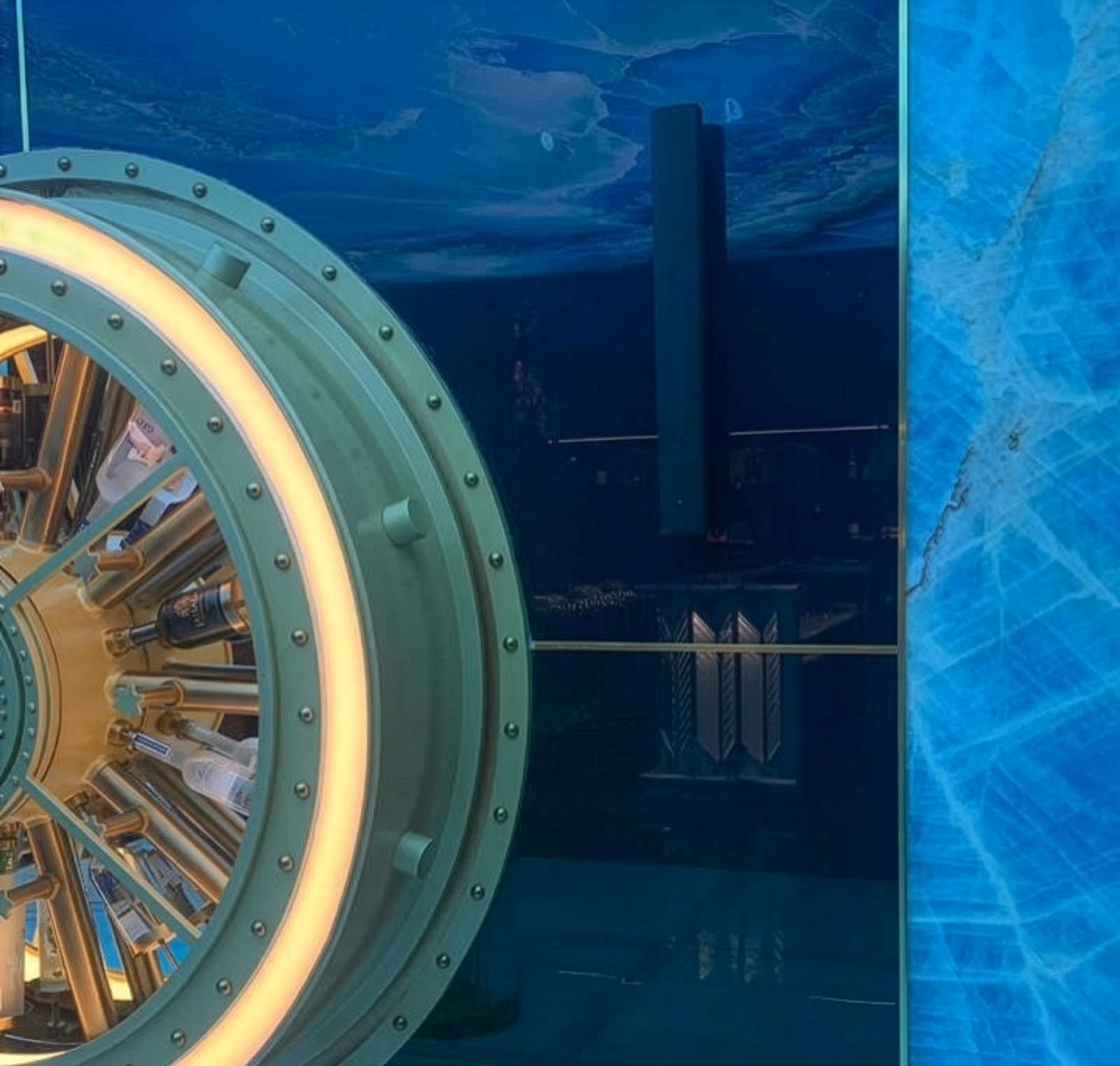

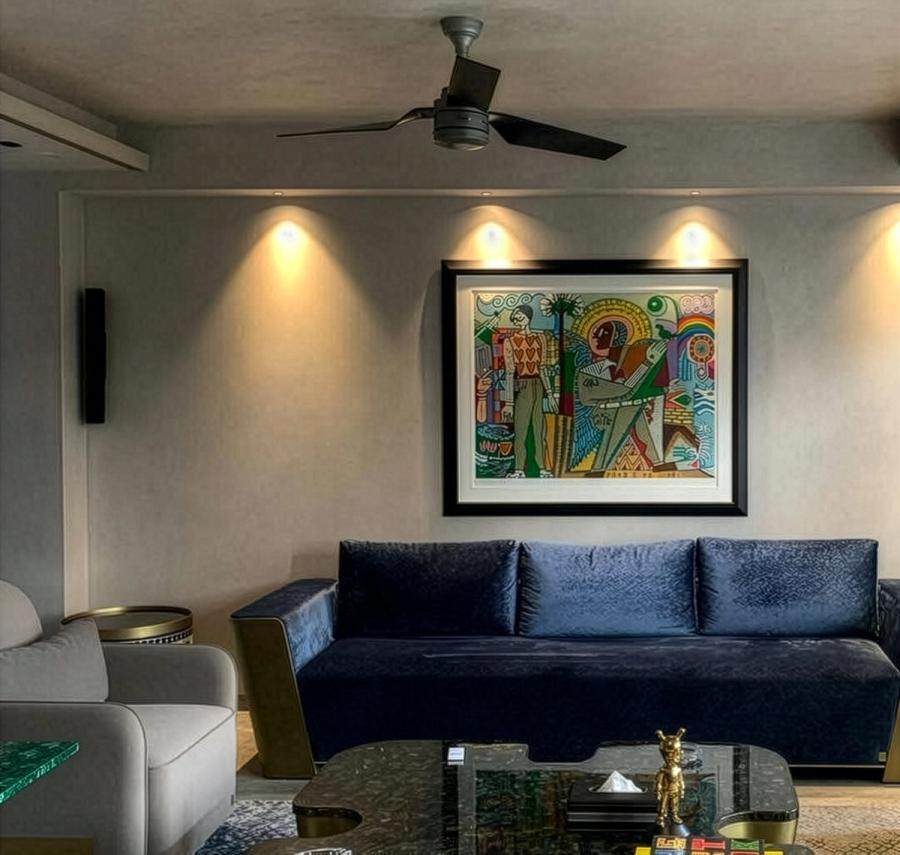

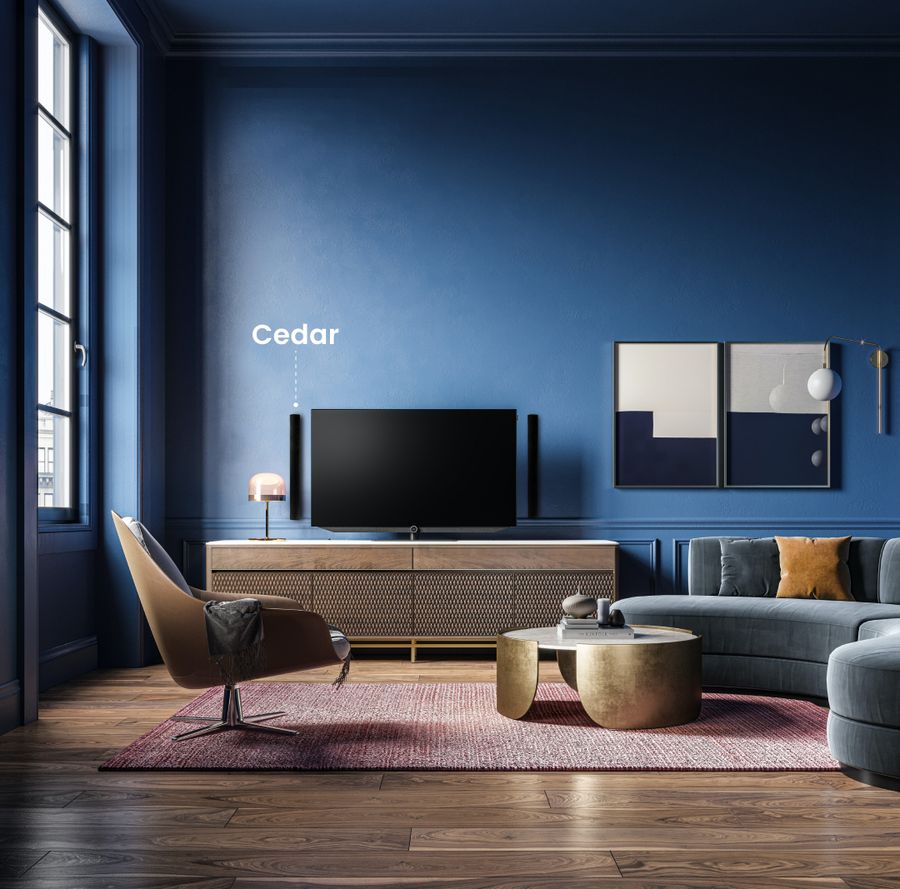

Cedar 1
Cedar 2

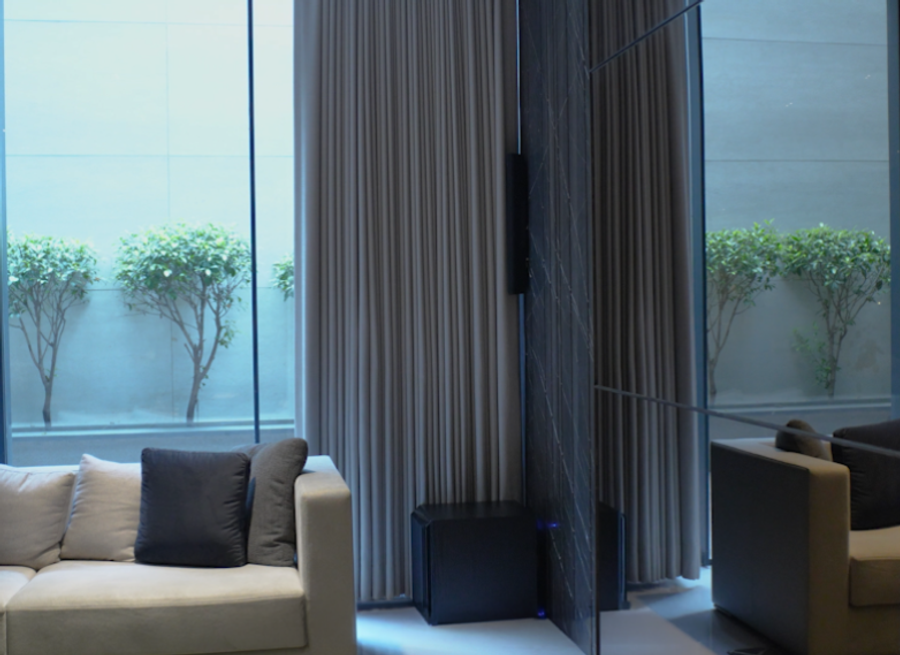

Cedar 3
Cedar 4
Cedar 5
Cedar 6

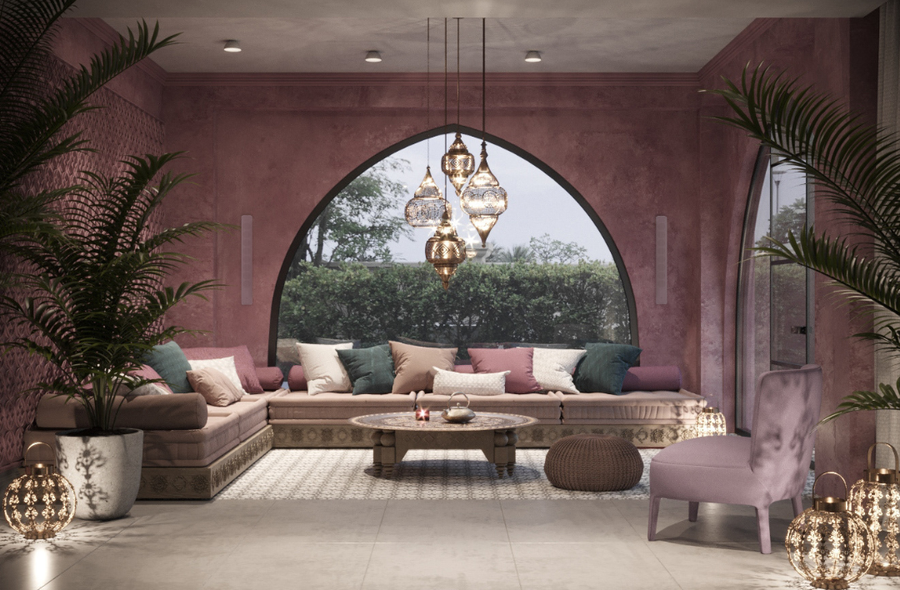

Cedar 7
Cedar 8

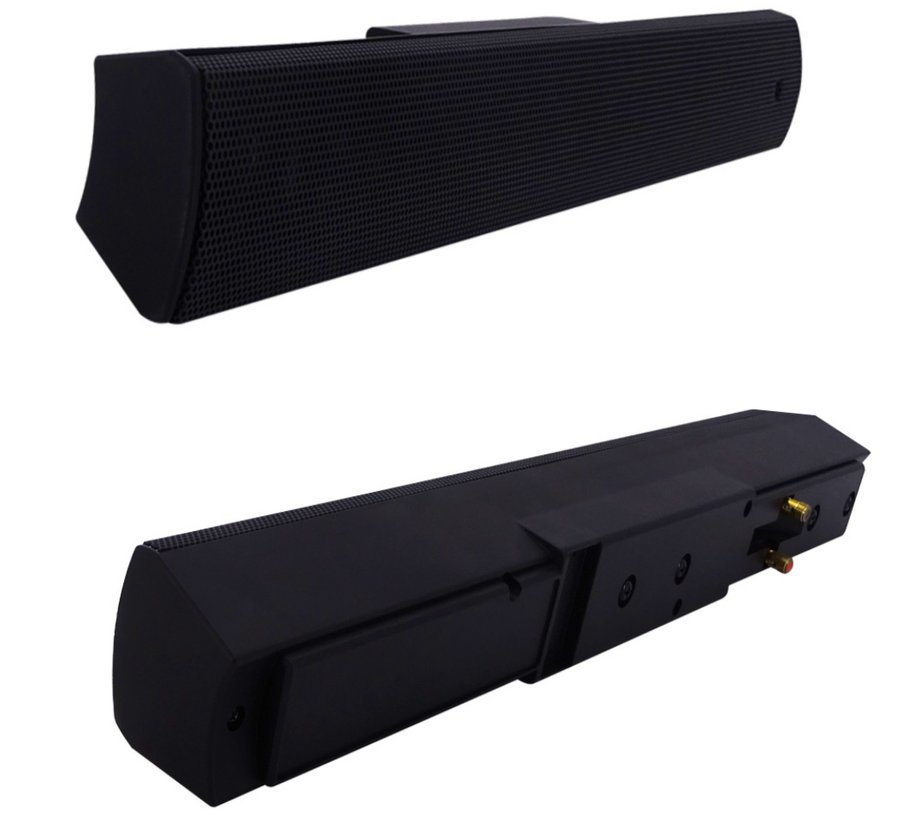

Cedar 9
Cedar 10
Cedar 11

Cedar has a broad frequency range, from powerful bass to sharp highs, making it ideal for playing any type of music. It has a high level of sensitivity and can handle a large amount of power, ensuring that your music will sound precise and powerful."

Frequently asked questions5 answers
What is the XSCACE Cedar?

Optimised for large open-plan residential and commercial environments in Canada, the UK, and India requiring wide, even coverage from a single discreet mounting point.

What is the frequency response of the Cedar?

The Cedar covers 100Hz–20000Hz.

What is the power output of the Cedar?

The Cedar is rated at 100W RMS into 4Ω.

Is the Cedar an in-ceiling, in-wall, or slim-array speaker?

The Cedar is an on-wall/slim-array product, mounted via Screw mount, Corner mount, Floor stand.

How deep is the Cedar?

The Cedar requires 74.9mm of depth.
