Bonsai In-Ceiling / In-Wall

Slim Array In-Ceiling / In-Wall

The Bonsai in flush-mount form. Same exceptional sound now invisible in your ceiling or wall.

XSP-IC-BON
40W8Ω300Hz – 18kHzPassive
White onlyMarine TreatableCustom RAL
Add to System →Brochure

Pricing is quoted by your regional distributor. Find yours →

XSCACE Bonsai In-Ceiling In-Wall slim array speaker — 13mm depth, flush-mount white rectangular grille installed in ceiling
Move cursor to illuminate
Design Philosophy
×
No surface constraintThe Bonsai IC installs flush into any flat surface — wall or ceiling — with the same bracket, the same cutout, the same result. One form factor. Zero compromises based on where the surface happens to be.
×
No visible fixings
×
No draft angle
×
No compromise on finish
→
Wall or ceiling. 13mm deep.
01 / 05
Bonsai In-Ceiling / In-Wall
Bonsai In-Ceiling / In-Wall
Contents7 sections

Technical Specifications

19 parameters · scroll to explore
Power RMS
40W
fills a medium room
01 / 19
Acoustic
Power RMS
40W
Power Peak
50W
Impedance
8Ω
Sensitivity
86dB
Frequency
300Hz – 18kHz –6dB
Driver
4
Physical
Dimensions
H 90 × W 22 × D 13 mm
Weight
0.1kg
Housing
Aerospace Aluminium
Colours
White only
Custom RAL
+20% · 45–60 days
Power Type
Passive
Cutout
90 × 22 mm
Cavity Depth
25mm
Paintable Grille
No
Grille Material
Mild Steel
Crossover
Built-In Passive Crossover
Max SPL
103dB
THD+N
≤0.2% @ 1W/1m
H 90mmW 22mmD 13mmrotated 90° for display
Spec SheetInstall Guide
Acoustic Measurements

Frequency Response & Directivity

Frequency Response
On-axis · 1W/1m · 300Hz – 18kHz –6dB · 86 dB sensitivity
Polar Pattern
Normalised polar response · H 140° / V 40° (−6 dB @ 1 kHz)
Proprietary Technology

Built different. By design.

Full Technology Story
AeroFrame Chassis
Nano Resonance
XS-Flow
PrecisionXover Array
PowerDense Dynamics
Pairs With

Built to work together

Close-up view of a micro-sized XSCACE Bonsai SlimArray speaker in a matte black finish, seamlessly integrated flush between contemporary black and white acoustic wall slats.
Slim Array Series
Bonsai
40W · 8Ω · 86dB
Isometric studio shot of the compact XSCACE Air Amp multiroom streaming audio amplifier, engineered for custom architectural audio systems.
Amplifier Series
Air Amp
80W · 8Ω
The XSCACE Xylem 4 four-channel DSP amplifier in champagne gold, on a wooden console beneath framed artwork — 400W across four channels
Xylem Series
Xylem 4
100W · 8Ω
A 3D product render of the XSCACE Cane architectural in-wall speaker module, showcasing its slim rectangular design, luxury champagne gold finish, and precision micro-perforated metal grille.
Slim Array Series
Cane In-Ceiling / In-Wall
50W · 8Ω · 92dB
In Use

Common installations

2.1 In-Ceiling Setup · Compact in-ceiling + in-wall sub + DSP
Source
AVR
Any AVR
Dolby Atmos
Home Cinema 5.1.2 · Cane IW LCR · Bonsai IC surrounds · Ghost 2.0 Atmos · Acacia 10 IW sub · Any AVR
Sound Simulation
Don’t see your setup?
Draw your own room, place this speaker in it, and see the predicted coverage before you specify.
Install Guide ↓Build My System →
Technical Reading

Engineering notes.

Engineering notes and technical background on the Bonsai In-Ceiling / In-Wall — how it is built, measured and configured.

Restaurant Sound System: A Clubhouse in Two Zones
Article
Restaurant Sound System: A Clubhouse in Two Zones
A covered terrace and a dining room behind folding teak doors, one playlist, two zones. Flush in-walls inside,…
Mobile App
XSCACE Controller
iOS & Android
XSCACE Controller
When paired with Air Amp or Air Mini, control this speaker from your phone. Volume, sources, multiroom groups, a 10-band parametric EQ, and X-Sense AI room calibration that maps the room as you walk it — all in one app.
Learn more →
Gallery

Bonsai In-Ceiling / In-Wall in context

Scroll
Bonsai In-Ceiling / In-Wall 1
Bonsai In-Ceiling / In-Wall 2

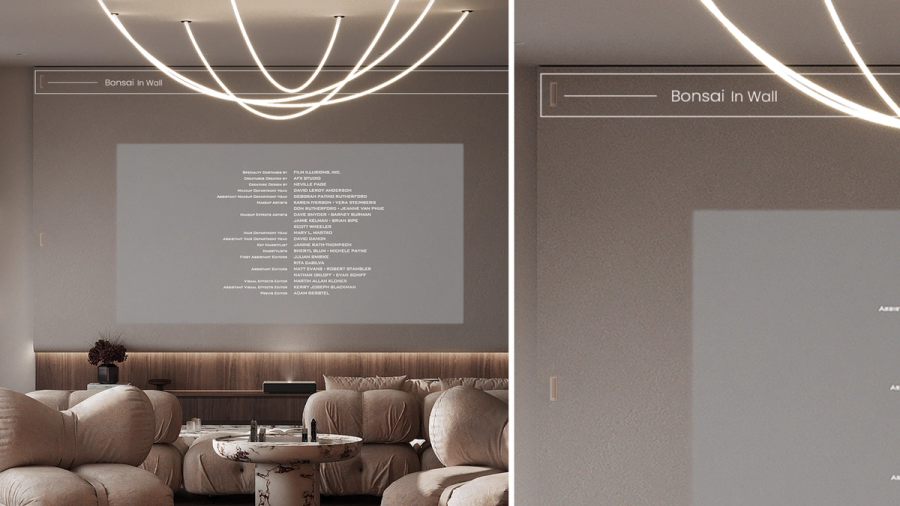

Bonsai In-Ceiling / In-Wall 3

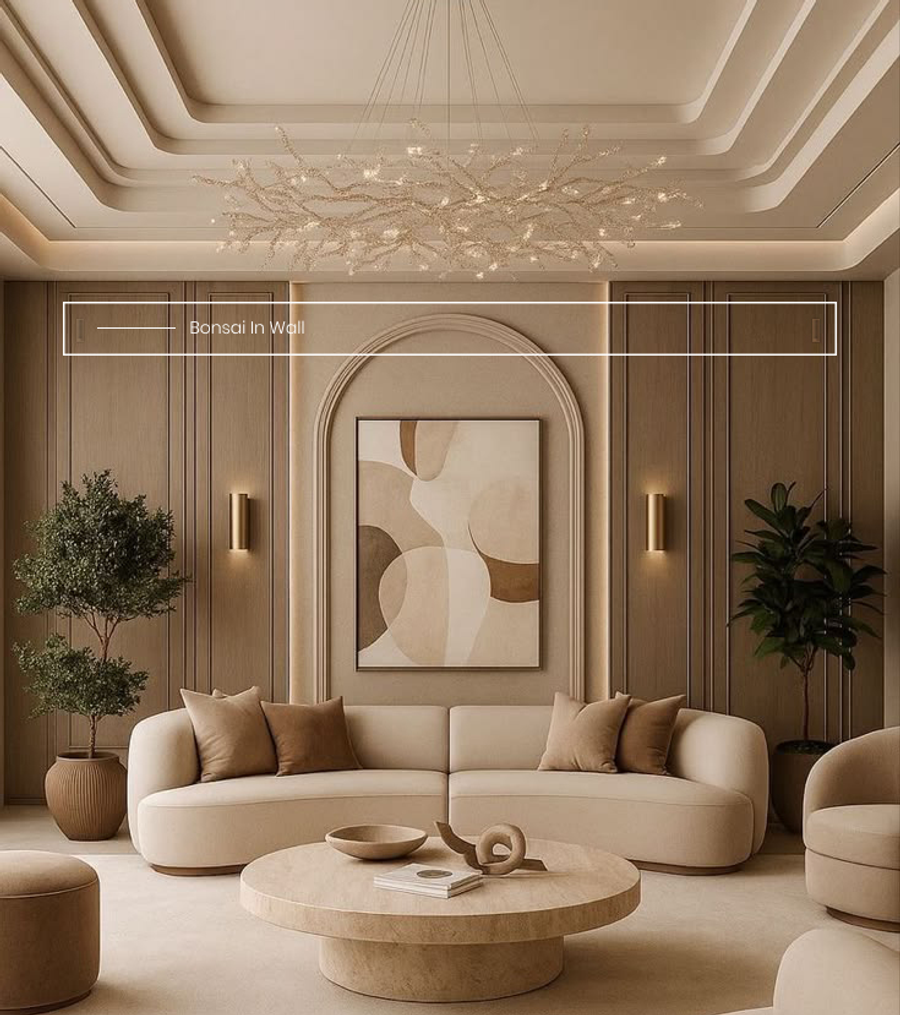

Bonsai In-Ceiling / In-Wall 4

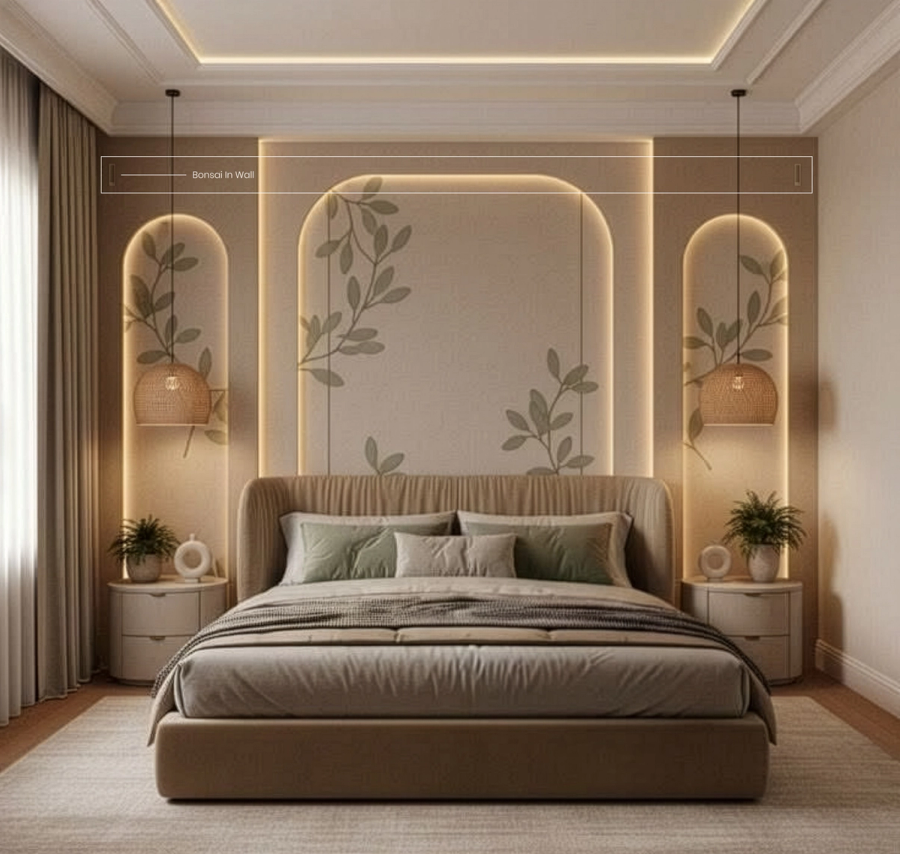

Bonsai In-Ceiling / In-Wall 5

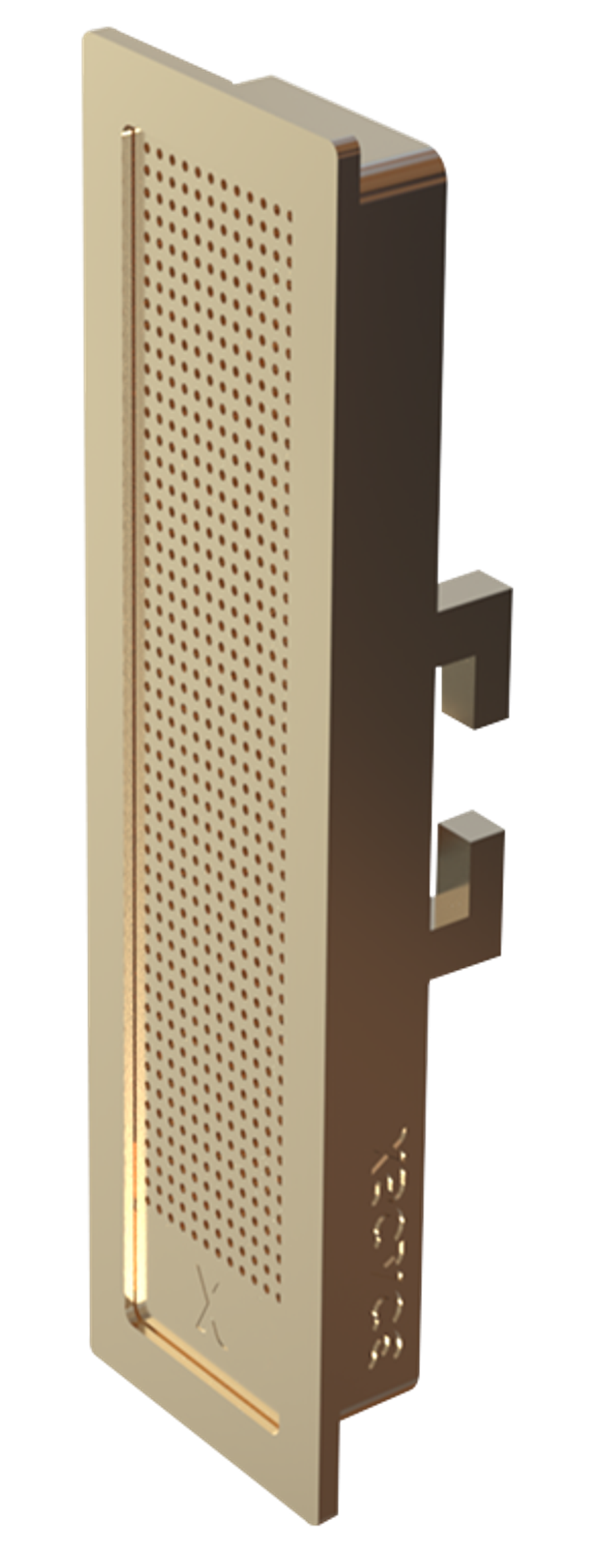

Bonsai In-Ceiling / In-Wall 6
Frequently asked questions5 answers
What is the XSCACE Bonsai In-Ceiling / In-Wall?

Ideal for luxury residential projects in Canada, the UK, and India combining slim array and flush-mount speakers in a unified system requiring consistent acoustic performance throughout.

What is the frequency response of the Bonsai In-Ceiling / In-Wall?

The Bonsai In-Ceiling / In-Wall covers 300Hz–18000Hz (–6dB).

What is the power output of the Bonsai In-Ceiling / In-Wall?

The Bonsai In-Ceiling / In-Wall is rated at 40W RMS (50W peak) into 8Ω.

Is the Bonsai In-Ceiling / In-Wall an in-ceiling, in-wall, or slim-array speaker?

The Bonsai In-Ceiling / In-Wall is an in-wall product.

How deep is the Bonsai In-Ceiling / In-Wall?

The Bonsai In-Ceiling / In-Wall requires 13mm of depth (25mm cavity), engineered to sit as close to flush as the driver geometry allows. Most premium architectural speakers on the market are 30-40mm deep at their thinnest; at 13mm, the Bonsai In-Ceiling / In-Wall is about 36% of that depth.
