What is the XSCACE Acacia 6 In-Wall Passive?

Specified for luxury residential and hospitality projects in Canada, the UK, and India where visible subwoofers are architecturally unacceptable and in-wall bass reinforcement is required.

What is the frequency response of the Acacia 6 In-Wall Passive?

The Acacia 6 In-Wall Passive covers 45Hz–300Hz.

What is the power output of the Acacia 6 In-Wall Passive?

The Acacia 6 In-Wall Passive is rated at 150W RMS (200W peak) into 4Ω.

What type of product is the Acacia 6 In-Wall Passive?

The Acacia 6 In-Wall Passive is a subwoofer product, mounted via Spring clip flush-mount.

How deep is the Acacia 6 In-Wall Passive?

The Acacia 6 In-Wall Passive requires 101.6mm of depth (101.6mm cavity).

Acacia 6 In-Wall Passive · Subwoofer Series

Coming soon.

Product page in progress. Check back shortly.

← Back to Subwoofer Series

Acacia 6 In-Wall Passive

Name: Acacia 6 In-Wall Passive Subwoofer
Brand: XSCACE

In-Wall Passive Subwoofer

Flush-mount 6 inch in-wall passive subwoofer with deep bass down to 45Hz. Invisible installation.

XSW-ACA-6IW

150W4Ω45Hz – 300HzPassive

Stainless Steel

Custom RAL

Add to System →Brochure

Pricing is quoted by your regional distributor. Find yours →

Contents6 sections

Technical Specifications

21 parameters · scroll to explore

Power RMS

150W

fills a large living room

01 / 21

Acoustic

Power RMS

150W

Power Peak

200W

Impedance

4Ω

Sensitivity

84dB

Frequency

45Hz – 300Hz

Driver

1 × 6"

Physical

Dimensions

234.9 × 373.9 × 101.6 mm

Weight

4.3kg

Housing

Birch Wood / MDF / Aluminium

Colours

Stainless Steel

Custom RAL

Available

Power Type

Passive

Cutout

365 × 224.8 mm

Cavity Depth

101.6mm

Paintable Grille

Grille Material

Mild Steel

Paintable Grille

Crossover

Subwoofer LP only

Max SPL

107dB

THD+N

≤0.2% @ 1W/1m

Connectivity

THD+N

≤0.2% @ 1W/1m

Spec Sheet Install Guide

Acoustic Measurements

Frequency Response & Directivity

Frequency Response

On-axis · 1W/1m · 45Hz – 300Hz ±3dB · 84 dB sensitivity

Proprietary Technology

Built different. By design.

Full Technology Story

Pairs With

Built to work together

Acacia 6 Standard Passive

200W · 4Ω · 84dB

In Use

Common installations

AI System Builder

Don't see your setup?

Tell the AI your room, budget and use case — get a complete system in seconds.

Install Guide ↓Build My System →

Gallery

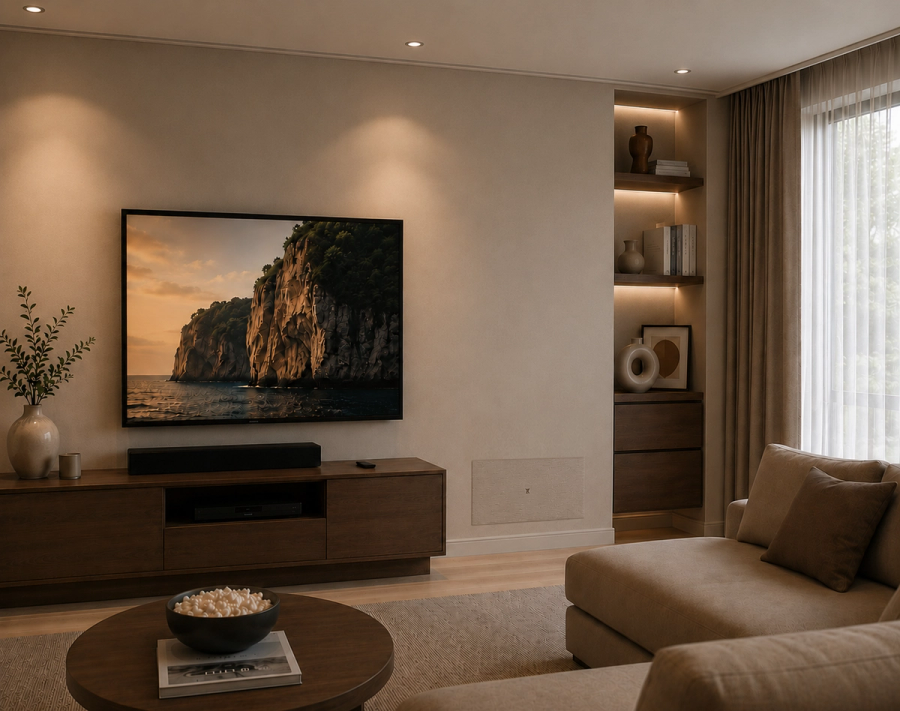

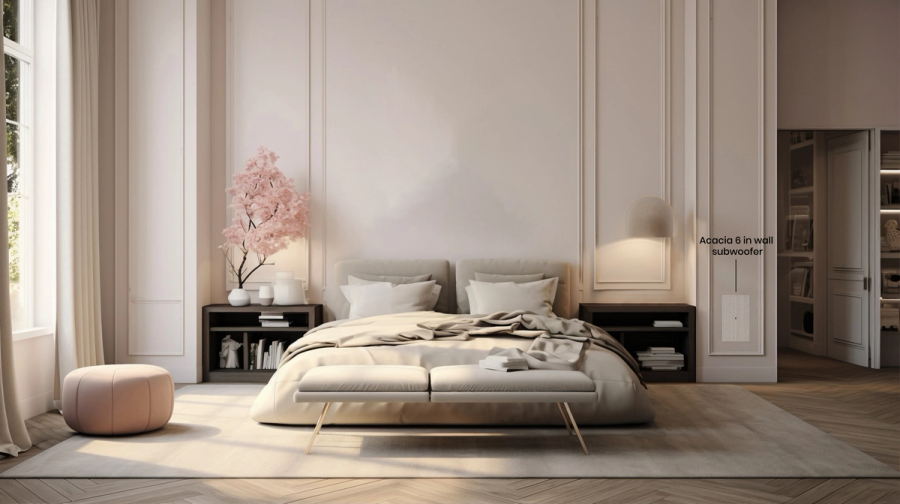

Acacia 6 In-Wall Passive in context

Scroll

Frequently Asked Questions

What is the XSCACE Acacia 6 In-Wall Passive?: Specified for luxury residential and hospitality projects in Canada, the UK, and India where visible subwoofers are architecturally unacceptable and in-wall bass reinforcement is required.
What is the frequency response of the Acacia 6 In-Wall Passive?: The Acacia 6 In-Wall Passive covers 45Hz–300Hz.
What is the power output of the Acacia 6 In-Wall Passive?: The Acacia 6 In-Wall Passive is rated at 150W RMS (200W peak) into 4Ω.
What type of product is the Acacia 6 In-Wall Passive?: The Acacia 6 In-Wall Passive is a subwoofer product, mounted via Spring clip flush-mount.
How deep is the Acacia 6 In-Wall Passive?: The Acacia 6 In-Wall Passive requires 101.6mm of depth (101.6mm cavity).
