Acacia 6 Standard Passive

Name: Acacia 6 Standard Passive Subwoofer
Brand: XSCACE

Passive Subwoofer

On-wall 6 inch passive subwoofer in stainless steel enclosure. Pairs with any amplifier for deep controlled bass.

XSW-ACA-6PAM

200W4Ω35Hz – 300HzPassive

Stainless Steel

Custom RAL

Add to System →Brochure

Pricing is quoted by your regional distributor. Find yours →

Move cursor to illuminate

Design Philosophy

No port noiseXS-Flow port geometry eliminates turbulence at the vent exit. Full bass output at reference levels — no chuffing, no compression, no audible artefact.

No amplifier lock-in

No crossover guesswork

No visible driver

→

Bass that disappears.

01 / 05

Contents8 sections

Technical Specifications

18 parameters · scroll to explore

Power RMS

200W

fills a large living room

01 / 18

Acoustic

Power RMS

200W

Power Peak

300W

Impedance

4Ω

Sensitivity

84dB

Frequency

35Hz – 300Hz

Driver

1 × 6"

Physical

Dimensions

H 266.7 × W 266.7 × D 155.4 mm

Weight

4.3kg

Housing

Birch Wood / MDF / Aluminium

Colours

Stainless Steel

Custom RAL

+20% · 45–60 days

Power Type

Passive

Paintable Grille

Grille Material

Mild Steel

Crossover

Subwoofer LP only

Max SPL

107dB

THD+N

≤0.2% @ 1W/1m

Connectivity

THD+N

≤0.2% @ 1W/1m

Spec Sheet Install Guide

Acoustic Measurements

Frequency Response & Directivity

Frequency Response

On-axis · 1W/1m · 35Hz – 300Hz ±3dB · 84 dB sensitivity

Binding Posts

Proprietary Technology

Built different. By design.

Full Technology Story

Pairs With

Built to work together

In Use

Common installations

The signal chain.

The Acacia 6 Passive pairs natively with the Xylem 3 — a 3-channel DSP amplifier that drives the subwoofer and a pair of Bonsai slim-array speakers from a single chassis.

Amplifier

Xylem 3

400W · 3-Ch · DSP · Class D

L + R Satellite

Bonsai ×2

Slim Array · 8Ω

Subwoofer · This Page

Acacia 6 Passive

200W · Passive · 4Ω

Sound Simulation

Don’t see your setup?

Draw your own room, place this speaker in it, and see the predicted coverage before you specify.

Install Guide ↓Build My System →

Technical Reading

Engineering notes.

Engineering notes and technical background on the Acacia 6 Standard Passive — how it is built, measured and configured.

Article

Acacia 6 & 10 Now Available in Stainless Steel

The Acacia subwoofer range — in-wall and standard passive — is now offered in a premium brushed stainless stee…

Also available in

Product

In Use

In-Wall Passive

Acacia 6 In-Wall Passive

Identical acoustic performance installed flush into the wall cavity. Completely invisible. Requires an external amplifier with LFE output.

View Acacia 6 In-Wall →

Product

In Use

Powered

Acacia 6 Powered

Same enclosure and driver, with a built-in 200W Class D amplifier. No external amplifier required — one cable in, bass out.

View Acacia 6 Powered →

Gallery

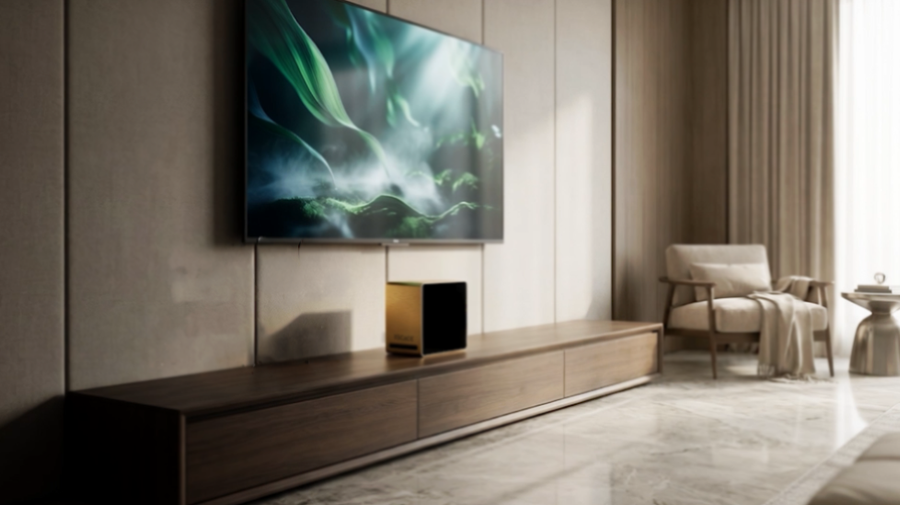

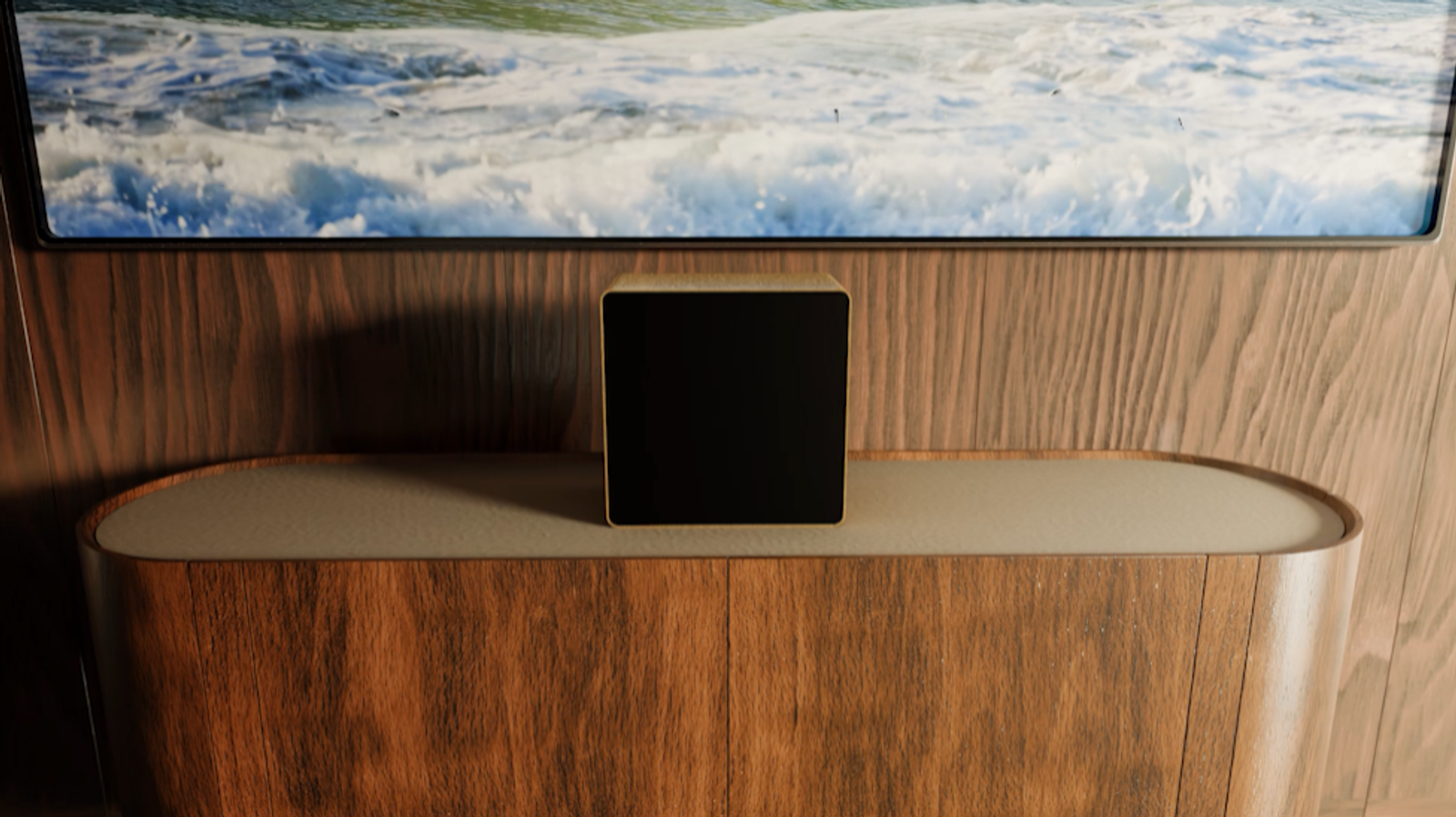

Acacia 6 Standard Passive in context

Scroll

Frequently asked questions6 answers

What is the XSCACE Acacia 6 Standard Passive?

Ideal for smaller luxury residential rooms, guest suites, and commercial spaces in Canada, the UK, and India requiring discreet bass without the footprint of a larger subwoofer.

What is the frequency response of the Acacia 6 Standard Passive?

The Acacia 6 Standard Passive covers 35Hz–300Hz.

What is the power output of the Acacia 6 Standard Passive?

The Acacia 6 Standard Passive is rated at 200W RMS (300W peak) into 4Ω.

What type of product is the Acacia 6 Standard Passive?

The Acacia 6 Standard Passive is a subwoofer product.

How much space does the Acacia 6 Standard Passive need?

The chassis is 266.7 mm high, 266.7 mm wide and 155.4 mm deep.

How deep is the Acacia 6 Standard Passive?

The Acacia 6 Standard Passive requires 155.4mm of depth.
