Acacia 10 Standard Passive

Name: Acacia 10 Standard Passive Subwoofer
Brand: XSCACE

Passive Subwoofer

On-wall 10 inch passive subwoofer. Powerful bass down to 35Hz for large rooms and home cinema.

XSW-ACA-10PAM

250W4Ω35Hz – 300HzPassive

Stainless Steel

Custom RAL

Add to System →Brochure

Pricing is quoted by your regional distributor. Find yours →

Move cursor to illuminate

Design Philosophy

No port noiseXS-Flow port geometry eliminates turbulence at the vent exit. Full bass output at reference levels — no chuffing, no compression, no audible artefact.

No amplifier lock-in

No crossover guesswork

No visible driver

→

Bass that disappears.

01 / 05

Contents8 sections

Technical Specifications

18 parameters · scroll to explore

Power RMS

250W

fills a large living room

01 / 18

Acoustic

Power RMS

250W

Power Peak

300W

Impedance

4Ω

Sensitivity

88dB

Frequency

35Hz – 300Hz

Driver

1 × 10"

Physical

Dimensions

H 380 × W 380 × D 193.8 mm

Weight

13kg

Housing

Wood

Colours

Stainless Steel

Custom RAL

+20% · 45–60 days

Power Type

Passive

Paintable Grille

Grille Material

Mild Steel

Crossover

Subwoofer LP only

Max SPL

112dB

THD+N

≤0.2% @ 1W/1m

Connectivity

THD+N

≤0.2% @ 1W/1m

Spec Sheet Install Guide

Acoustic Measurements

Frequency Response & Directivity

Frequency Response

On-axis · 1W/1m · 35Hz – 300Hz ±3dB · 88 dB sensitivity

Binding Posts

Proprietary Technology

Built different. By design.

Full Technology Story

Pairs With

Built to work together

Acacia 10 In-Wall Passive

250W · 4Ω · 88dB

In Use

Common installations

The signal chain.

The Acacia 10 Passive pairs natively with the Xylem 3 — a 3-channel DSP amplifier that drives the subwoofer and a pair of Cane slim-array speakers from a single chassis.

Amplifier

Xylem 3

400W · 3-Ch · DSP · Class D

L + R Satellite

Cane ×2

Slim Array · 8Ω

Subwoofer · This Page

Acacia 10 Passive

200W · Passive · 4Ω

Sound Simulation

Don’t see your setup?

Draw your own room, place this speaker in it, and see the predicted coverage before you specify.

Install Guide ↓Build My System →

Technical Reading

Engineering notes.

Engineering notes and technical background on the Acacia 10 Standard Passive — how it is built, measured and configured.

Article

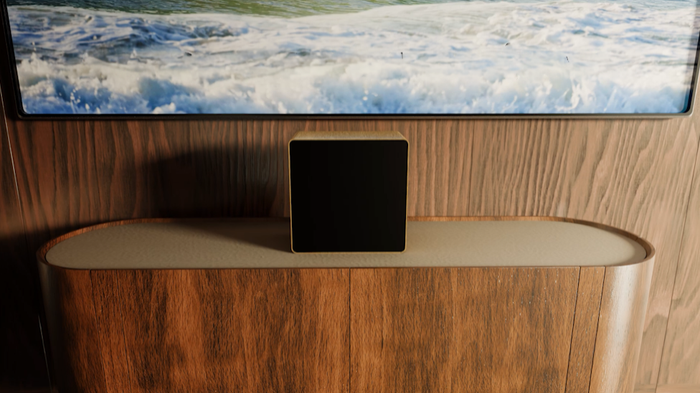

Acacia 6 & 10 Now Available in Stainless Steel

The Acacia subwoofer range — in-wall and standard passive — is now offered in a premium brushed stainless stee…

Also available in

Product

In Use

In-Wall Passive

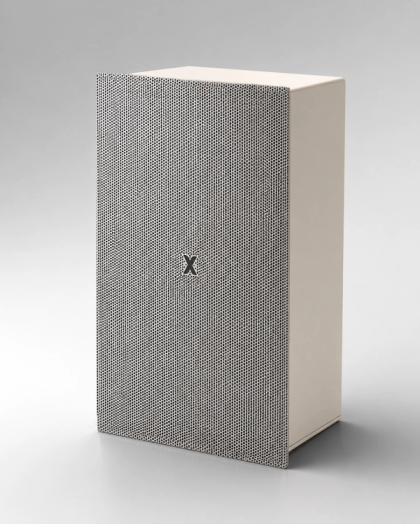

Acacia 10 In-Wall Passive

Identical acoustic performance installed flush into the wall cavity. Completely invisible. Requires an external amplifier with LFE output.

View Acacia 10 In-Wall →

Product

In Use

Powered

Acacia 10 Powered

Same enclosure and driver, with a built-in 200W Class D amplifier. No external amplifier required — one cable in, bass out.

View Acacia 10 Powered →

Gallery

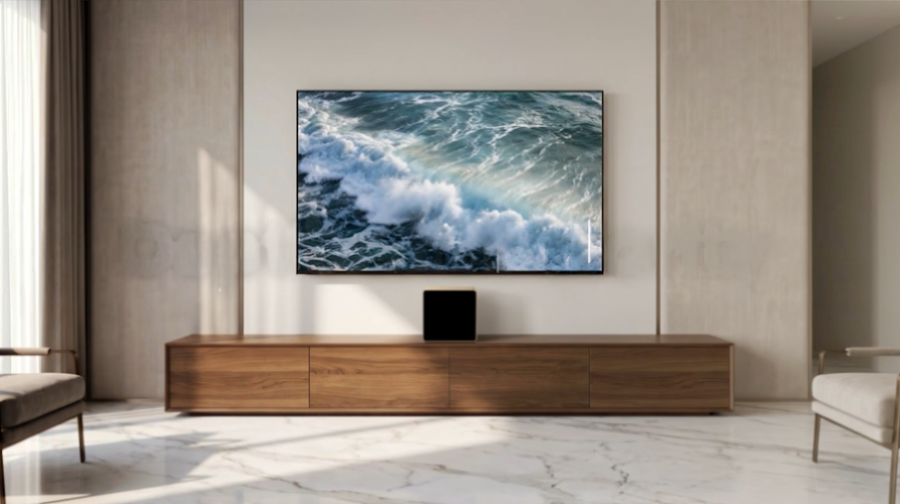

Acacia 10 Standard Passive in context

Scroll

Frequently asked questions6 answers

What is the XSCACE Acacia 10 Standard Passive?

Specified for primary listening rooms, dedicated cinema rooms, and large residential spaces in luxury projects across Canada, the UK, and India requiring deep, accurate bass.

What is the frequency response of the Acacia 10 Standard Passive?

The Acacia 10 Standard Passive covers 35Hz–300Hz.

What is the power output of the Acacia 10 Standard Passive?

The Acacia 10 Standard Passive is rated at 250W RMS (300W peak) into 4Ω.

What type of product is the Acacia 10 Standard Passive?

The Acacia 10 Standard Passive is a subwoofer product.

How much space does the Acacia 10 Standard Passive need?

The chassis is 380 mm high, 380 mm wide and 193.8 mm deep.

How deep is the Acacia 10 Standard Passive?

The Acacia 10 Standard Passive requires 193.8mm of depth.
