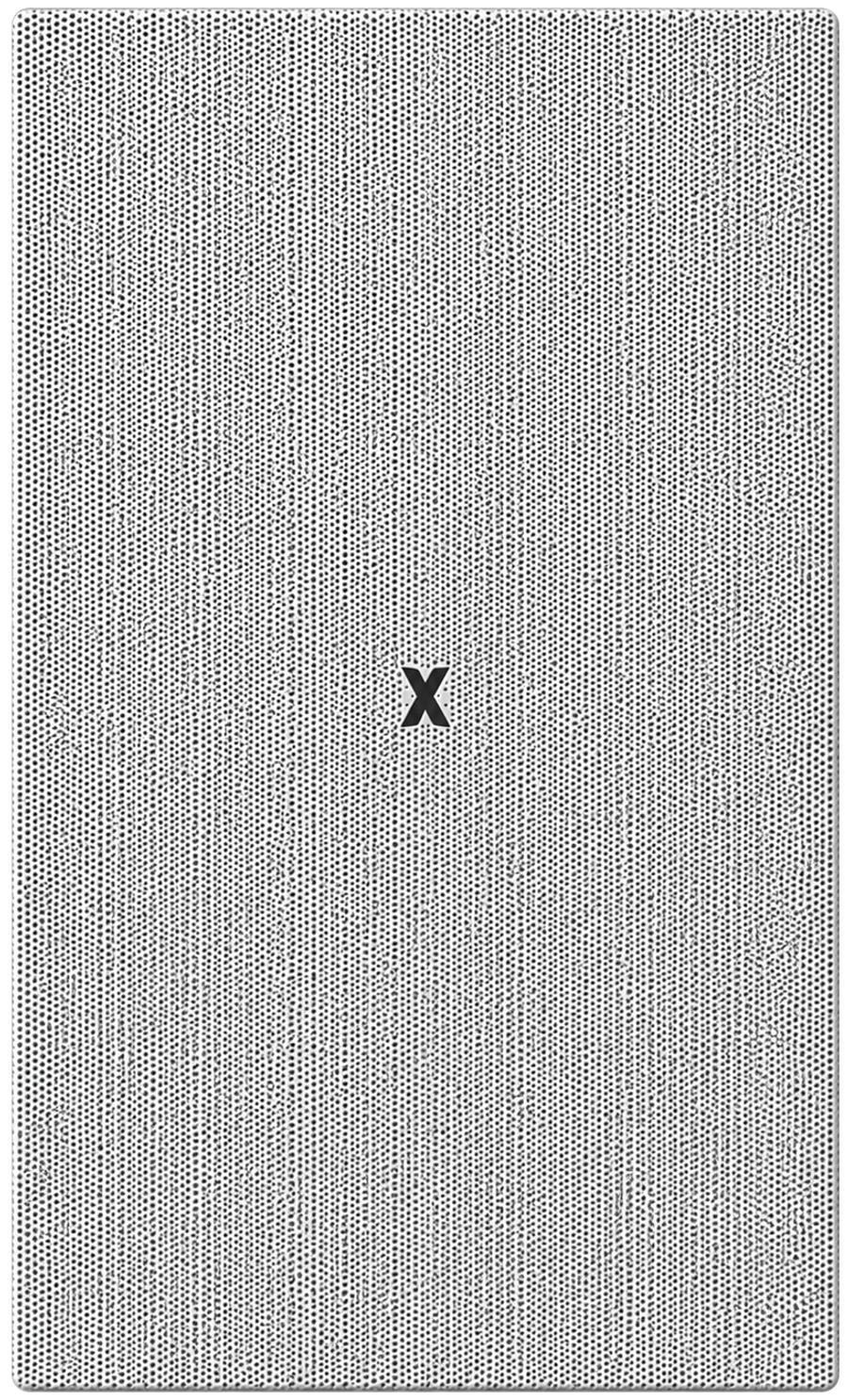

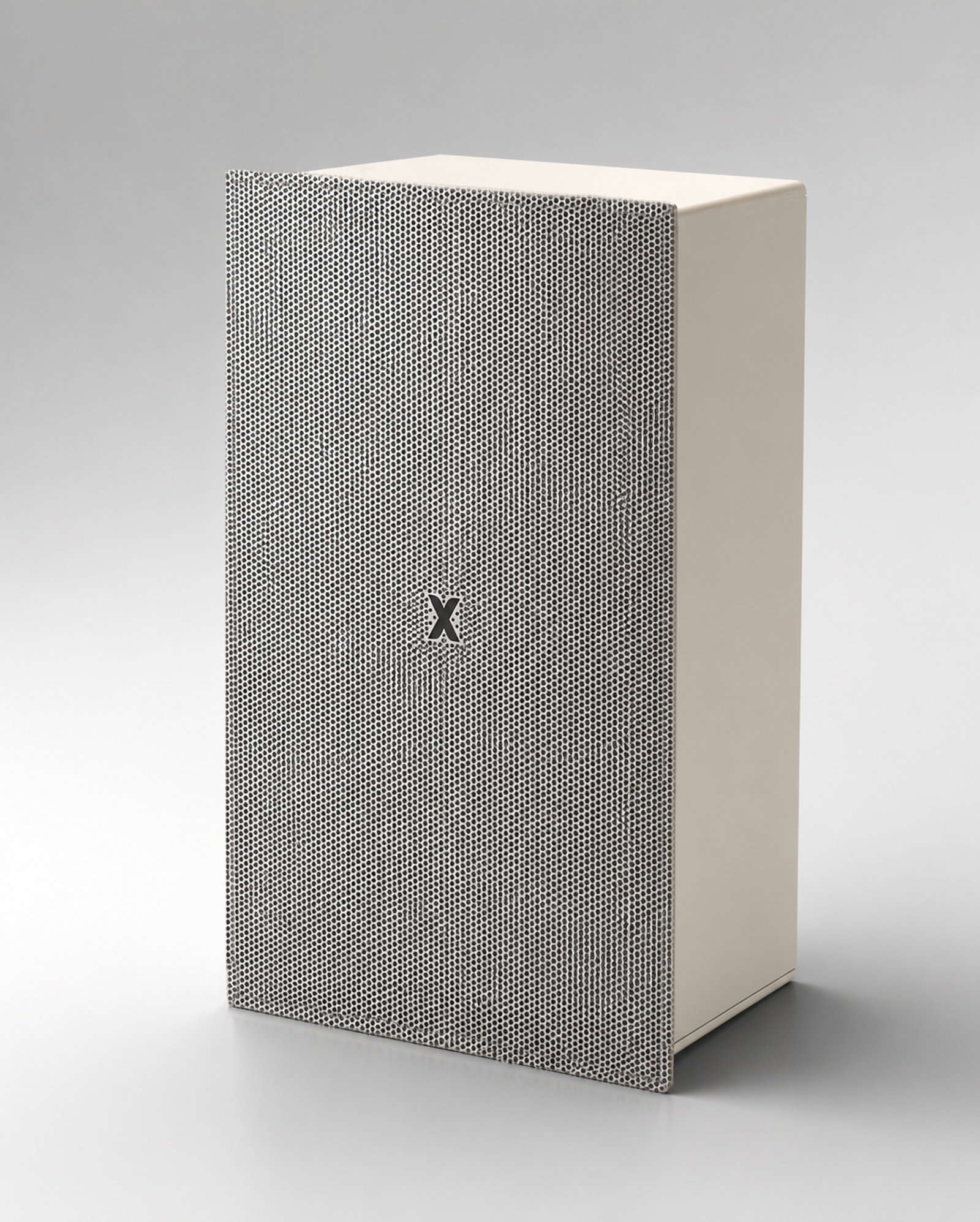

Acacia 10 In-Wall Passive
Flush-mount 10 inch in-wall passive subwoofer. Deep bass down to 35Hz with invisible installation.
Pricing is quoted by your regional distributor. Find yours →
bass without the box.

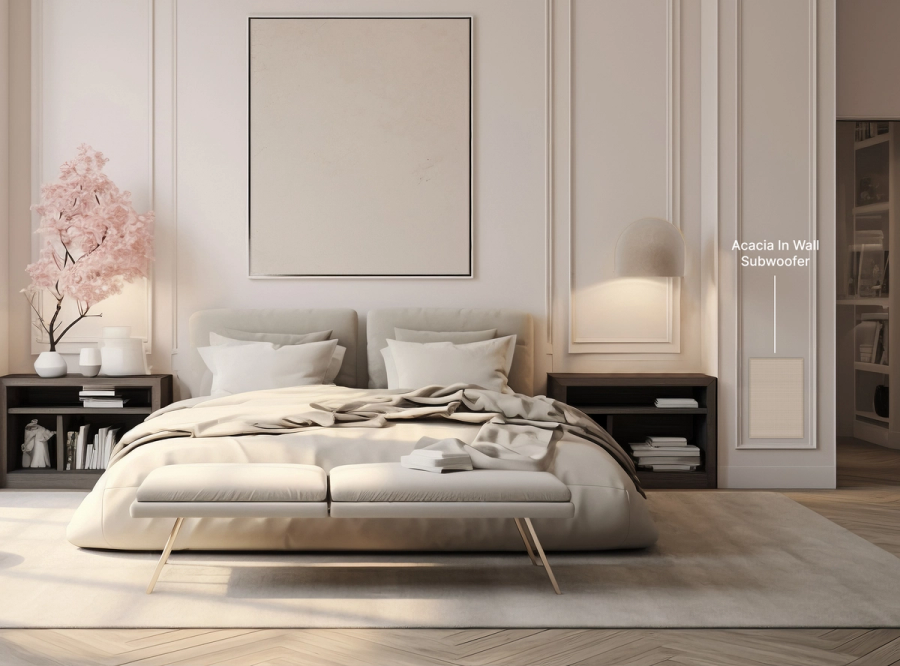

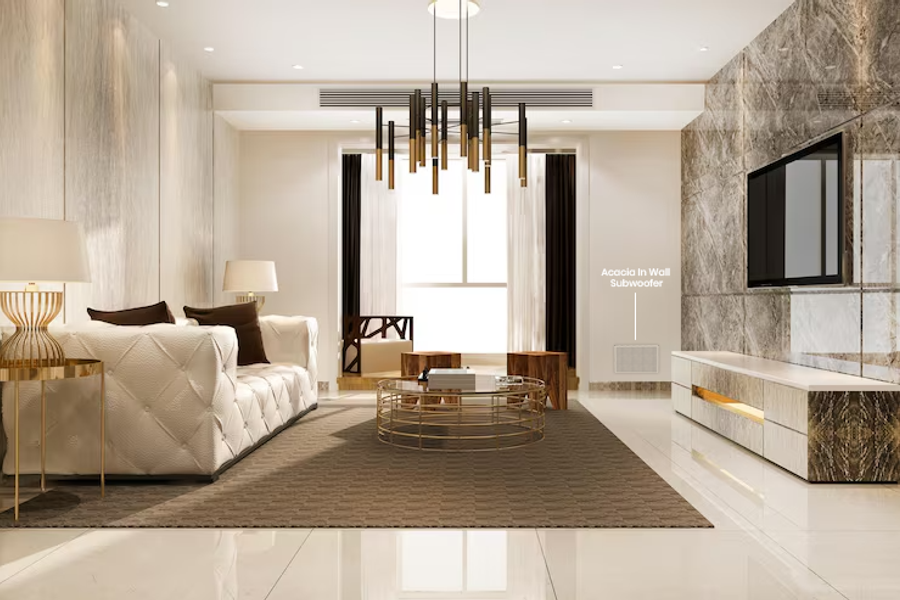

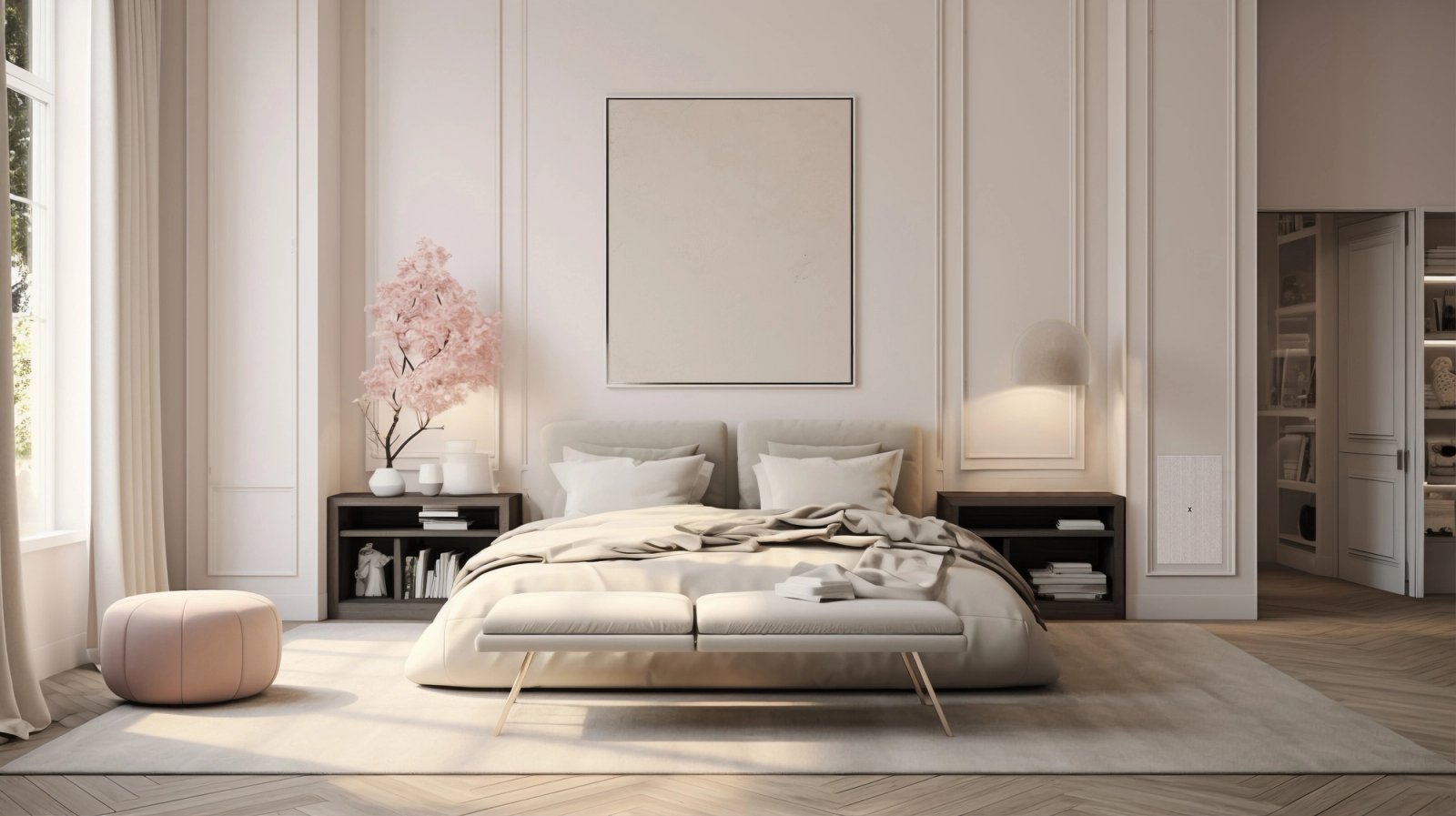

Flush in the wall, with nothing in the room but the low end. Every photo is a real installation; open one to read how it was done.
everything else.
Five drawers. Each opens in place, so nothing leaves the page.
A voice coil that stays cool under drive.
A copper-silver composite voice coil dissipates heat faster than copper alone, so the output holds under continuous high-power drive.
Resonance tuned below the cabinet.
Heavy cone mass lowers the resonant frequency below what the cabinet volume alone would allow, extending the low end of a thin enclosure.
- Power RMS
- 250W
- Power Peak
- 300W
- Impedance
- 4Ω
- Sensitivity
- 88dB
- Frequency
- 35Hz – 300Hz
- Driver
- 1 × 10"
- Dimensions
- H 488 × W 342 × D 103 mm
- Weight
- 13kg
- Housing
- MDF
- Colours
- MDF
- Custom RAL
- +20% · 45–60 days
- Power Type
- Passive
- Cutout
- 463 × 316 mm
- Cavity Depth
- 103mm
- Paintable Grille
- No
- Grille Material
- Mild Steel
- Crossover
- Subwoofer LP only
- Max SPL
- 112dB
- THD+N
- ≤0.2% @ 1W/1m

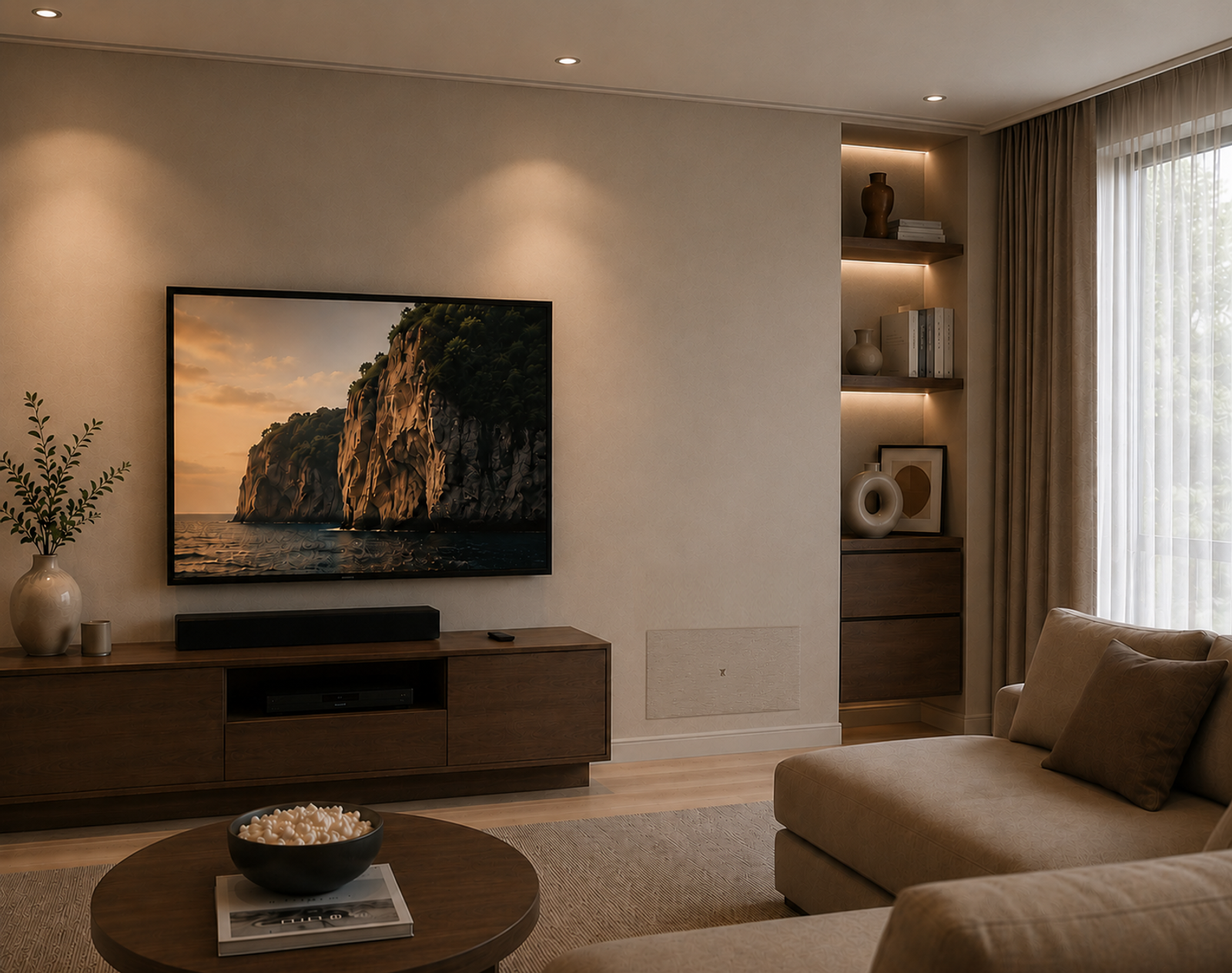

2.1 TV room, flush
A flush pair of Cane with the Acacia 10 In-Wall, driven by a Xylem 3, the Air Mini as the source.
Commercial zones
One speaker every 15–20 ft, a subwoofer for every two, a Root 4 for every eight, and an Air Mini per zone.
A different room? Plan it in two minutes.
Room Solutions suggests the speakers and the sub for your room. Floorplan Sound Simulation predicts the coverage.
Screwed through the cabinet into the wall structure
Acacia 10 In-Wall Passive on the wall; the hardware is in the box.
What is the XSCACE Acacia 10 In-Wall Passive?
Flush-mount 10 inch in-wall passive subwoofer. Deep bass down to 35Hz with invisible installation. The large-format invisible subwoofer for luxury cinema rooms, primary listening rooms, and high-end residential installations in Canada, the UK, and India requiring deep bass without visible enclosures.
What is the frequency response of the Acacia 10 In-Wall Passive?
The Acacia 10 In-Wall Passive covers 35Hz–300Hz.
What is the power output of the Acacia 10 In-Wall Passive?
The Acacia 10 In-Wall Passive is rated at 250W RMS (300W peak) into 4Ω.
What type of product is the Acacia 10 In-Wall Passive?
The Acacia 10 In-Wall Passive is a subwoofer product. Mounting: screwed through the cabinet into the wall structure.
How much space does the Acacia 10 In-Wall Passive need?
The chassis is 488 mm high, 342 mm wide and 103 mm deep.
How deep is the Acacia 10 In-Wall Passive?
The Acacia 10 In-Wall Passive requires 103mm of depth (103mm cavity).
