Products·In-Wall Series·Slim Array Series

QuadCane In-Ceiling / In-Wall

Slim Array In-Ceiling / In-Wall

The QuadCane in flush-mount form. 100W of wide-dispersion audio invisible in your ceiling or wall.

XSP-IC-QAD
100W8Ω150Hz – 20kHzPassive
White onlyMarine Treatable
Add to System →Brochure

Pricing is quoted by your regional distributor. Find yours →

A premium 3D product render of the elongated XSCACE Quadcane In-Wall slim column line array speaker, highlighting its tall architectural profile, luxury champagne gold finish, and fine micro-perforated metallic grille.
Move cursor to illuminate
Design Philosophy
×
No surface constraintThe QuadCane IC installs flush into any flat surface — wall or ceiling — with the same bracket, the same cutout, the same result. Four drivers. One form factor. Zero compromises based on orientation.
×
No draft angle
×
No unnecessary pattern
×
No compromise on finish
→
Four drivers. Any surface.
01 / 05
QuadCane In-Ceiling / In-Wall
QuadCane In-Ceiling / In-Wall
Contents6 sections

Technical Specifications

19 parameters · scroll to explore
Power RMS
100W
fills a large living room
01 / 19
Acoustic
Power RMS
100W
Power Peak
120W
Impedance
8Ω
Sensitivity
95dB
Frequency
150Hz – 20kHz ±3dB
Driver
16
Physical
Dimensions
H 763 × W 43 × D 21 mm
Weight
0.8kg
Housing
Aerospace Grade Aluminium
Colours
White only
Power Type
Passive
Cutout
763 × 43 mm
Cavity Depth
32mm
Paintable Grille
No
Grille Material
Mild Steel
Crossover
Built-In Passive Crossover
Max SPL
116dB
THD+N
≤0.2% @ 1W/1m
Connectivity
THD+N
≤0.2% @ 1W/1m
H 763mmW 43mmD 21mmrotated 90° for display
Spec SheetInstall Guide
Acoustic Measurements

Frequency Response & Directivity

Frequency Response
On-axis · 1W/1m · 150Hz – 20kHz ±3dB · 95 dB sensitivity
Polar Pattern
Normalised polar response · H 140° / V 25° (−6 dB @ 1 kHz)
Proprietary Technology

Built different. By design.

Full Technology Story
PsySculpt
XS-Flow
Nano Resonance
PrecisionXover Array
AeroFrame Chassis
PowerDense Dynamics
Pairs With

Built to work together

An XSCACE QuadCane slim array speaker mounted vertically on a dark textured wall — 21mm deep, sixteen drivers, 95dB sensitivity
Slim Array Series
QuadCane
100W · 8Ω · 95dB
Isometric studio shot of the compact XSCACE Air Amp multiroom streaming audio amplifier, engineered for custom architectural audio systems.
Amplifier Series
Air Amp
80W · 8Ω
The XSCACE Xylem 4 four-channel DSP amplifier in champagne gold, on a wooden console beneath framed artwork — 400W across four channels
Xylem Series
Xylem 4
100W · 8Ω
A 3D product render of the XSCACE Cane architectural in-wall speaker module, showcasing its slim rectangular design, luxury champagne gold finish, and precision micro-perforated metal grille.
Slim Array Series
Cane In-Ceiling / In-Wall
50W · 8Ω · 92dB
In Use

Common installations

2.1 In-Ceiling Setup · High-output in-ceiling + sub + DSP
Source
AVR
Any AVR
Dolby Atmos
Home Cinema 5.1.2 · QuadCane IC LCR · Bonsai IC Surrounds · Ghost Atmos · Acacia 10 IW Sub
Sound Simulation
Don’t see your setup?
Draw your own room, place this speaker in it, and see the predicted coverage before you specify.
Install Guide ↓Build My System →
Mobile App
XSCACE Controller
iOS & Android
XSCACE Controller
When paired with Air Amp or Air Mini, control this speaker from your phone. Volume, sources, multiroom groups, a 10-band parametric EQ, and X-Sense AI room calibration that maps the room as you walk it — all in one app.
Learn more →
Gallery

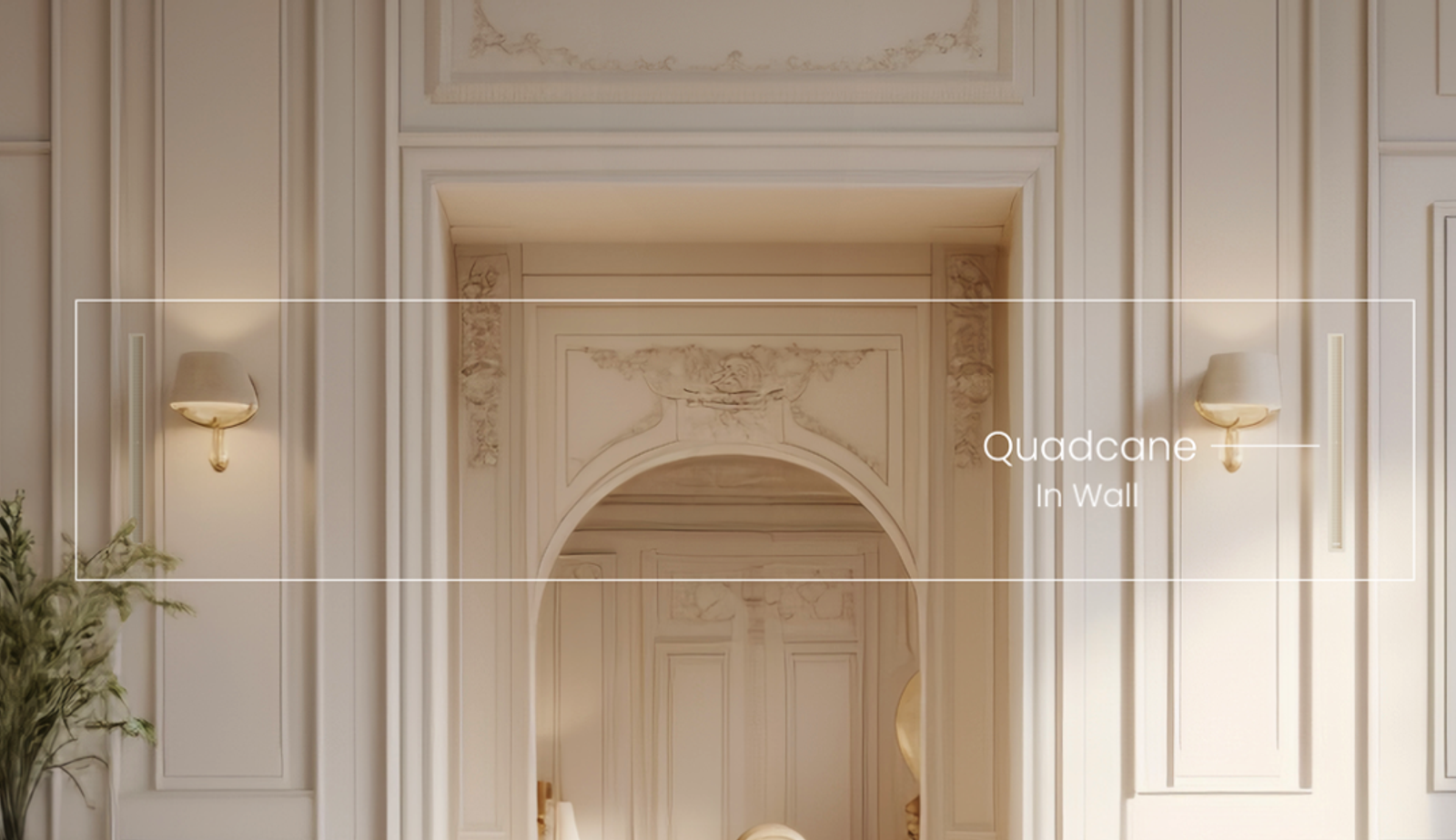

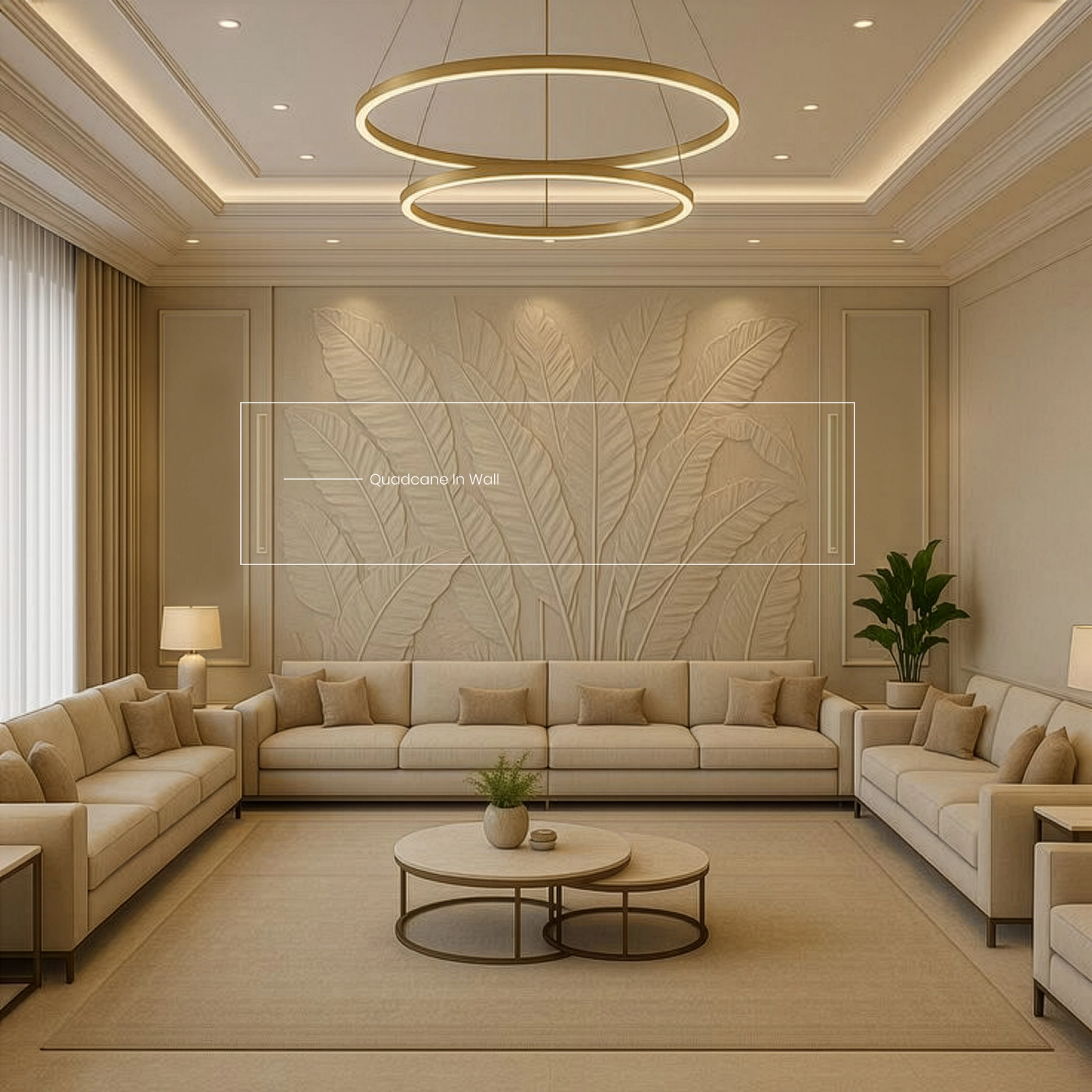

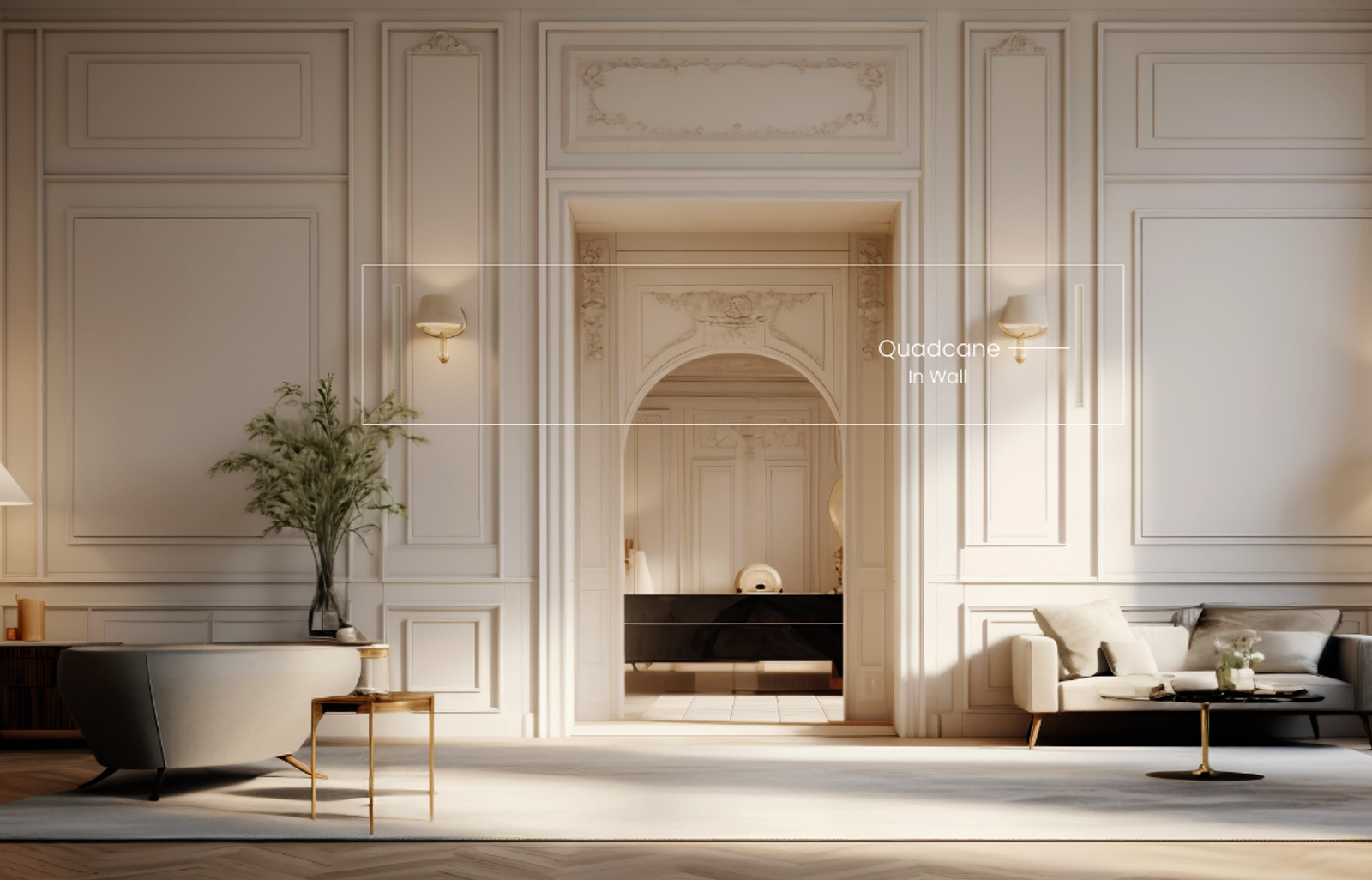

QuadCane In-Ceiling / In-Wall in context

Scroll
QuadCane In-Ceiling / In-Wall 1
QuadCane In-Ceiling / In-Wall 2
QuadCane In-Ceiling / In-Wall 3

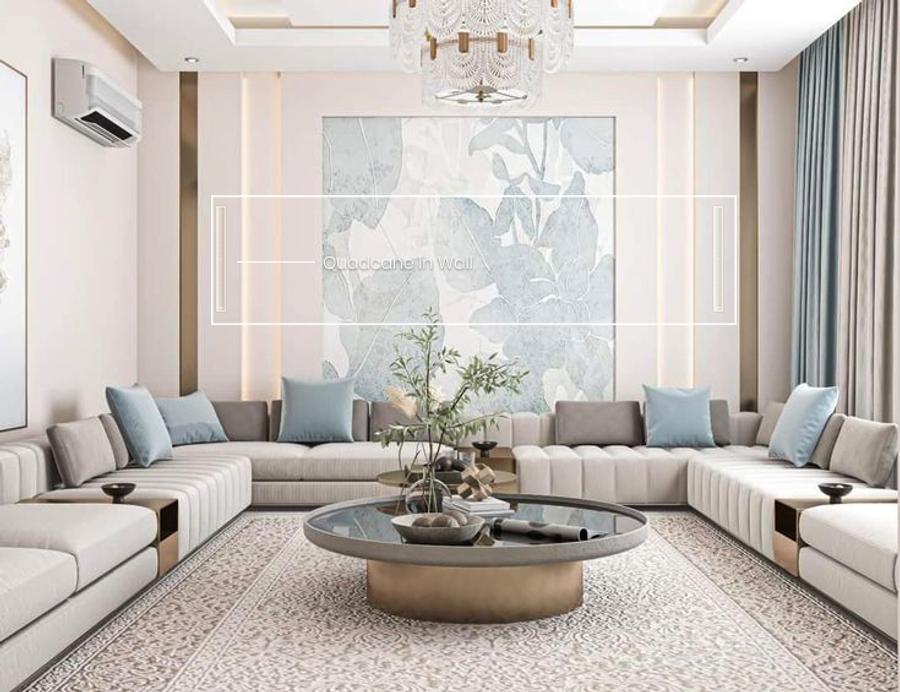

QuadCane In-Ceiling / In-Wall 4

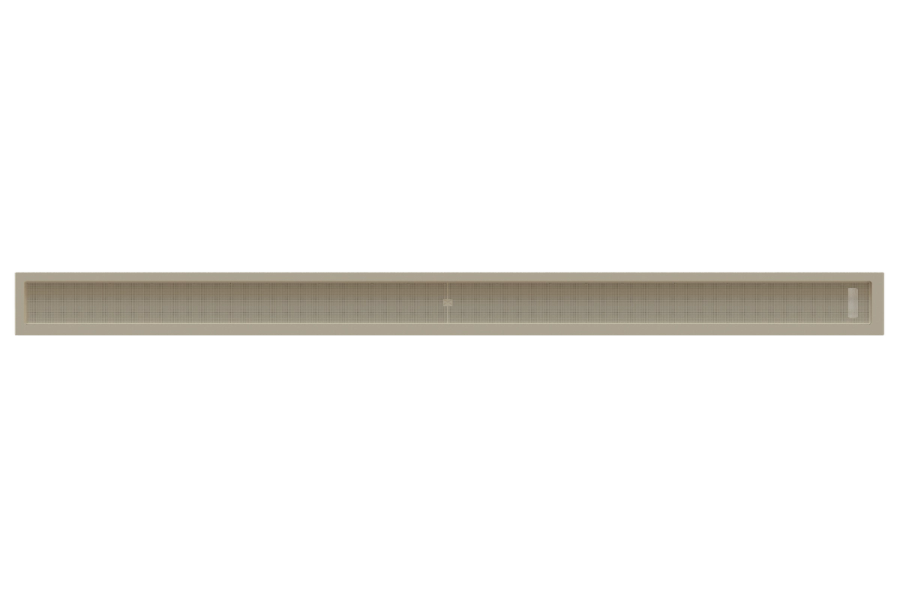

QuadCane In-Ceiling / In-Wall 5

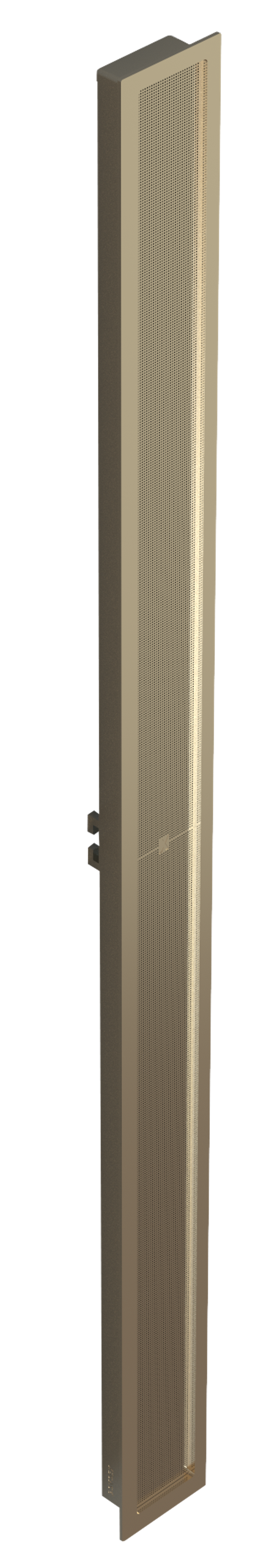

QuadCane In-Ceiling / In-Wall 6
Frequently asked questions5 answers
What is the XSCACE QuadCane In-Ceiling / In-Wall?

Designed for luxury residential and hospitality projects in Canada, the UK, and India requiring wide, even audio coverage from flush ceiling positions.

What is the frequency response of the QuadCane In-Ceiling / In-Wall?

The QuadCane In-Ceiling / In-Wall covers 150Hz–20000Hz (±3dB).

What is the power output of the QuadCane In-Ceiling / In-Wall?

The QuadCane In-Ceiling / In-Wall is rated at 100W RMS (120W peak) into 8Ω.

Is the QuadCane In-Ceiling / In-Wall an in-ceiling, in-wall, or slim-array speaker?

The QuadCane In-Ceiling / In-Wall is an in-wall product, mounted via Spring clip.

How deep is the QuadCane In-Ceiling / In-Wall?

The QuadCane In-Ceiling / In-Wall requires 21mm of depth (32mm cavity), engineered to sit as close to flush as the driver geometry allows. Most premium architectural speakers on the market are 30-40mm deep at their thinnest; at 21mm, the QuadCane In-Ceiling / In-Wall is about 58% of that depth.
