Cane In-Ceiling / In-Wall

Name: Cane In-Ceiling In-Wall
Brand: XSCACE

Slim Array In-Ceiling / In-Wall

The Cane in flush-mount form. Powerful slim array audio invisible in your ceiling or wall.

XSP-IC-CAN

50W8Ω150Hz – 20kHzPassive

White onlyMarine Treatable

Custom RAL

Add to System →Brochure

Pricing is quoted by your regional distributor. Find yours →

A 3D product render of the XSCACE Cane architectural in-wall speaker module, showcasing its slim rectangular design, luxury champagne gold finish, and precision micro-perforated metal grille.

Move cursor to illuminate

Design Philosophy

No surface constraintThe Cane IC installs flush into any flat surface — wall or ceiling — with the same bracket, the same cutout, the same result. One slim-array form factor. Zero compromises based on orientation.

No draft angle

No unnecessary pattern

No compromise on finish

→

Wall or ceiling. One line.

01 / 05

Contents6 sections

Technical Specifications

20 parameters · scroll to explore

Power RMS

50W

fills a large living room

01 / 20

Acoustic

Power RMS

50W

Power Peak

60W

Impedance

8Ω

Sensitivity

92dB

Frequency

150Hz – 20kHz ±3dB

Driver

Physical

Dimensions

H 183.5 × W 43 × D 24 mm

Weight

0.2kg

Housing

Aerospace Aluminium

Colours

White only

Custom RAL

+20% · 45–60 days

Power Type

Passive

Cutout

183 × 43 mm

Cavity Depth

35mm

Paintable Grille

Grille Material

Mild Steel

Crossover

Built-In Passive Crossover

Max SPL

110dB

THD+N

≤0.2% @ 1W/1m

Connectivity

THD+N

≤0.2% @ 1W/1m

Spec Sheet Install Guide

Acoustic Measurements

Frequency Response & Directivity

Frequency Response

On-axis · 1W/1m · 150Hz – 20kHz ±3dB · 92 dB sensitivity

Polar Pattern

Normalised polar response · H 140° / V 25° (−6 dB @ 1 kHz)

Proprietary Technology

Built different. By design.

Full Technology Story

PsySculpt

XS-Flow

Pairs With

Built to work together

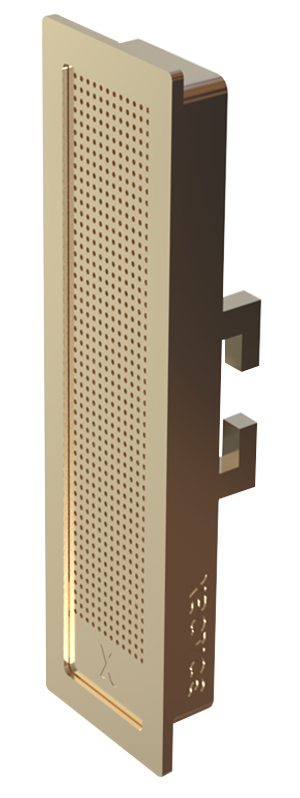

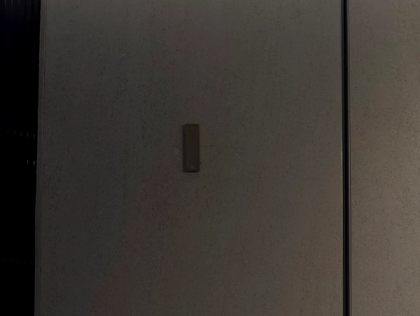

Bonsai In-Ceiling / In-Wall

40W · 8Ω · 86dB

In Use

Common installations

Acacia 10 In-Wall Passive

L/R Speakers

Cane In-Ceiling / In-Wall

×2

2.1 In-Ceiling Setup · In-ceiling + in-wall sub + DSP

Source

Any AVR

Dolby Atmos

Subwoofer

Acacia 10 In-Wall Passive

Bonsai In-Ceiling / In-Wall

×2

LCR

Cane In-Ceiling / In-Wall

×3

Home Cinema 5.1.2 · Cane IW LCR · Bonsai IC surrounds · Ghost 2.0 Atmos · Acacia 10 IW sub · Any AVR

Sound Simulation

Don’t see your setup?

Draw your own room, place this speaker in it, and see the predicted coverage before you specify.

Install Guide ↓Build My System →

Mobile App

iOS & Android

XSCACE Controller

When paired with Air Amp or Air Mini, control this speaker from your phone. Volume, sources, multiroom groups, a 10-band parametric EQ, and X-Sense AI room calibration that maps the room as you walk it — all in one app.

Learn more →

Gallery

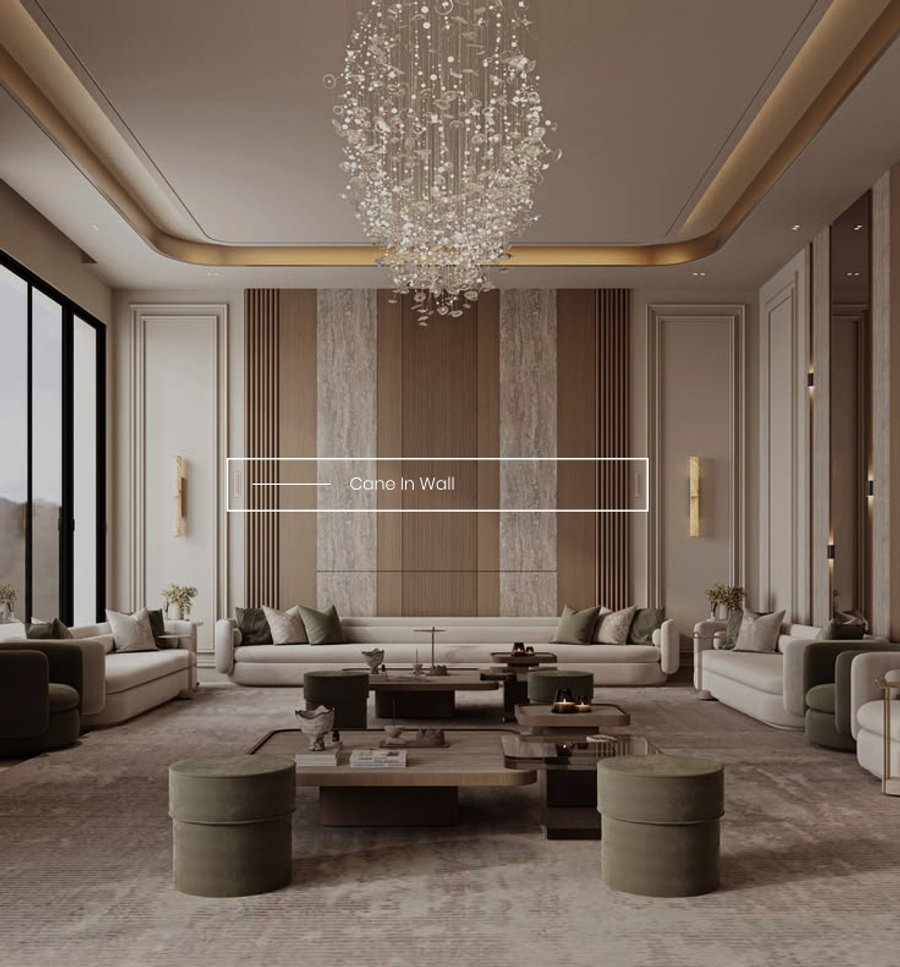

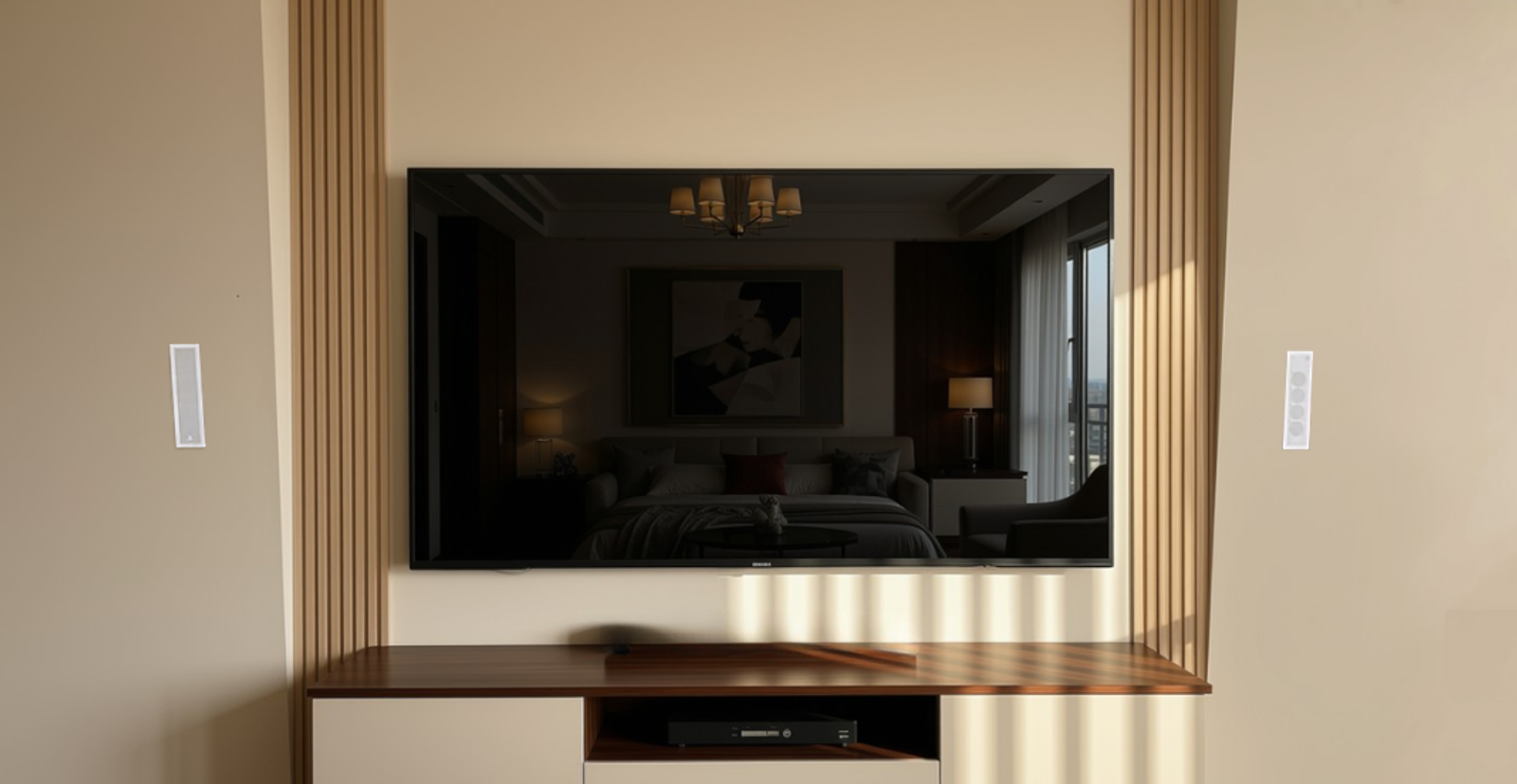

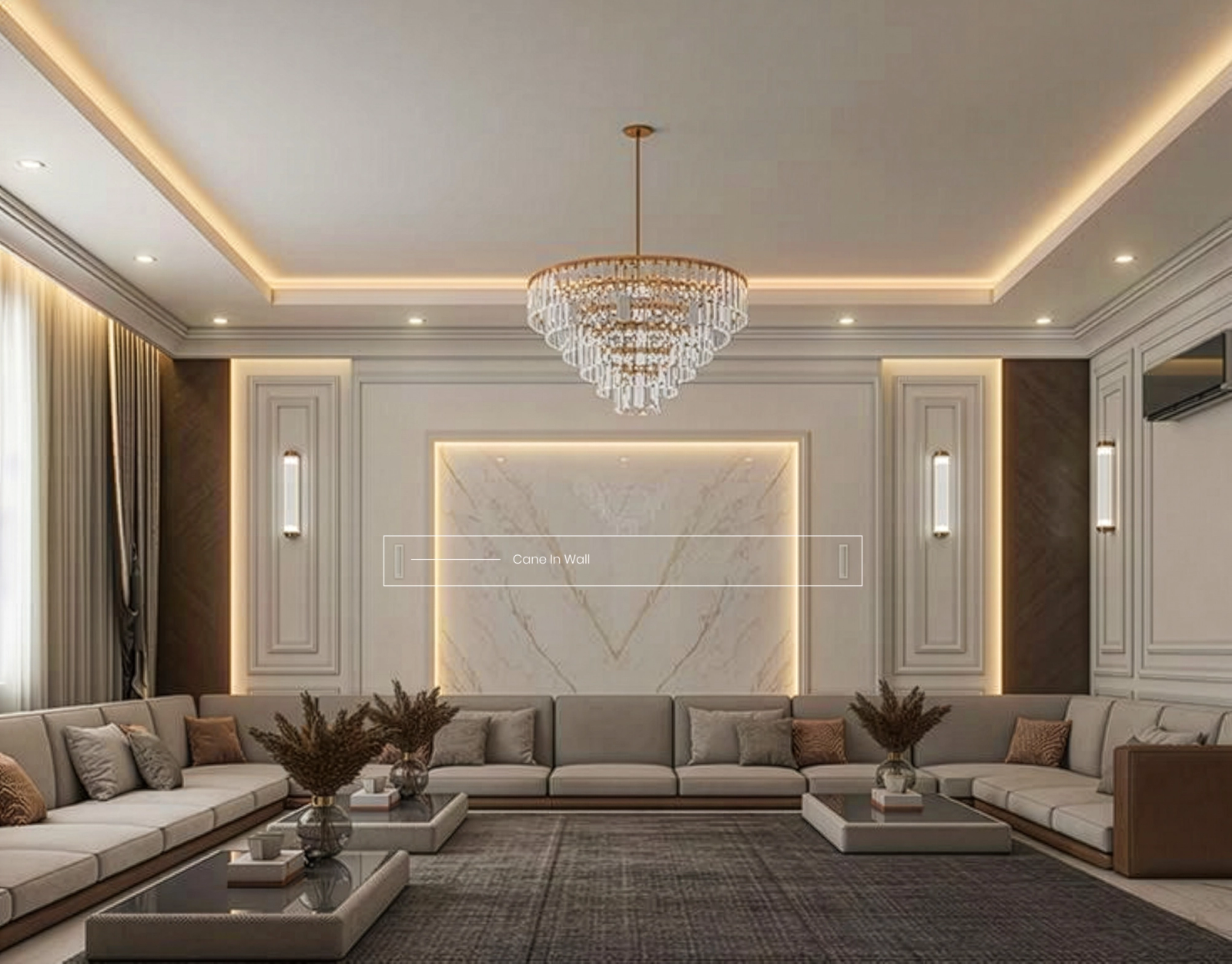

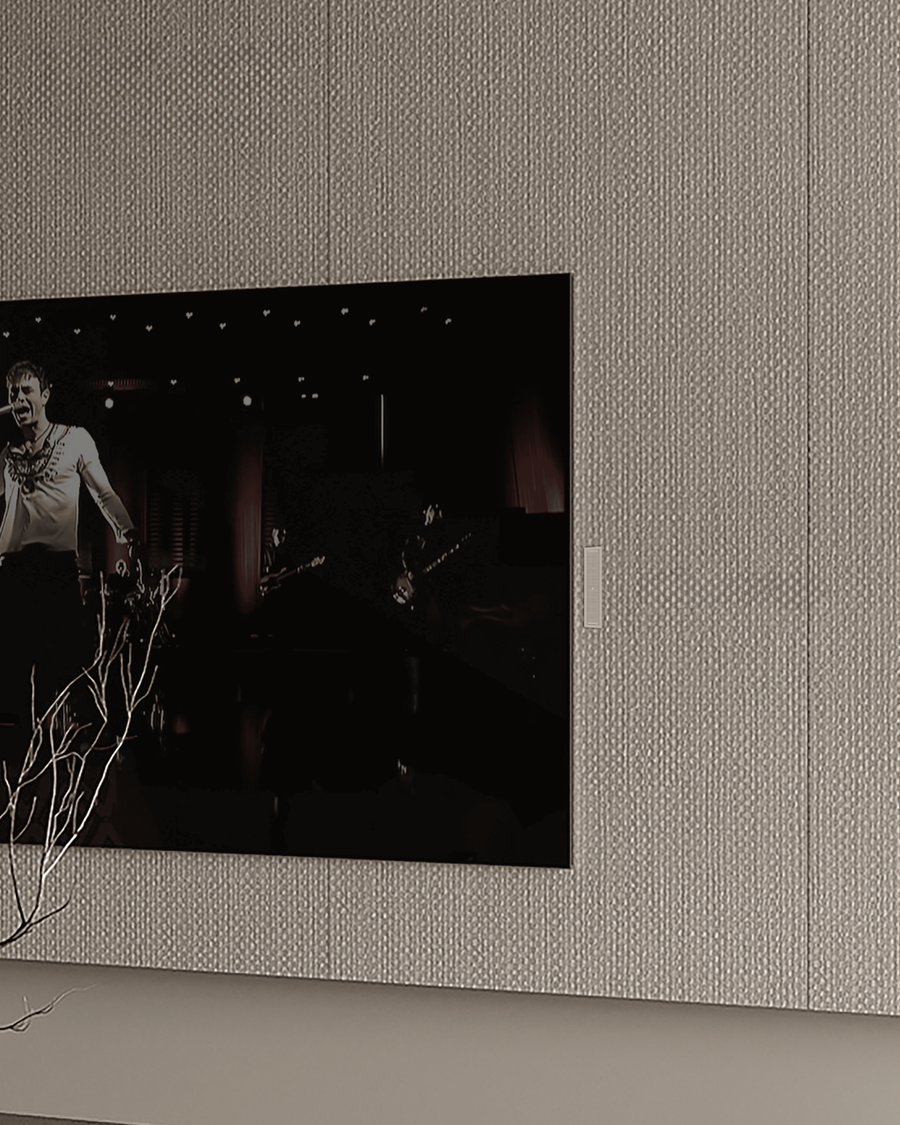

Cane In-Ceiling / In-Wall in context

Scroll

Frequently asked questions5 answers

What is the XSCACE Cane In-Ceiling / In-Wall?

Specified alongside the Cane slim array for unified whole-home audio systems in luxury residential projects across Canada, the UK, and India.

What is the frequency response of the Cane In-Ceiling / In-Wall?

The Cane In-Ceiling / In-Wall covers 150Hz–20000Hz (±3dB).

What is the power output of the Cane In-Ceiling / In-Wall?

The Cane In-Ceiling / In-Wall is rated at 50W RMS (60W peak) into 8Ω.

Is the Cane In-Ceiling / In-Wall an in-ceiling, in-wall, or slim-array speaker?

The Cane In-Ceiling / In-Wall is an in-wall product, mounted via Spring clip.

How deep is the Cane In-Ceiling / In-Wall?

The Cane In-Ceiling / In-Wall requires 24mm of depth (35mm cavity), engineered to sit as close to flush as the driver geometry allows. Most premium architectural speakers on the market are 30-40mm deep at their thinnest; at 24mm, the Cane In-Ceiling / In-Wall is about 67% of that depth.
