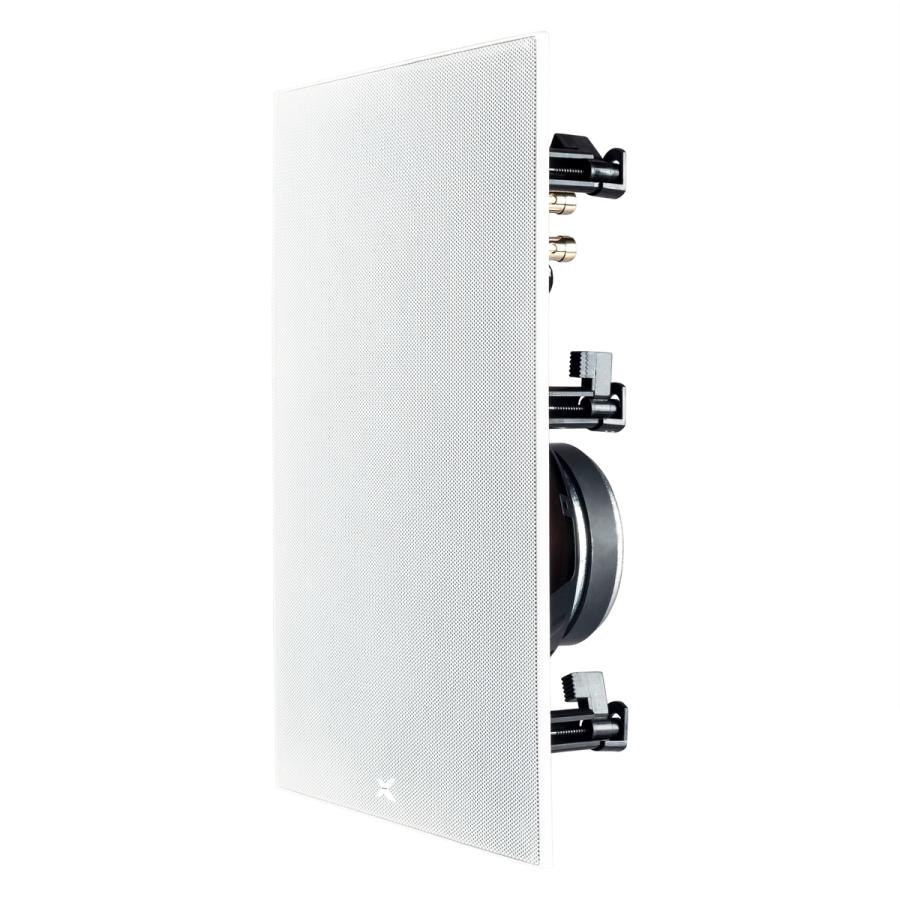

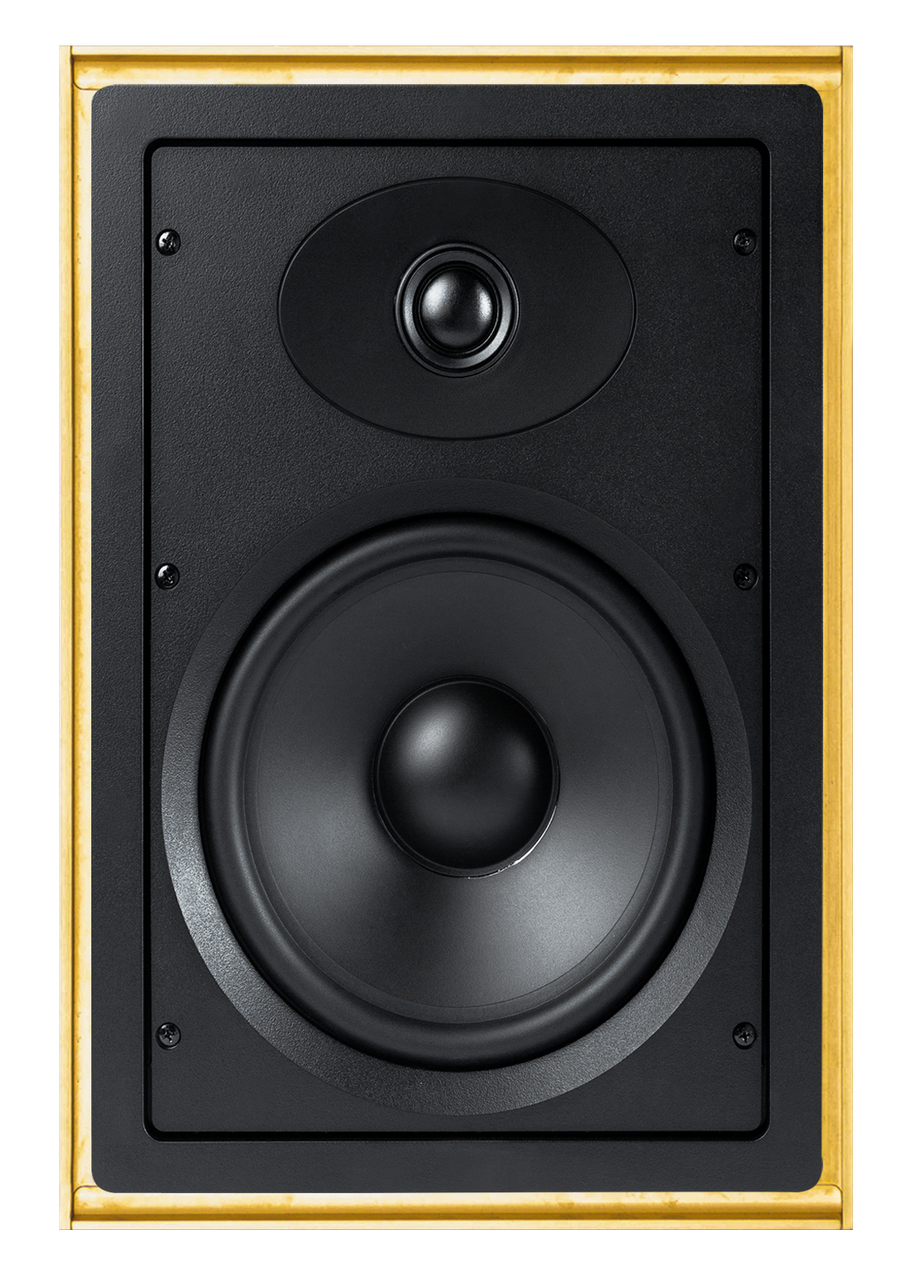

Bergenia
In-Wall Speaker
Bergenia — the compact sibling of the Sage. Rich immersive audio in a slim footprint.
XSP-IW-BER
80W8Ω55Hz – 22kHzPassive
WhiteCustom RALCustom FabricStainless Steel Champagne Frame
Move cursor to illuminate
Design Philosophy
×
No timbre shiftThe Bergenia is voice-matched to the Sage LCR. As sound moves from the front stage to the surround field, the tonal character remains identical — no colouration, no sense of leaving one speaker and entering another.
×
No cabinet resonance
×
No pointing required
×
No visible hardware
→
The surround field, complete.
01 / 05
Technical Specifications
21 parameters · scroll to explore
Power RMS
80W
fills a large living room
01 / 21
Acoustic
Power RMS
80W
Power Peak
125W
Impedance
8Ω
Sensitivity
86dB
Frequency
55Hz – 22kHz ±3dB
Driver
2
Physical
Dimensions
349.8 × 254 × 111.8 mm
Weight
3.2kg
Housing
ABS
Colours
White
Custom RAL
Available
Power Type
Passive
Cutout
224.8 × 327.7 mm
Cavity Depth
124mm
Paintable Grille
Yes
Grille Material
Mild Steel
Paintable Grille
Yes
Crossover
Built-In Passive Crossover (2-way)
Max SPL
107dB
THD+N
≤0.2% @ 1W/1m
Connectivity
THD+N
≤0.2% @ 1W/1m
Acoustic Measurements
Frequency Response & Directivity
Frequency Response
On-axis · 1W/1m · 55Hz – 22kHz ±3dB · 86 dB sensitivity
Polar Pattern
Normalised polar response · H 180° / V 25° (−6 dB @ 1 kHz)
Proprietary Technology
Built different. By design.
In Use
Common installations
Source
Any AVR
Dolby Atmos
AI System Builder
Don't see your setup?
Tell the AI your room, budget and use case — get a complete system in seconds.
Technical Documents
Downloads
Mobile App
iOS & Android
XSCACE Controller
When paired with Air Amp or Air Mini, control this speaker from your phone. Volume, balance, channel select, X-Sense AI room calibration, and streaming — all in one app.
Learn more →

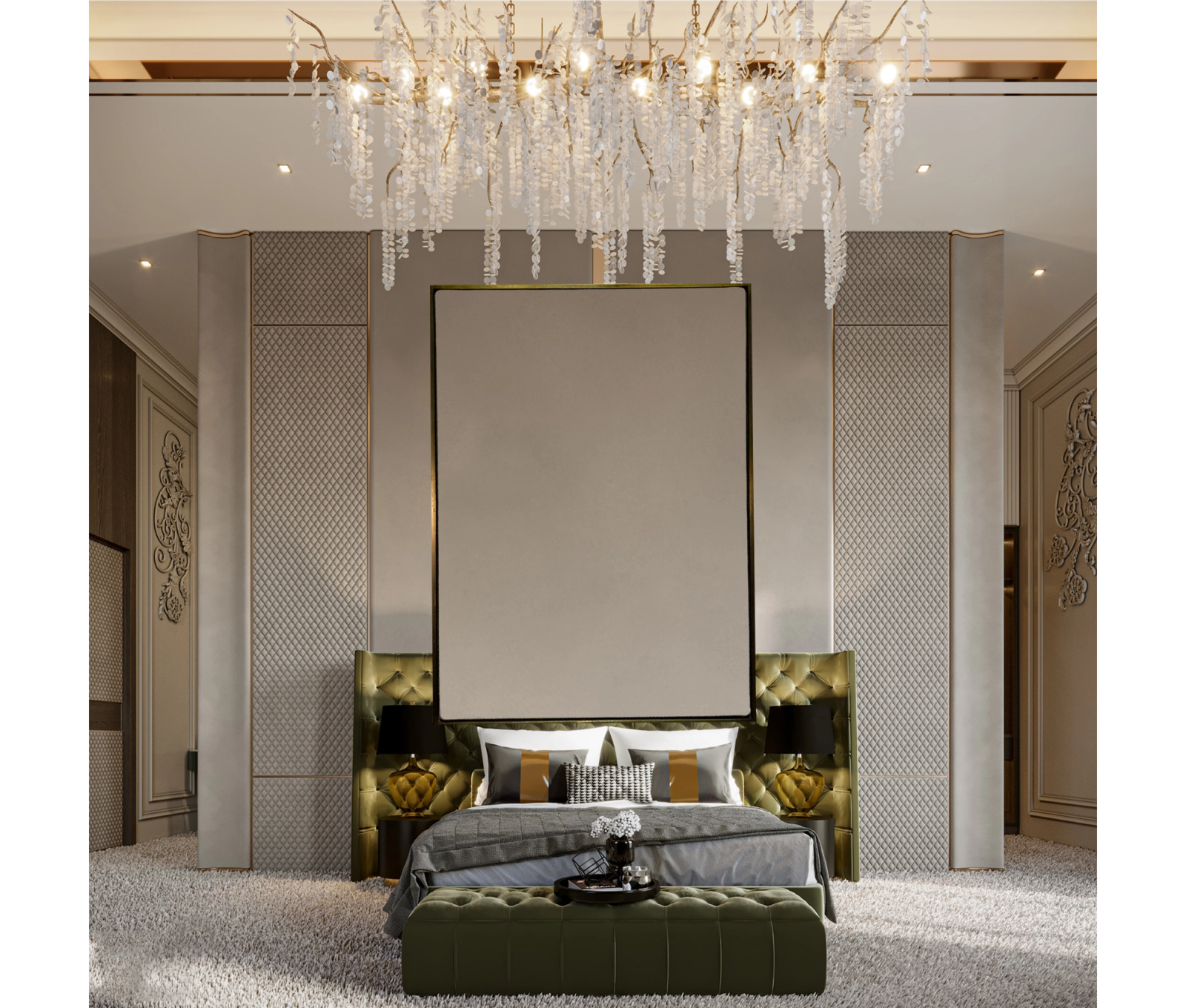

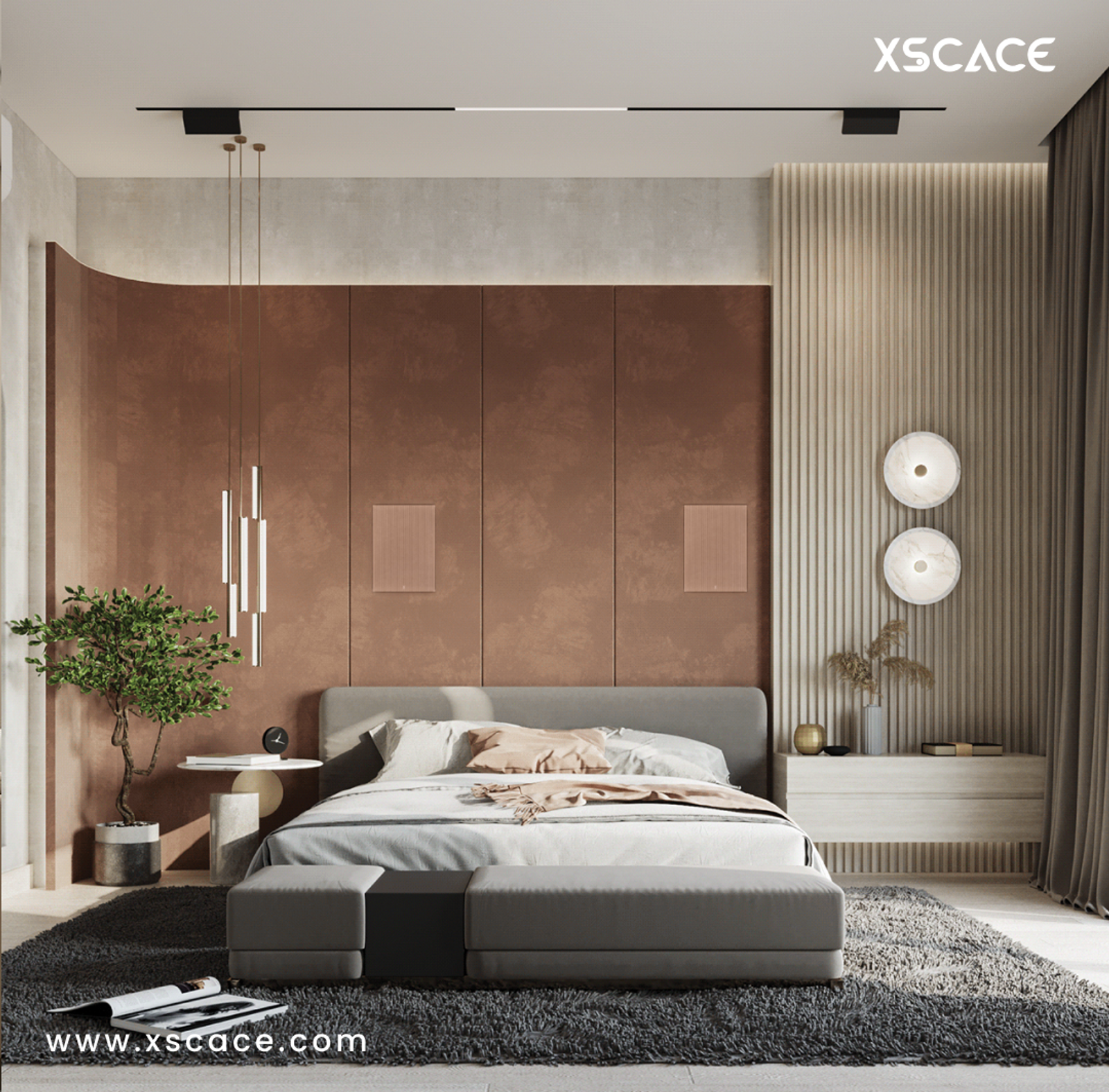

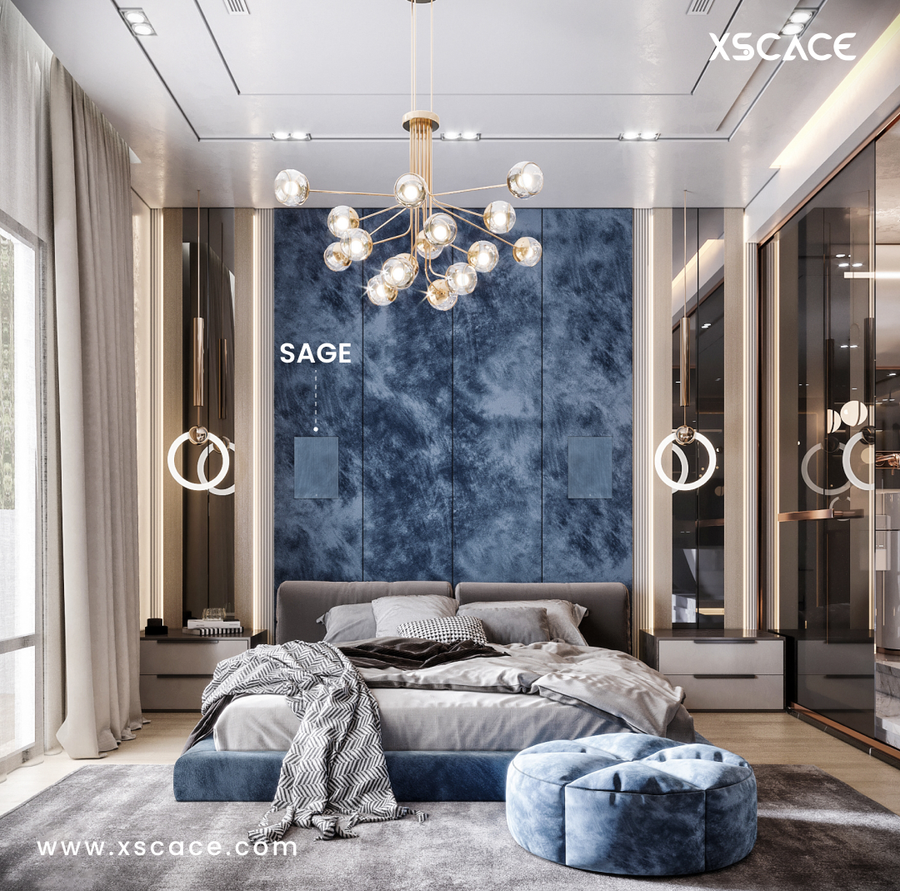

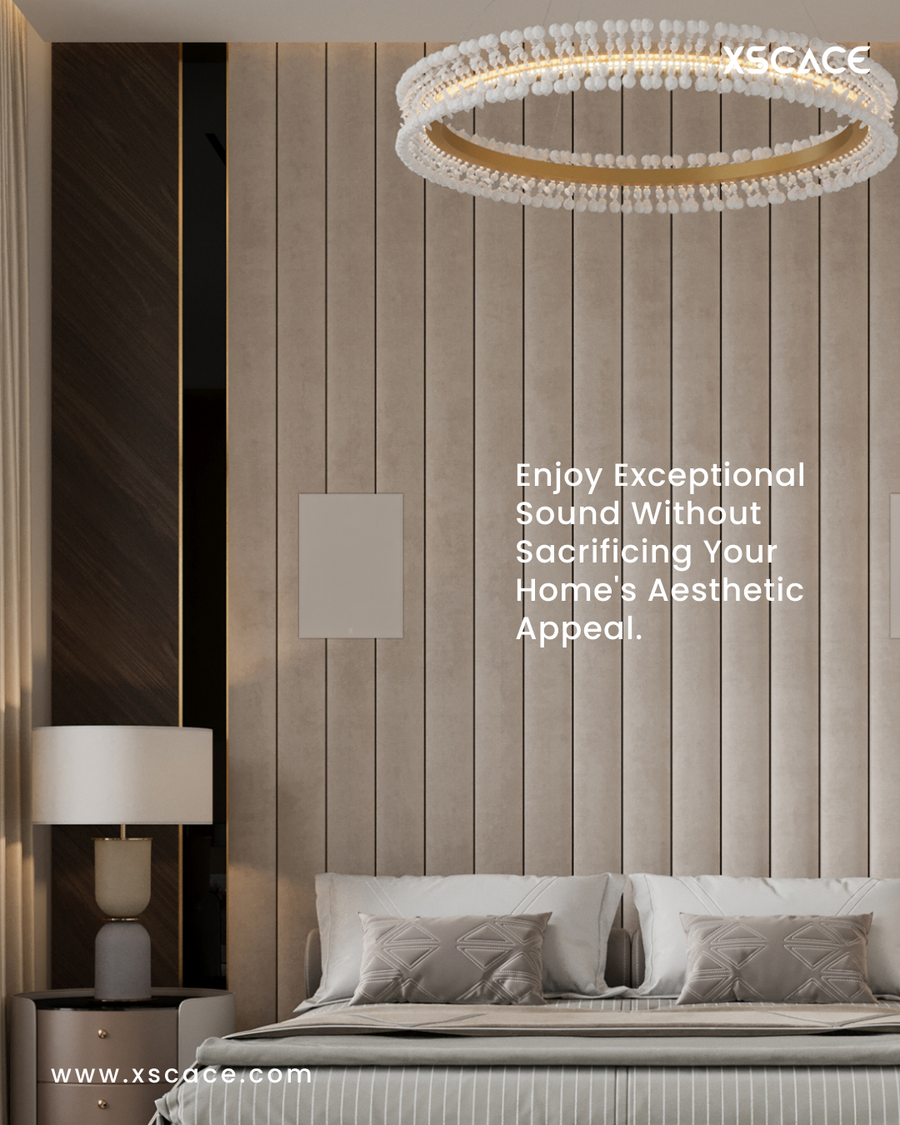

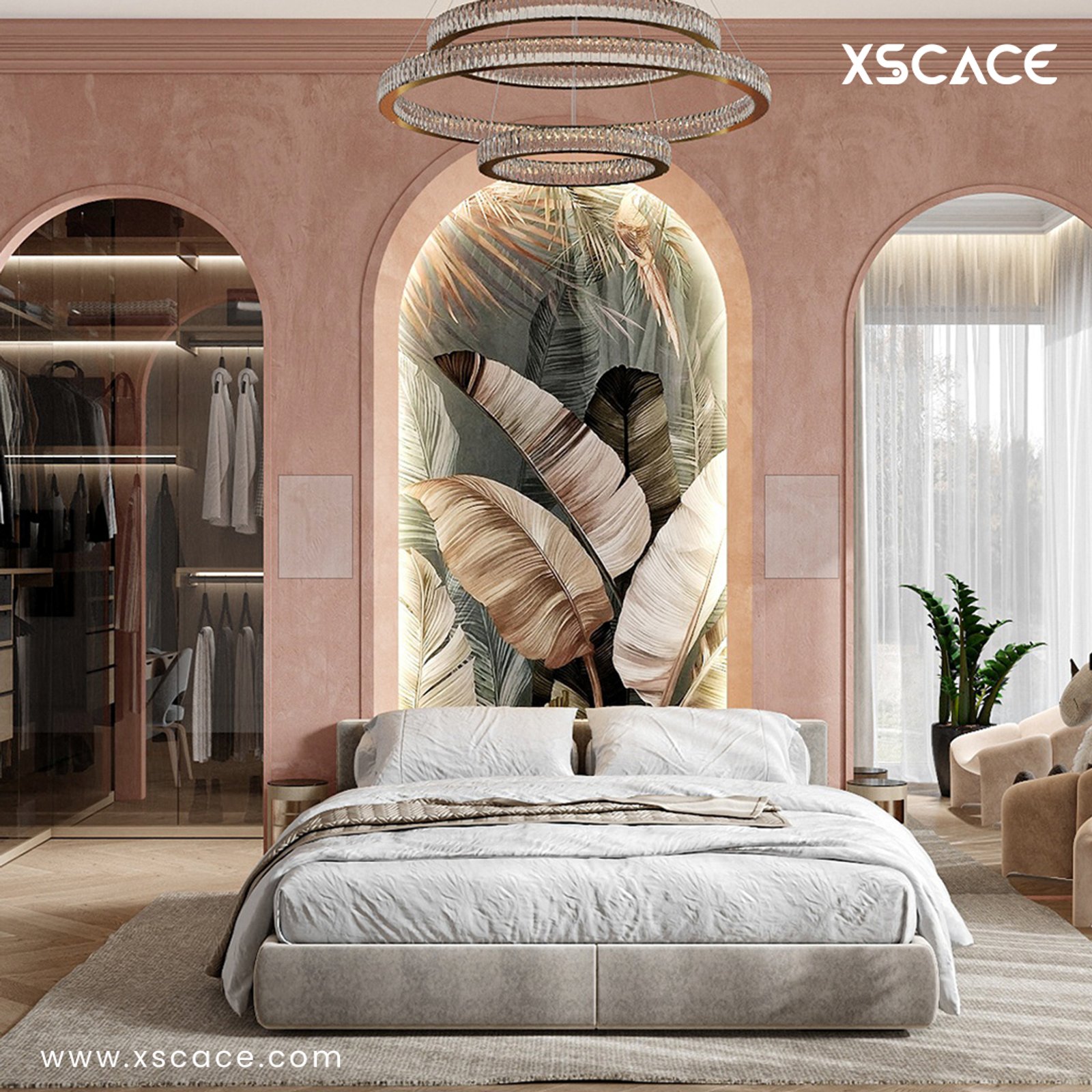

Gallery
Bergenia in context
Scroll
