Sage

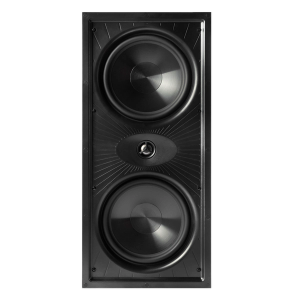

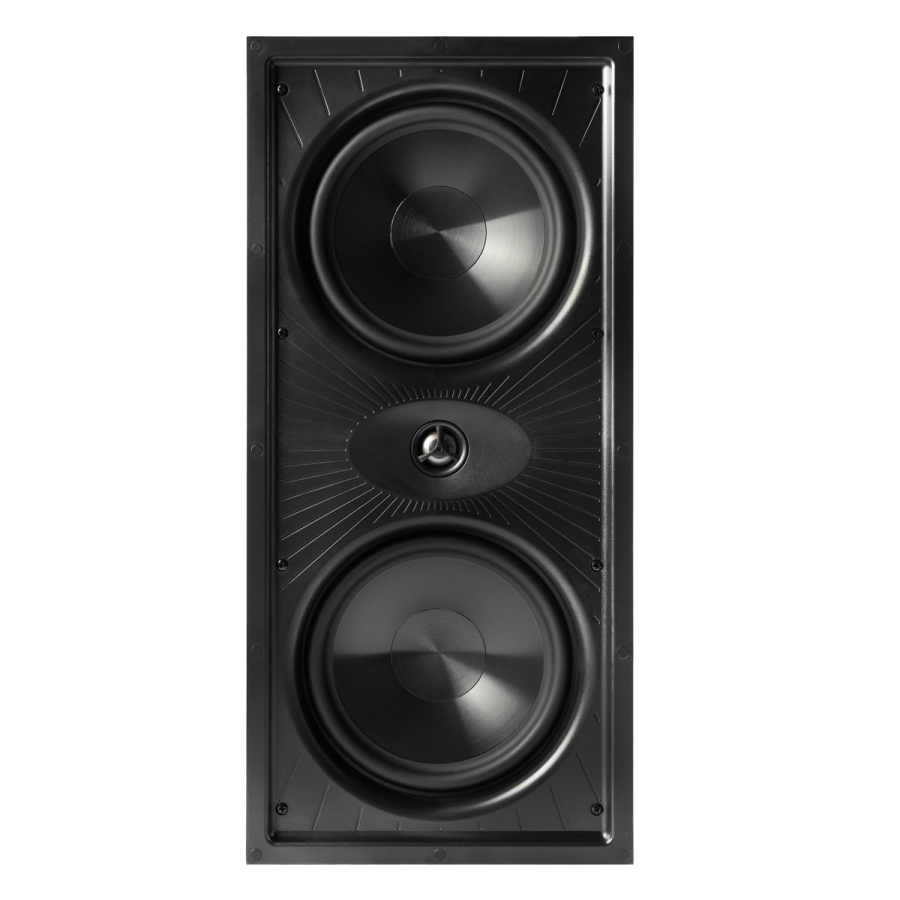

Name: Sage In-Wall Speaker
Brand: XSCACE

In-Wall Speaker

Elegant in-wall speakers maintaining XSCACE slim profile while offering immersive width. Titanium soft dome tweeter.

XSP-IW-SAG

150W8Ω45Hz – 22kHzPassive

White · Custom RAL Grille +20%

Custom RAL

Custom Fabric

Stainless Steel Champagne Frame

Add to System →Brochure

Pricing is quoted by your regional distributor. Find yours →

Move cursor to illuminate

Design Philosophy

No timbre mismatchThe Sage is voice-matched across its 2-way crossover for a flat, consistent response from 45Hz to 22kHz. What the recording engineer heard is what reaches the listener — no colouration, no upper-mid push.

No cabinet resonance

No off-axis degradation

No visible hardware

→

45Hz to 22kHz. In the wall.

01 / 05

Contents7 sections

Technical Specifications

20 parameters · scroll to explore

Power RMS

150W

fills a large living room

01 / 20

Acoustic

Power RMS

150W

Power Peak

250W

Impedance

8Ω

Sensitivity

88dB

Frequency

45Hz – 22kHz ±3dB

Driver

Physical

Dimensions

H 555.8 × W 254.8 × D 99.8 mm

Weight

4.43kg

Housing

ABS

Colours

White, Custom RAL Grille +20%

Custom RAL

+20% · 45–60 days

Power Type

Passive

Cutout

534 × 233 mm

Cavity Depth

112mm

Paintable Grille

Yes

Grille Material

Mild Steel

Crossover

Built-In Passive Crossover (2-way)

Max SPL

112dB

THD+N

≤0.2% @ 1W/1m

Connectivity

THD+N

≤0.2% @ 1W/1m

Spec Sheet Install Guide

Acoustic Measurements

Frequency Response & Directivity

Frequency Response

On-axis · 1W/1m · 45Hz – 22kHz ±3dB · 88 dB sensitivity

Polar Pattern

Normalised polar response · H 180° / V 25° (−6 dB @ 1 kHz)

Proprietary Technology

Built different. By design.

Full Technology Story

Pairs With

Built to work together

In Use

Common installations

Source

Any AVR

Dolby Atmos

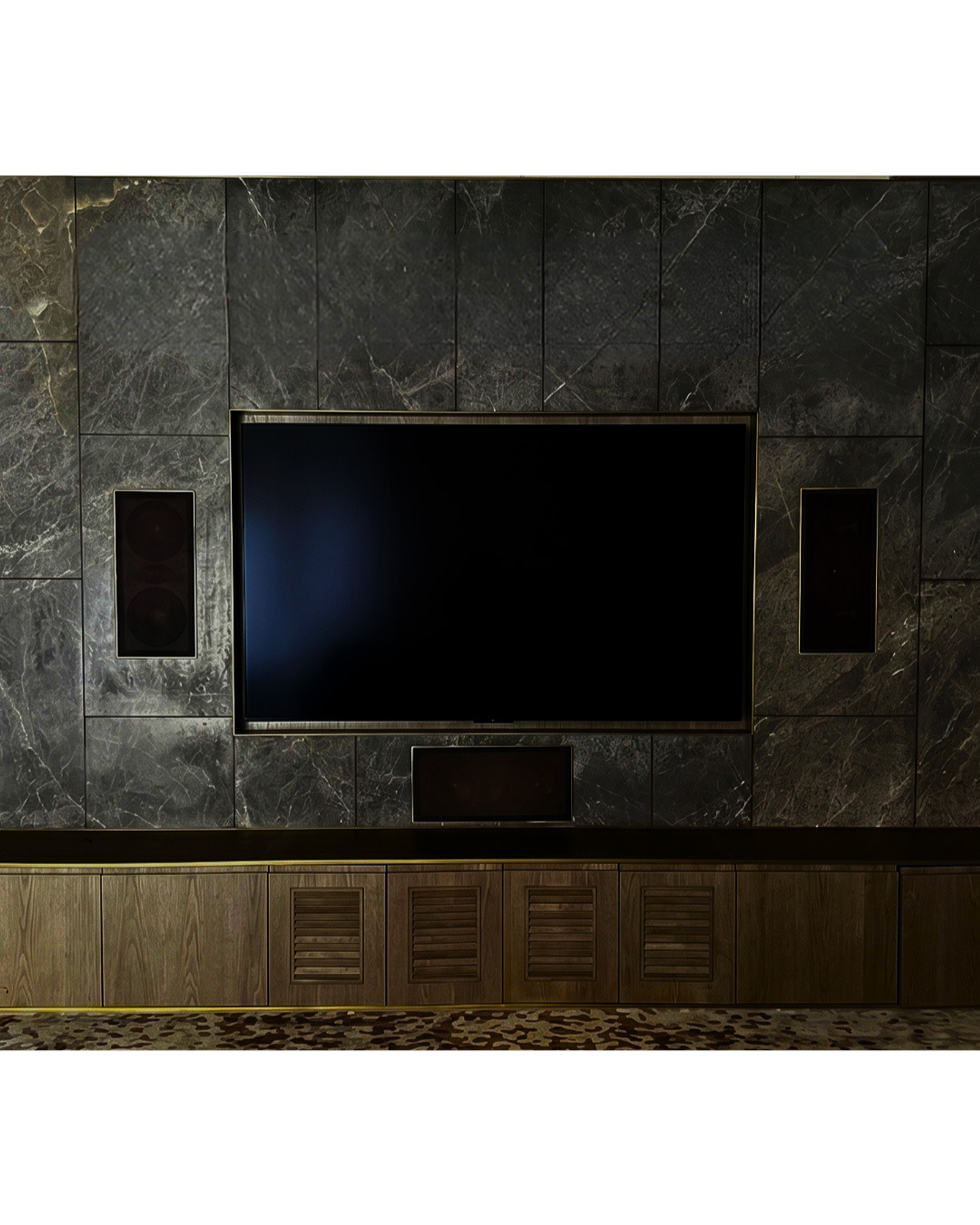

Home Cinema 7.1.4 · Any Surround Processor · Custom 18–21″ Subwoofer × 2–4 depending on room

Sound Simulation

Don’t see your setup?

Draw your own room, place this speaker in it, and see the predicted coverage before you specify.

Install Guide ↓Build My System →

Technical Reading

Engineering notes.

Engineering notes and technical background on the Sage — how it is built, measured and configured.

Article

In-Wall vs In-Ceiling Speakers — Which Is Right for Your Project?

In-wall and in-ceiling speakers are both architectural — but mounting position changes the acoustic character …

Mobile App

iOS & Android

XSCACE Controller

When paired with Air Amp or Air Mini, control this speaker from your phone. Volume, sources, multiroom groups, a 10-band parametric EQ, and X-Sense AI room calibration that maps the room as you walk it — all in one app.

Learn more →

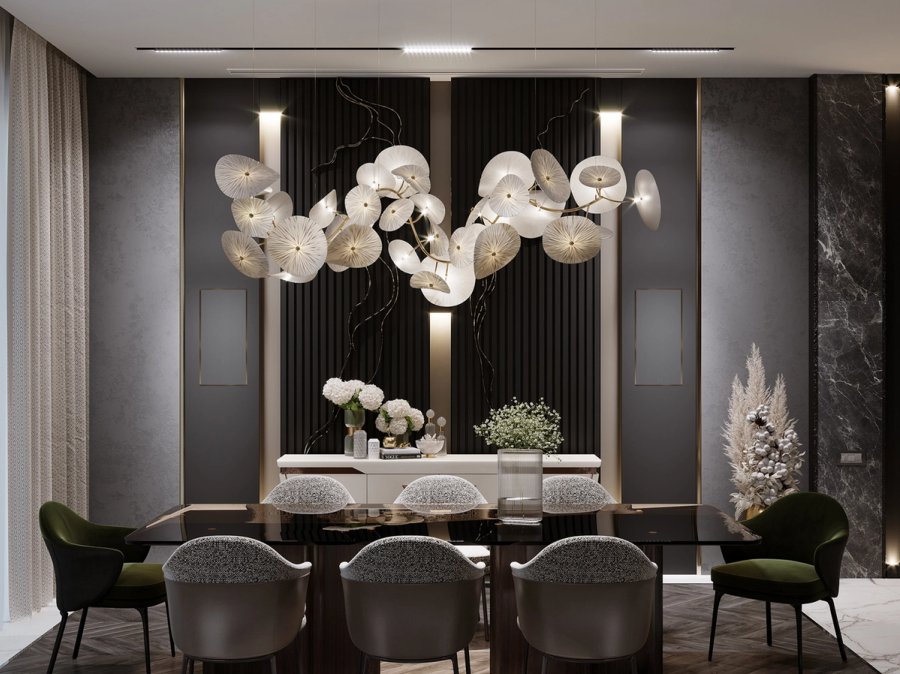

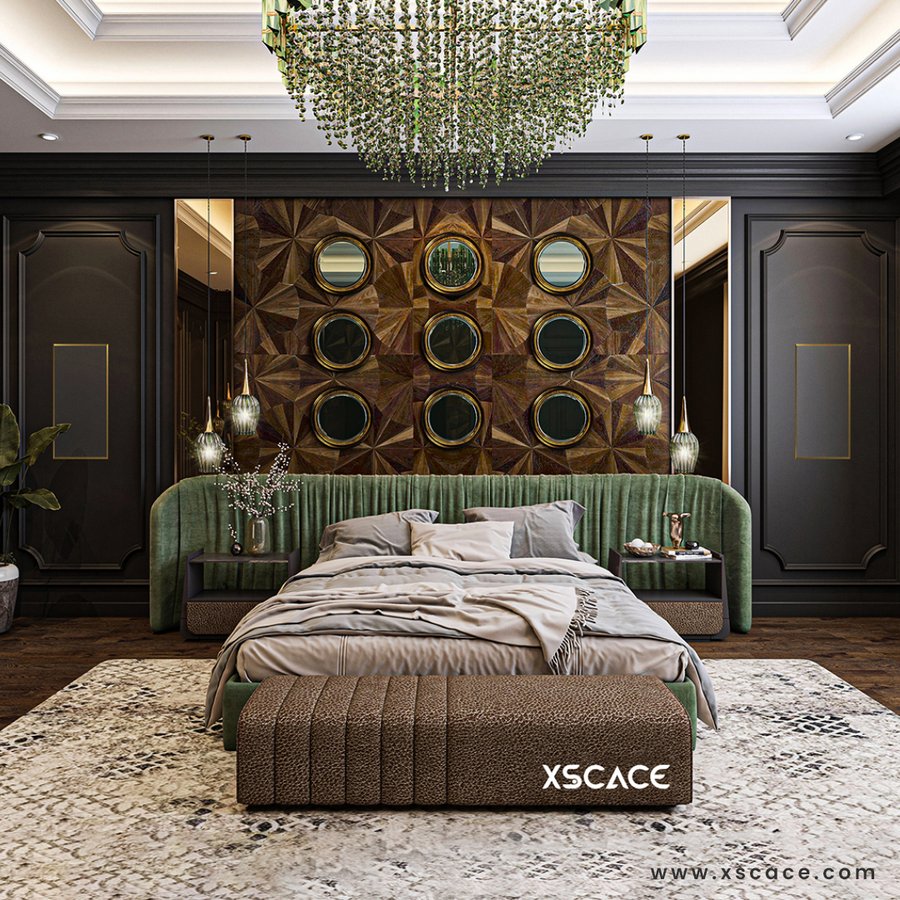

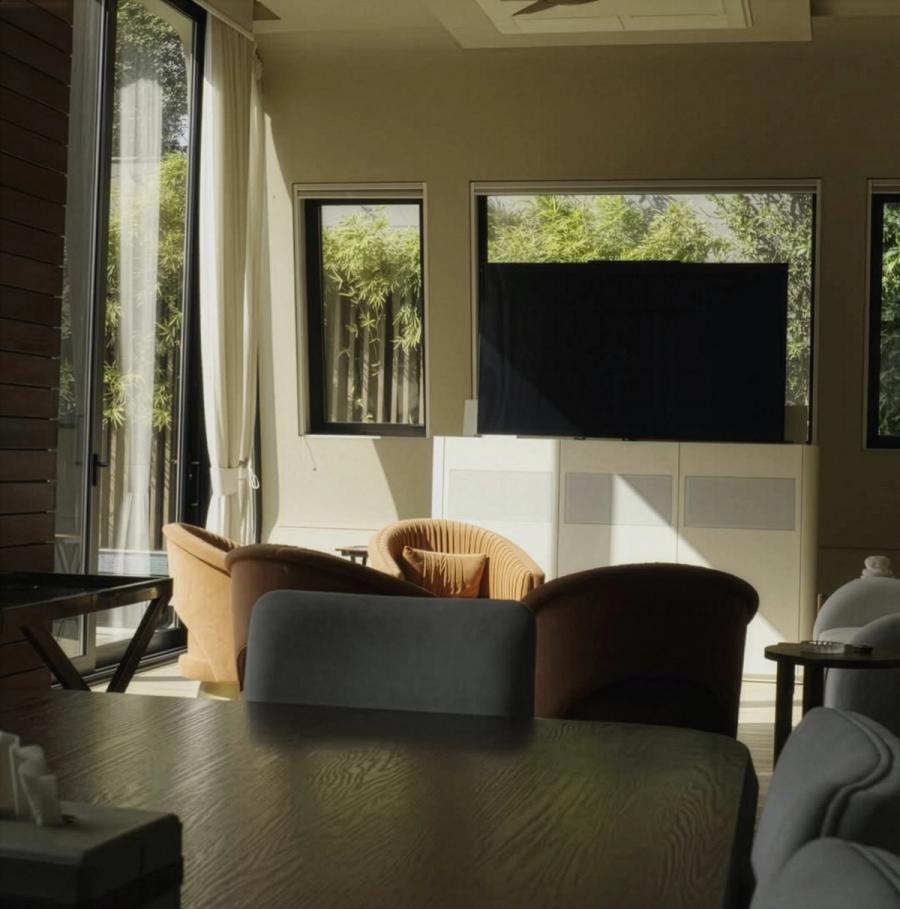

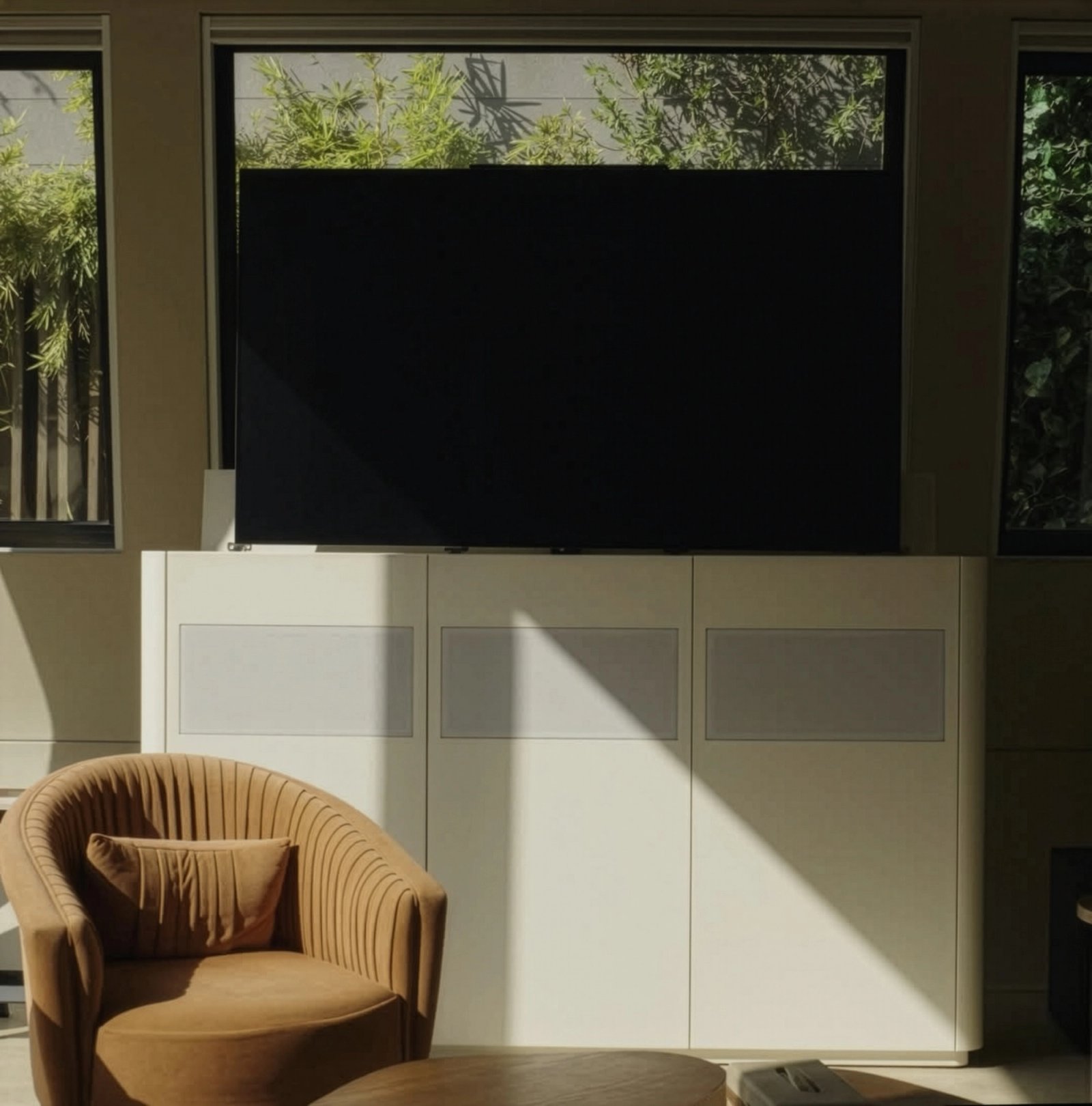

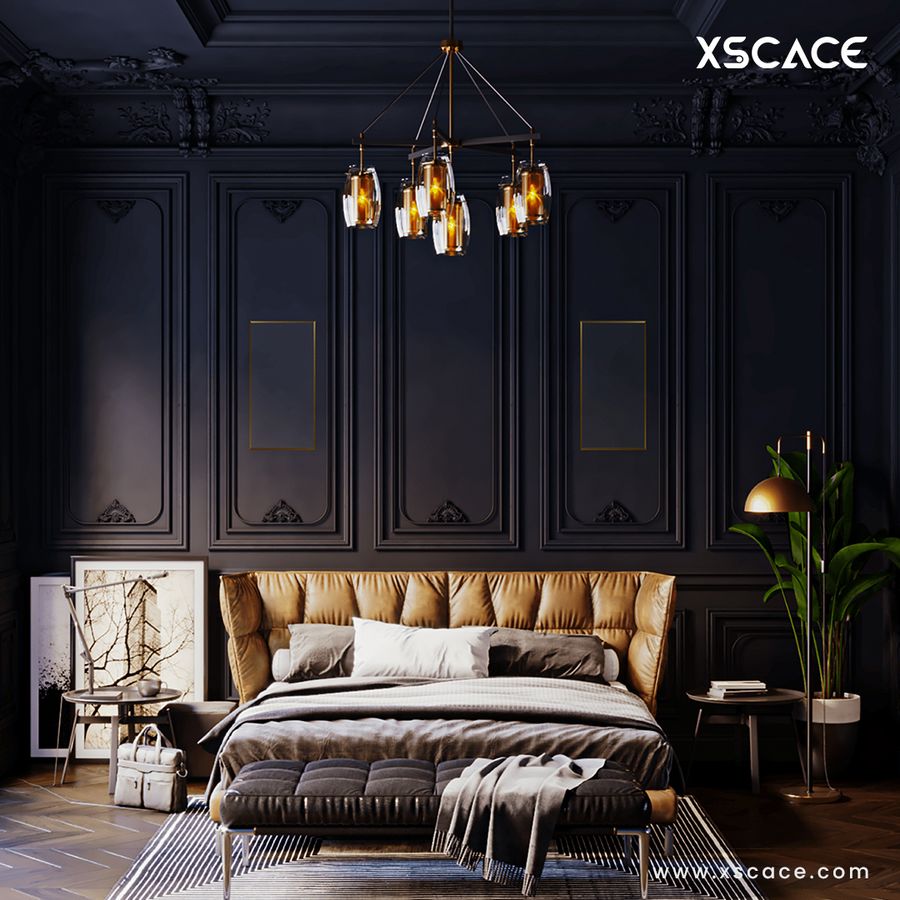

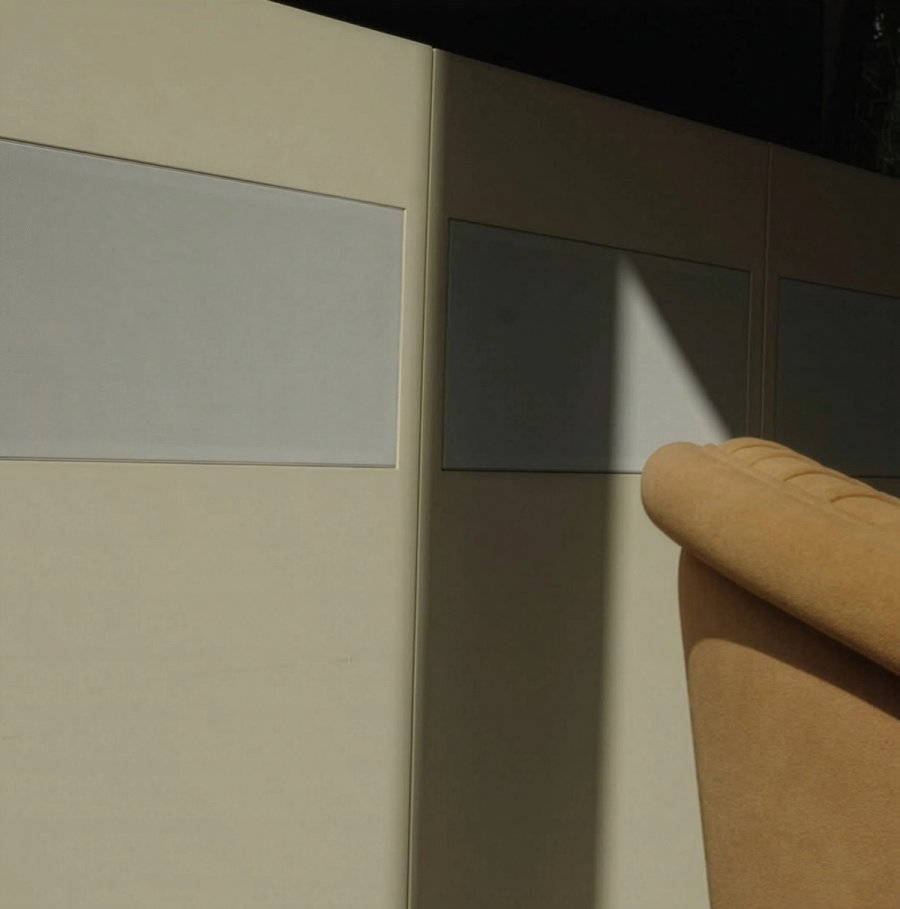

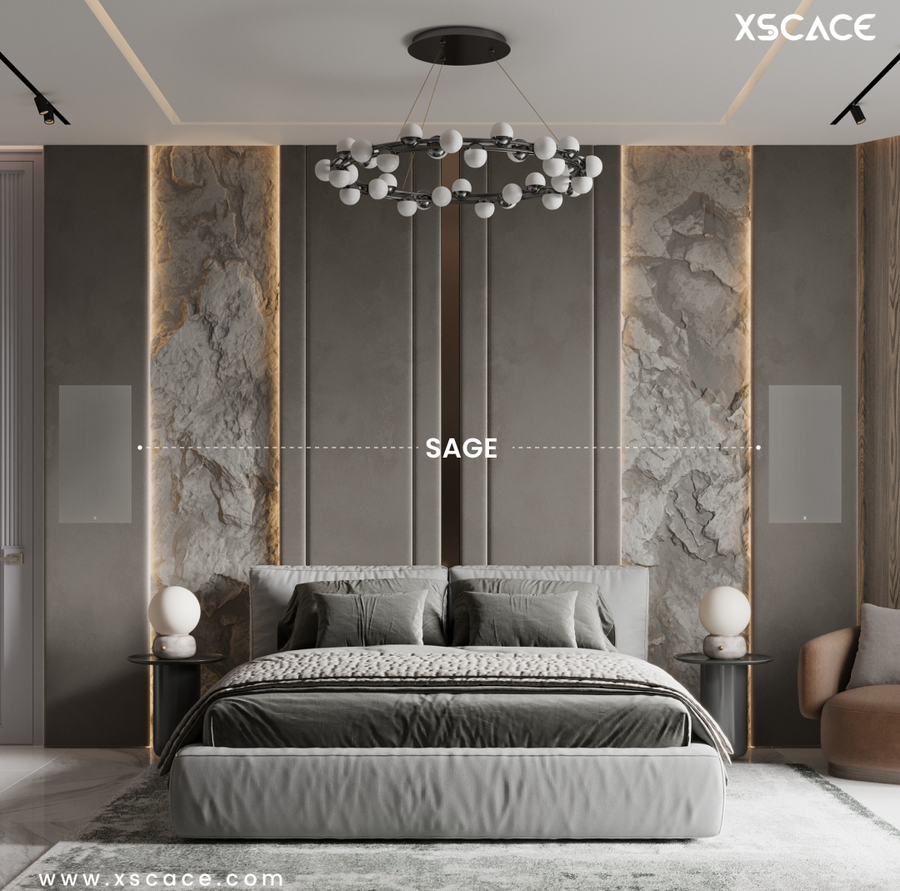

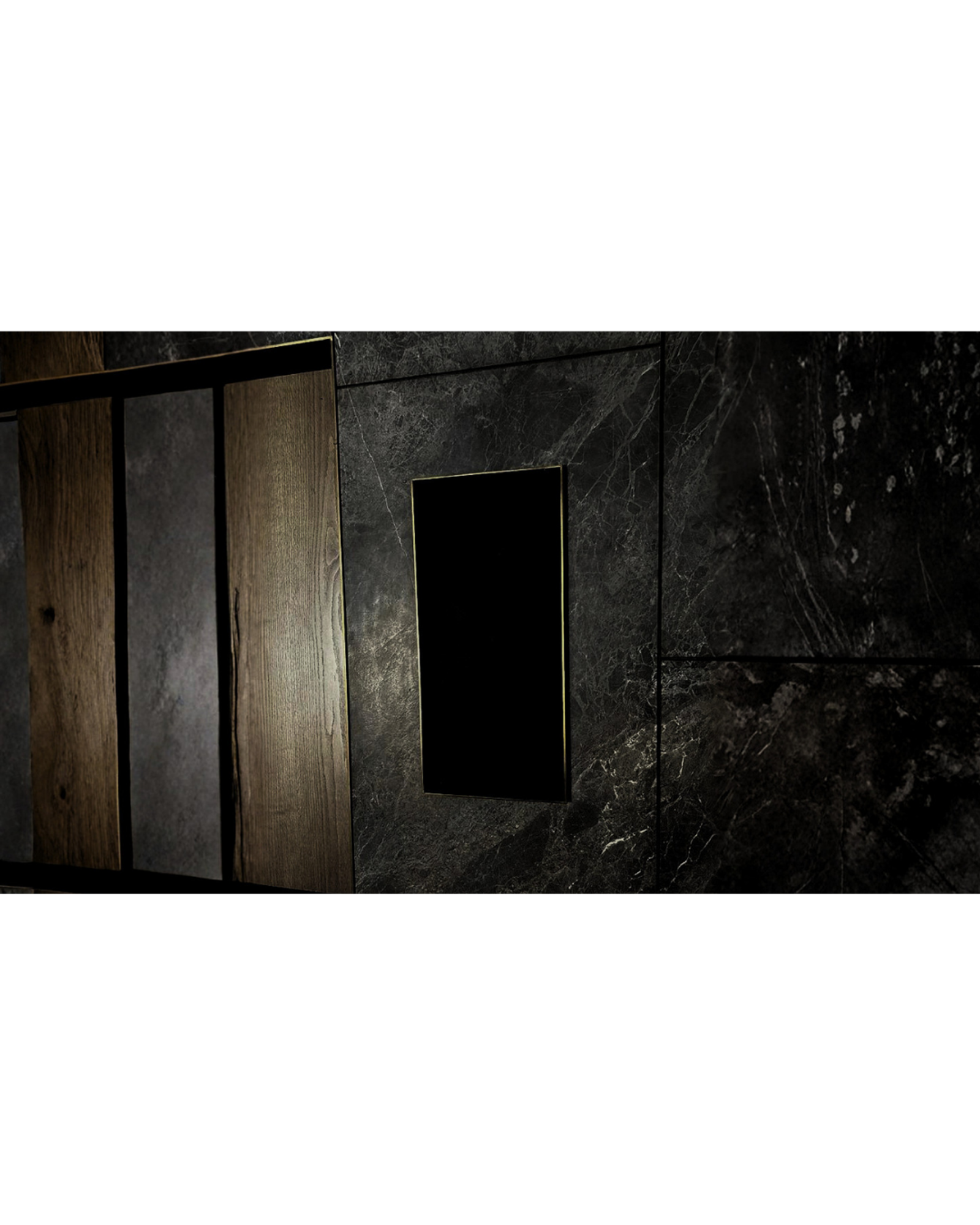

Gallery

Sage in context

Scroll

Sage In-Wall Speaker is a premium in-wall center channel speaker designed for crystal-clear dialogue and immersive sound in advanced home theatre systems. Built for luxury home cinema setups, it enhances voice clarity, movie vocals, and surround sound performance. This sleek hidden in-wall speaker and architectural home audio speaker fits seamlessly into modern interiors, creating a clean invisible home audio system with powerful, balanced sound and space-saving design.

Frequently asked questions5 answers

What is the XSCACE Sage?

Preferred by audiophiles and high-end integrators for primary listening rooms and dedicated music spaces in luxury residential and hospitality projects across Canada, the UK, and India.

What is the frequency response of the Sage?

The Sage covers 45Hz–22000Hz (±3dB).

What is the power output of the Sage?

The Sage is rated at 150W RMS (250W peak) into 8Ω.

Is the Sage an in-ceiling, in-wall, or slim-array speaker?

The Sage is an in-wall product, mounted via Spring clip.

How deep is the Sage?

The Sage requires 99.8mm of depth (112mm cavity), engineered to sit as close to flush as the driver geometry allows.
