Acacia 10
Floor-standing 10 inch passive subwoofer. Powerful bass down to 35Hz for large rooms and home cinema.
Pricing is quoted by your regional distributor. Find yours →
bass without the box.

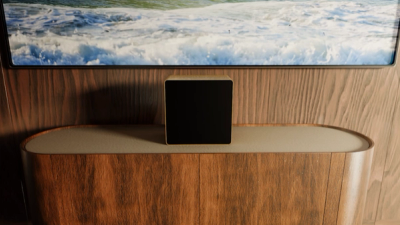

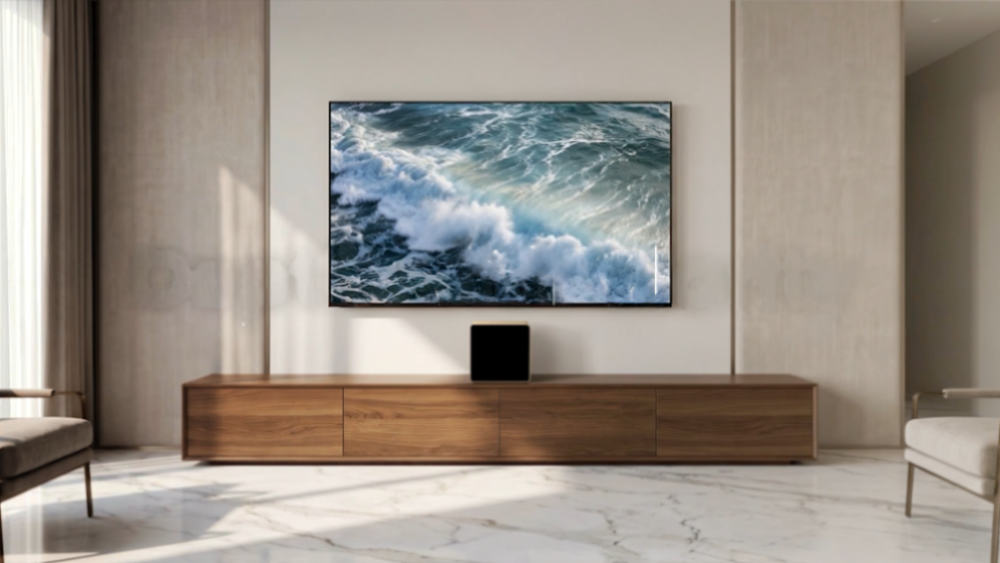

On the floor or against the wall, in the rooms it was asked to fill. Every photo is a real installation; open one to read how it was done.
everything else.
Four drawers. Each opens in place, so nothing leaves the page.
A voice coil that stays cool under drive.
A copper-silver composite voice coil dissipates heat faster than copper alone, so the output holds under continuous high-power drive.
Resonance tuned below the cabinet.
Heavy cone mass lowers the resonant frequency below what the cabinet volume alone would allow, extending the low end of a thin enclosure.
- Power RMS
- 250W
- Power Peak
- 300W
- Impedance
- 4Ω
- Sensitivity
- 88dB
- Frequency
- 35Hz – 300Hz
- Driver
- 1 × 10"
- Dimensions
- H 380 × W 380 × D 215.9 mm
- Weight
- 13kg
- Housing
- Wood
- Colours
- Stainless Steel
- Custom RAL
- +20% · 45–60 days
- Power Type
- Passive
- Paintable Grille
- No
- Grille Material
- Mild Steel
- Crossover
- Subwoofer LP only
- Max SPL
- 112dB
- THD+N
- ≤0.2% @ 1W/1m
Commercial zones
One speaker every 15–20 ft, a subwoofer for every two, a Root 4 for every eight, and an Air Mini per zone.
A different room? Plan it in two minutes.
Room Solutions suggests the speakers and the sub for your room. Floorplan Sound Simulation predicts the coverage.What is the XSCACE Acacia 10 Passive?
Specified for primary listening rooms, dedicated cinema rooms, and large residential spaces in luxury projects across Canada, the UK, and India requiring deep, accurate bass.
What is the frequency response of the Acacia 10 Passive?
The Acacia 10 Passive covers 35Hz–300Hz.
What is the power output of the Acacia 10 Passive?
The Acacia 10 Passive is rated at 250W RMS (300W peak) into 4Ω.
What type of product is the Acacia 10 Passive?
The Acacia 10 Passive is a subwoofer product.
How much space does the Acacia 10 Passive need?
The chassis is 380 mm high, 380 mm wide and 215.9 mm deep.
How deep is the Acacia 10 Passive?
The Acacia 10 Passive requires 215.9mm of depth.
take it with you.
What you need to specify it, show it to a client, or control it once it is in.
