A speaker crossover is the most overlooked and most consequential component in any multi-driver speaker system. Its sole job is to divide the incoming audio signal cleanly between drivers — ensuring the tweeter never receives bass it cannot handle, and the woofer never attempts to reproduce high frequencies beyond its physical capability. When a crossover fails, through component drift, poor tolerances, or cheap parts, the entire speaker system suffers — regardless of how good the individual drivers are. Speaker crossover quality in in-ceiling speakers is not a peripheral concern; it is the difference between a speaker that performs and one that merely plays.
At XSCACE, we treat the crossover as the sonic core of every speaker we design. PrecisionXover Array™ is the result of that philosophy — a surgically specified crossover network built from hand-selected components, assembled inside the speaker housing, and tuned to ±0.5dB tolerance across the entire crossover band.
Why Crossover Quality Defines the Sound of an Architectural Speaker
Every driver in a multi-way speaker system has a defined operating range. Tweeters — typically a 25mm silk or aluminium dome — are designed to handle frequencies above 2kHz–3kHz. Force a tweeter to reproduce 300Hz bass content and two things happen: audible distortion as the driver exceeds its mechanical limits, and premature failure as the voice coil overheats. Conversely, when a woofer attempts to reproduce high frequencies, its large cone surface begins to beam — radiating sound in a narrow forward lobe rather than dispersing it evenly. The result is imaging collapse: instruments and voices lose their stable position in the soundstage, and the stereo illusion falls apart.
Component drift is the less obvious — and often more damaging — failure mode. Cheap electrolytic capacitors, the default choice in cost-optimised crossovers, change their capacitance value by 20–30% over a 10-year period due to heat cycling and humidity absorption. When a capacitor drifts, the crossover point shifts. A filter designed to hand off at 3kHz may be crossing over at 2.4kHz or 3.8kHz a decade later. The frequency response anomalies this creates cannot be corrected with equalisation, because EQ cannot compensate for a driver operating outside its design band.
Phase errors are the third dimension of crossover failure. When component tolerances are loose — ±10% or ±20% rather than ±1% — the phase relationship between drivers shifts at the crossover frequency. Instead of summing coherently, the drivers interfere with each other, producing peaks and dips in the response that are audible as coloration and harshness. Group delay — the time smearing that imprecise crossovers introduce — is why speakers with ostensibly flat measured response still sound blurred and congested on complex musical passages. Transients lose their attack; percussion sounds like it arrives late.
PrecisionXover Array™: Surgical Component Selection for In-Ceiling Speaker Crossover Quality
XSCACE's PrecisionXover Array™ begins with component selection at a specification level that is unusual in architectural audio — and that would be considered standard in reference-grade audiophile loudspeaker design.
We specify air-core inductors throughout the signal path. Unlike iron-core inductors — where the magnetic core saturates at high signal levels, compressing dynamics and introducing non-linearity — air-core inductors have no magnetic material to saturate. Their inductance value remains linear from low-level listening to high-current transient peaks. The result is a crossover that behaves identically at whisper-quiet background levels and at the dynamic peaks of orchestral music.
Polypropylene film capacitors replace the electrolytic types found in mass-market architectural speakers. Polypropylene is dimensionally stable from -40°C to +85°C, exhibits extremely low Equivalent Series Resistance (ESR), and does not absorb moisture — eliminating the drift mechanism that degrades electrolytic crossovers over time. The capacitance value measured on installation day will be the capacitance value ten or twenty years later. This is not a marginal improvement; it is a fundamentally different engineering approach.
Metal-film resistors at ±1% tolerance complete the passive network. Carbon-film resistors, the budget alternative, carry ±5% tolerances and generate measurable thermal noise artefacts under load. Metal-film types eliminate both problems: tighter tolerance means the filter slopes match design intent precisely, and the lower noise floor keeps the signal path clean through the critical midrange band.
Every PrecisionXover Array™ network is hand-selected and verified to ±0.5dB tolerance across the entire crossover band before installation. This is the specification standard of reference audiophile crossover design, miniaturised into an architectural form factor and built directly into the speaker housing — no external crossover box to hide, misplace, or leave unpowered.
What ±0.5dB Tolerance Means in Practice
The ±0.5dB specification is not a marketing abstraction. It has direct, audible, measurable consequences in every installation:
- Left-right channel matching within ±0.5dB across the crossover frequency — both speakers in a stereo pair behave identically, rather than drifting apart in tonal character
- Stereo imaging that remains stable — voices and instruments hold their defined position in the soundstage rather than wandering as frequency shifts
- Consistent tonal balance between multiple speakers in a multi-zone installation — every room sounds like the same speaker, not a family of loosely matched units
- No frequency response anomalies from component drift — the speaker sounds the same after fifteen years as it did on commissioning day
- Audibly smoother midrange through the critical 2kHz–5kHz band — the frequency range where human hearing is most sensitive to coloration, harshness, and phase errors
PrecisionXover Array™ does not operate in isolation. It works in concert with XSCACE's Nano Resonance™ technology — our driver-level damping and resonance management system. The crossover point and filter slope are co-designed with each driver's Nano Resonance characteristics. We are not selecting a generic crossover frequency from a table and assembling off-the-shelf components around it. The crossover and the driver are engineered as a single coherent system, where the filter's behaviour at the handover frequency accounts for the driver's own mechanical and acoustic response.

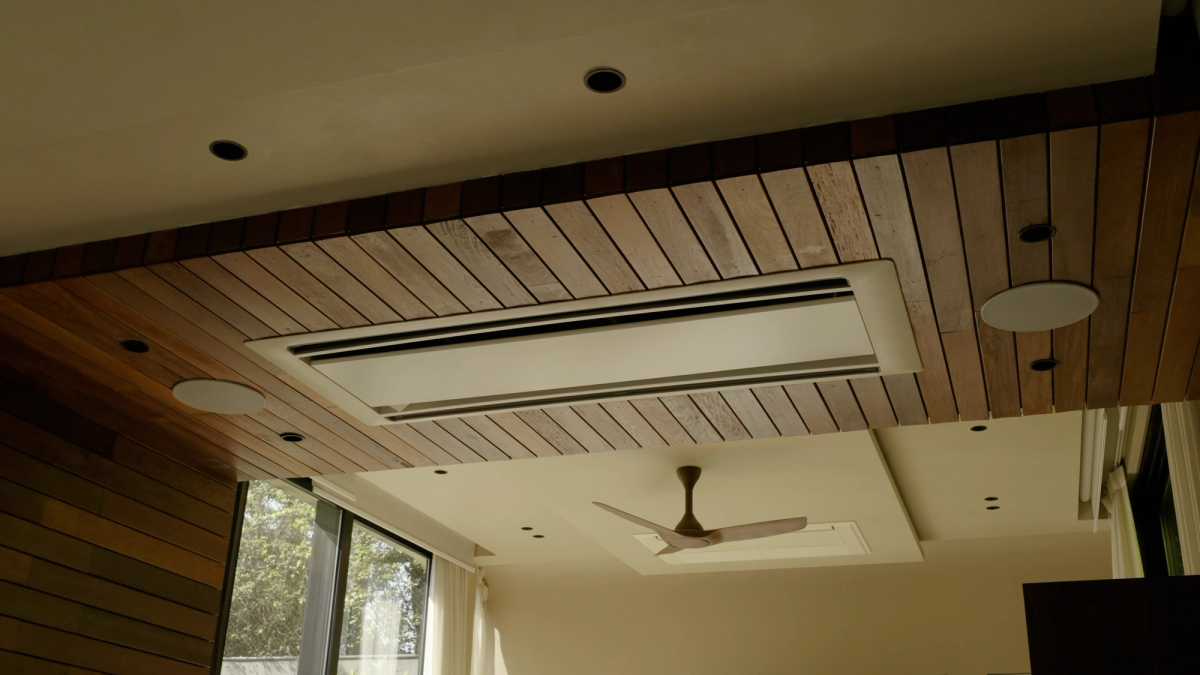

This co-design approach applies across XSCACE's in-ceiling series and in-wall series. Each model's PrecisionXover Array™ is specific to that model's drivers — not a shared crossover board repurposed across a product family.
The Standard XSCACE Rejects
Most architectural speakers ship with crossovers designed to a cost target rather than a performance target. Electrolytic capacitors at ±20% tolerance. Iron-core inductors. Carbon-film resistors. These components are not chosen because they sound better — they are chosen because they are cheaper. The consequence arrives gradually, over years, as the crossover drifts away from its design intent and the speaker you installed for a client begins to sound different from the speaker they approved. XSCACE's Acacia 6 and Acacia 10 subwoofers — extending to 45Hz and 35Hz respectively — depend on the speakers they are paired with maintaining their crossover accuracy in the 300Hz region. A drifting crossover in the satellite speaker corrupts the entire system integration.
PrecisionXover Array™ treats the crossover as the sonic core of the design — because that is exactly what it is. The drivers are the transducers. The amplifier is the power source. The crossover is the decision-maker: what each driver hears, and when. When that decision is made with surgical precision, the entire system coheres. When it is made with cheap, drifting parts, every other engineering investment in the speaker is undermined.
This is the standard we hold ourselves to in Toronto, and it is the standard we believe every speaker installed in a serious residential or commercial environment deserves.
