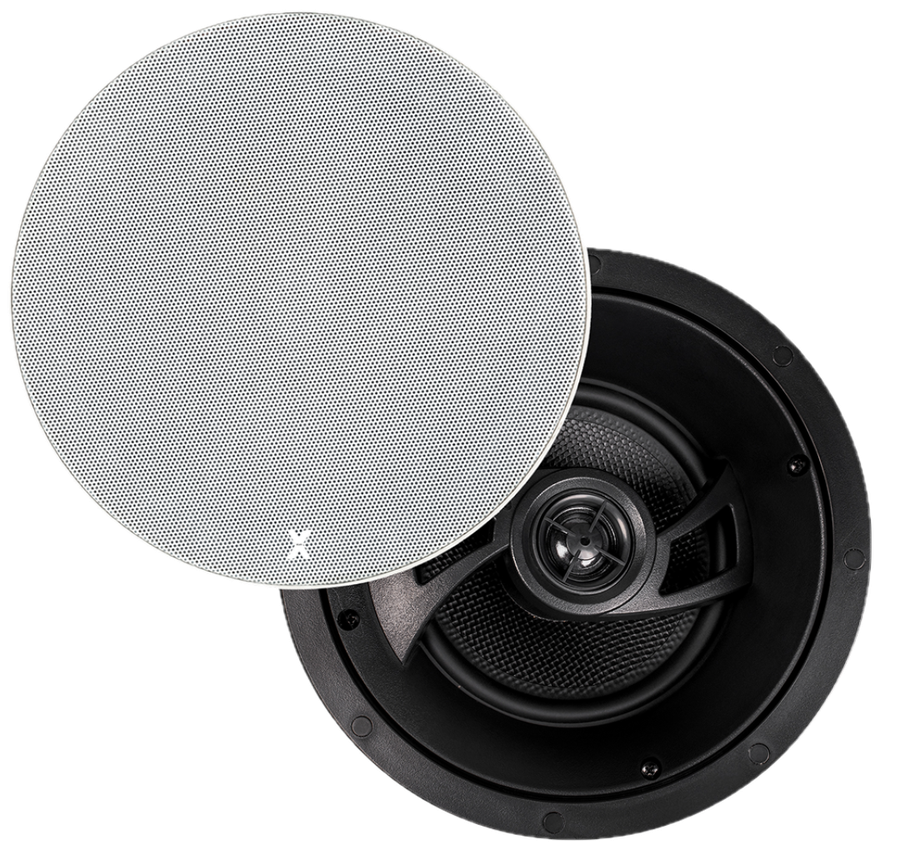

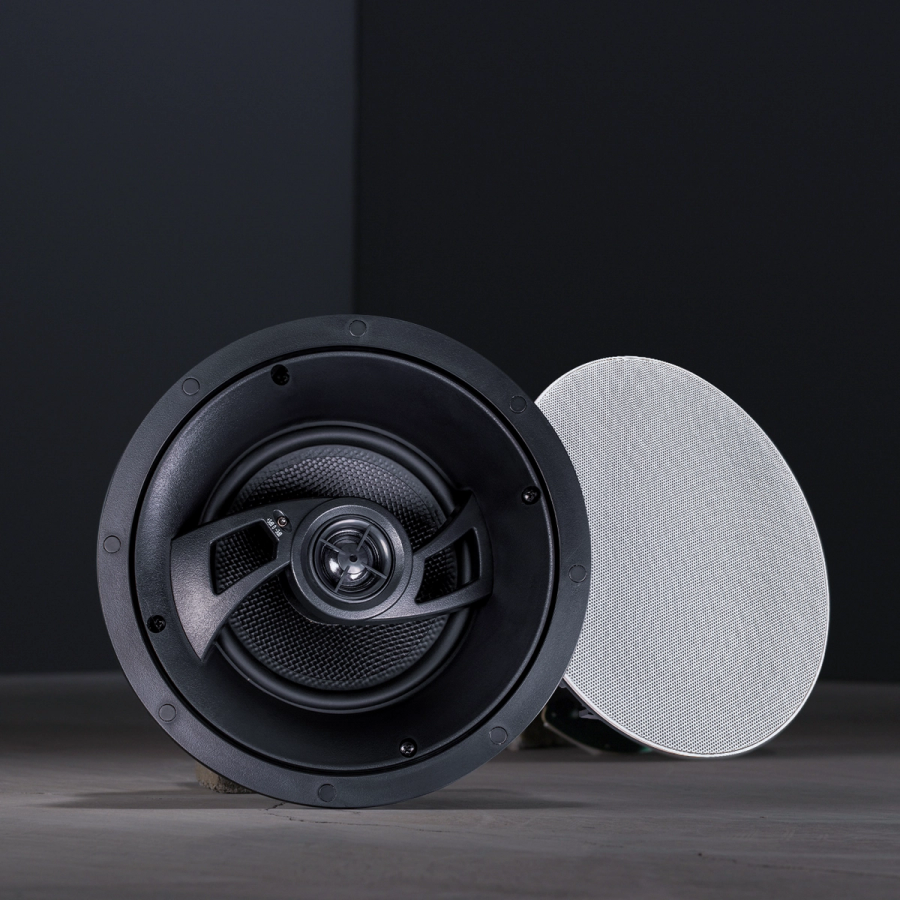

Aster 6 LCR
LCR In-Ceiling Speaker
Angled LCR ceiling speaker with aimable tweeter engineered to project sound toward the listening area for immersive home cinema.
XSP-IC-AST6
150W8Ω35Hz – 22kHzPassive
WhiteCustom RAL
Move cursor to illuminate
Design Philosophy
×
No timbre mismatchThe Aster 6 LCR is voice-matched to the full XSCACE in-ceiling range. Left, centre, right — the three channels share an identical acoustic signature. No tonal shift as the image moves across the screen.
×
No pointing required
×
No baffle-step colouration
×
No paint masking
→
35Hz to 22kHz. LCR matched.
01 / 05
Technical Specifications
21 parameters · scroll to explore
Power RMS
150W
fills a large living room
01 / 21
Acoustic
Power RMS
150W
Impedance
8Ω
Sensitivity
92dB
Frequency
35Hz – 22kHz ±3dB
Driver
1 × 6.5"
Driver Material
Polypropylene Cone, Rubber Surround
Physical
Diameter
208.3 mm
Weight
1.9kg
Housing
ABS
Colours
White
Custom RAL
Available
Power Type
Passive
Cutout Ø
208.3 mm
Cavity Depth
155mm
Paintable Grille
Yes
Grille Material
Mild Steel
Paintable Grille
Yes
Aimable Tweeter
Yes
Crossover
Built-In Passive Crossover (2-way)
THD+N
≤0.2% @ 1W/1m
Connectivity
THD+N
≤0.2% @ 1W/1m
Acoustic Measurements
Frequency Response & Directivity
Frequency Response
On-axis · 1W/1m · 35Hz – 22kHz ±3dB · 92 dB sensitivity
Polar Pattern
Normalised polar response · H 115° / V 115° (−6 dB @ 1 kHz)
Proprietary Technology
Built different. By design.
In Use
Common installations
Source
Any AVR
Dolby Atmos
AI System Builder
Don't see your setup?
Tell the AI your room, budget and use case — get a complete system in seconds.
Technical Documents
Downloads
Mobile App
iOS & Android
XSCACE Controller

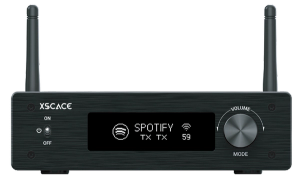

When paired with Air Amp or Air Mini, control this speaker from your phone. Volume, balance, channel select, X-Sense AI room calibration, and streaming — all in one app.
Learn more →
Gallery

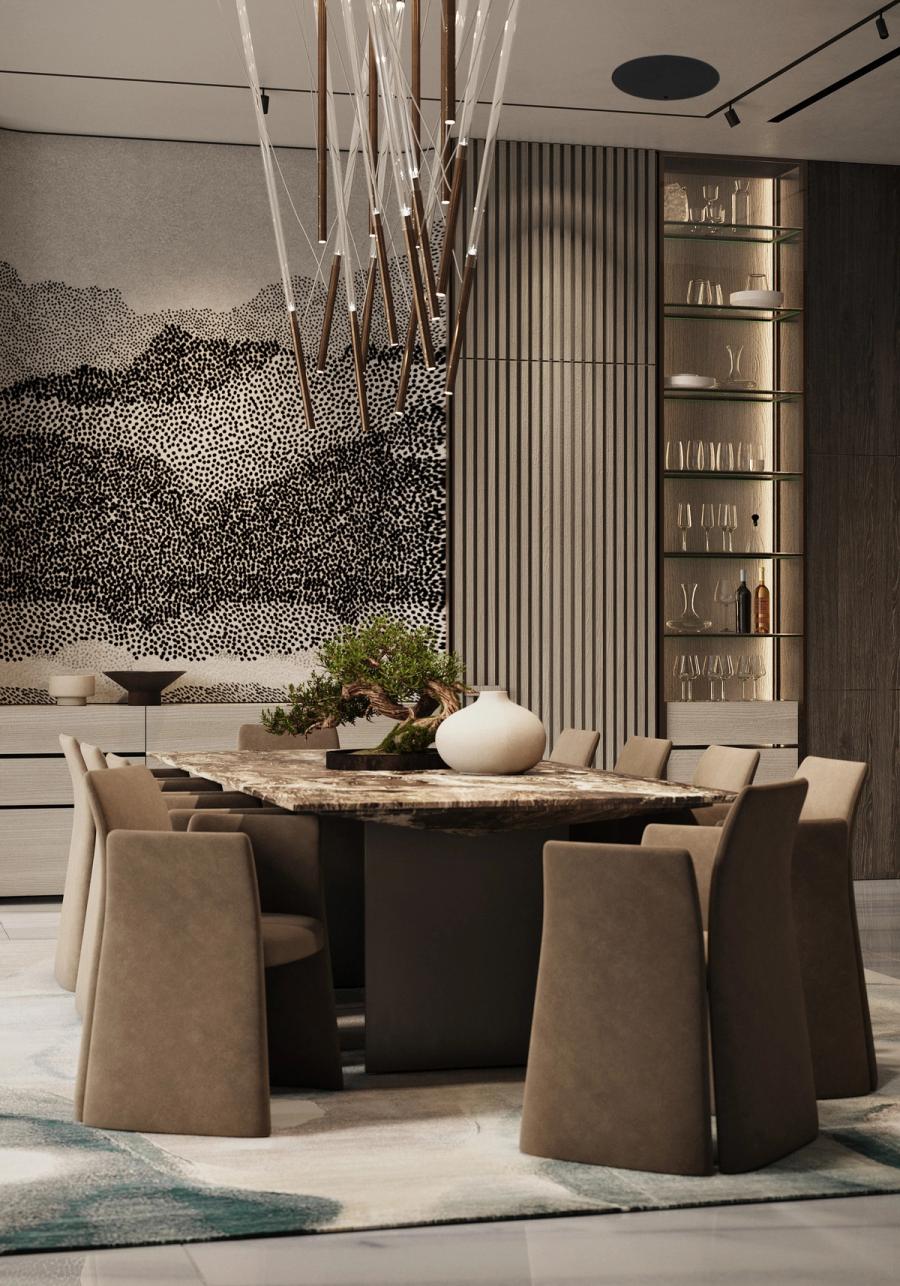

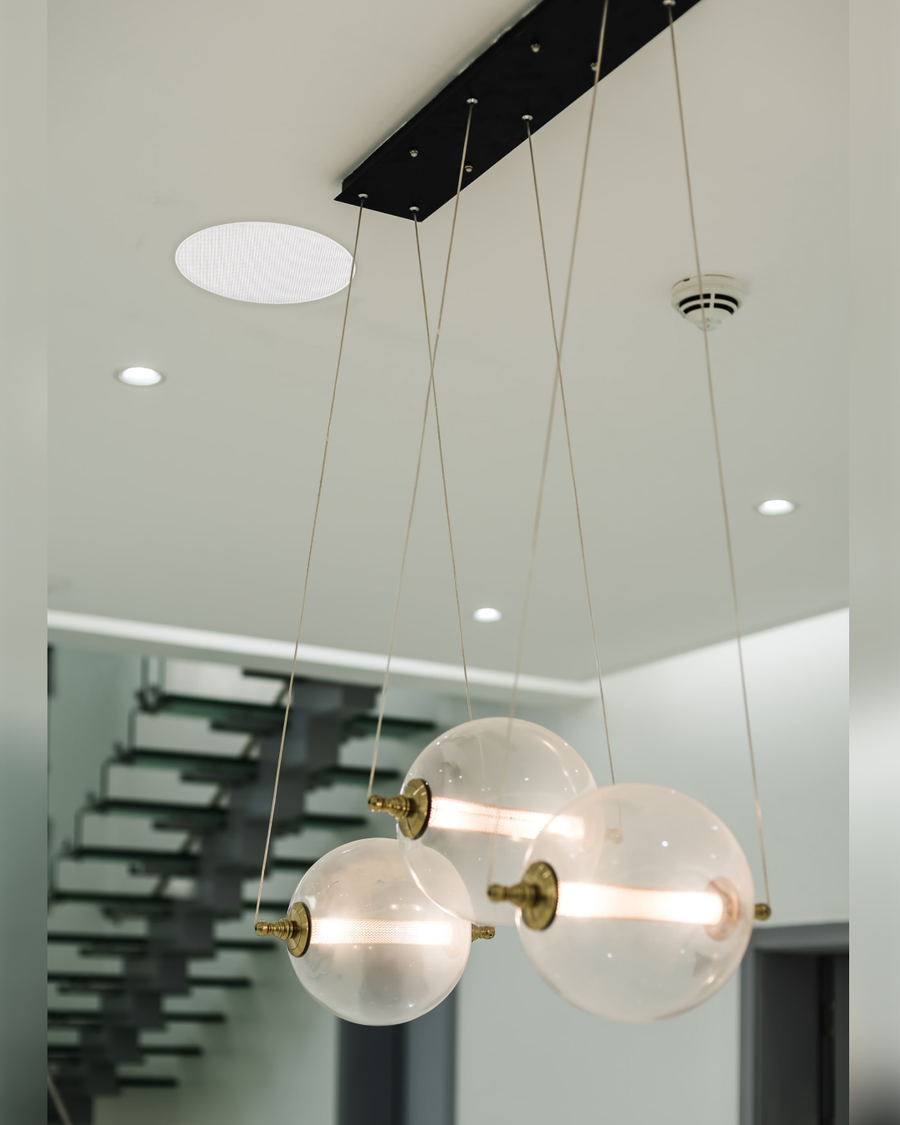

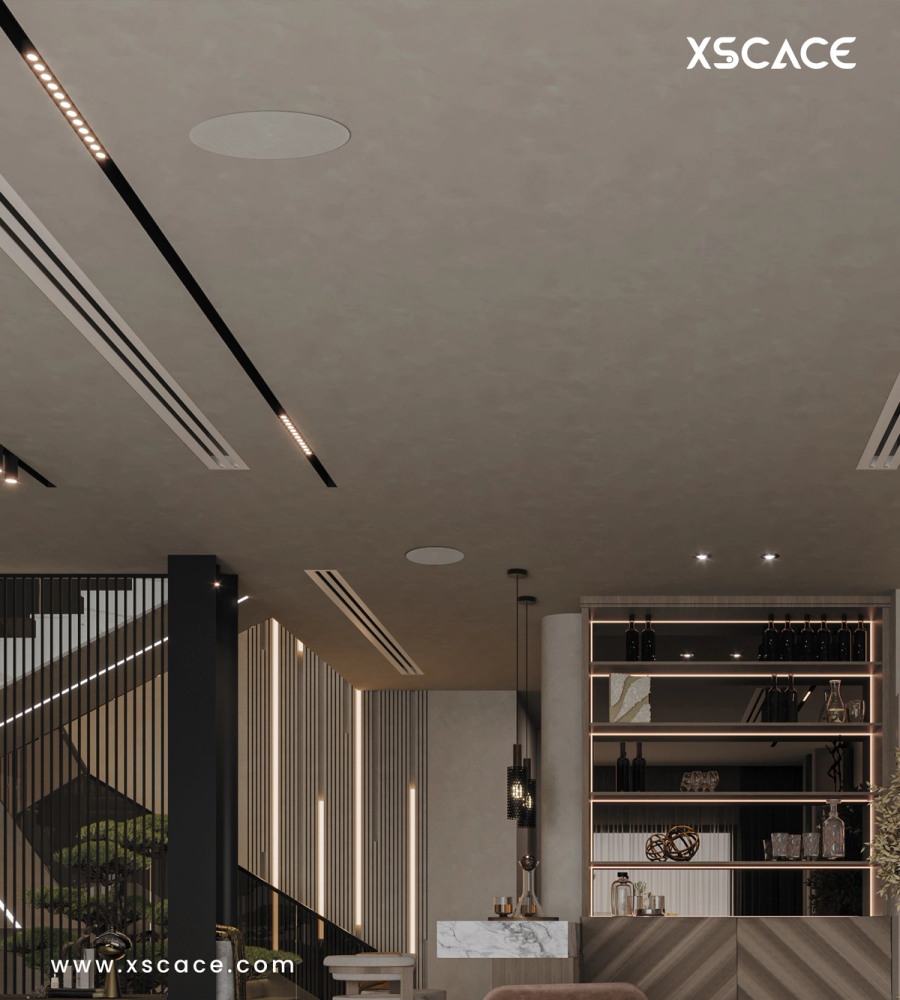

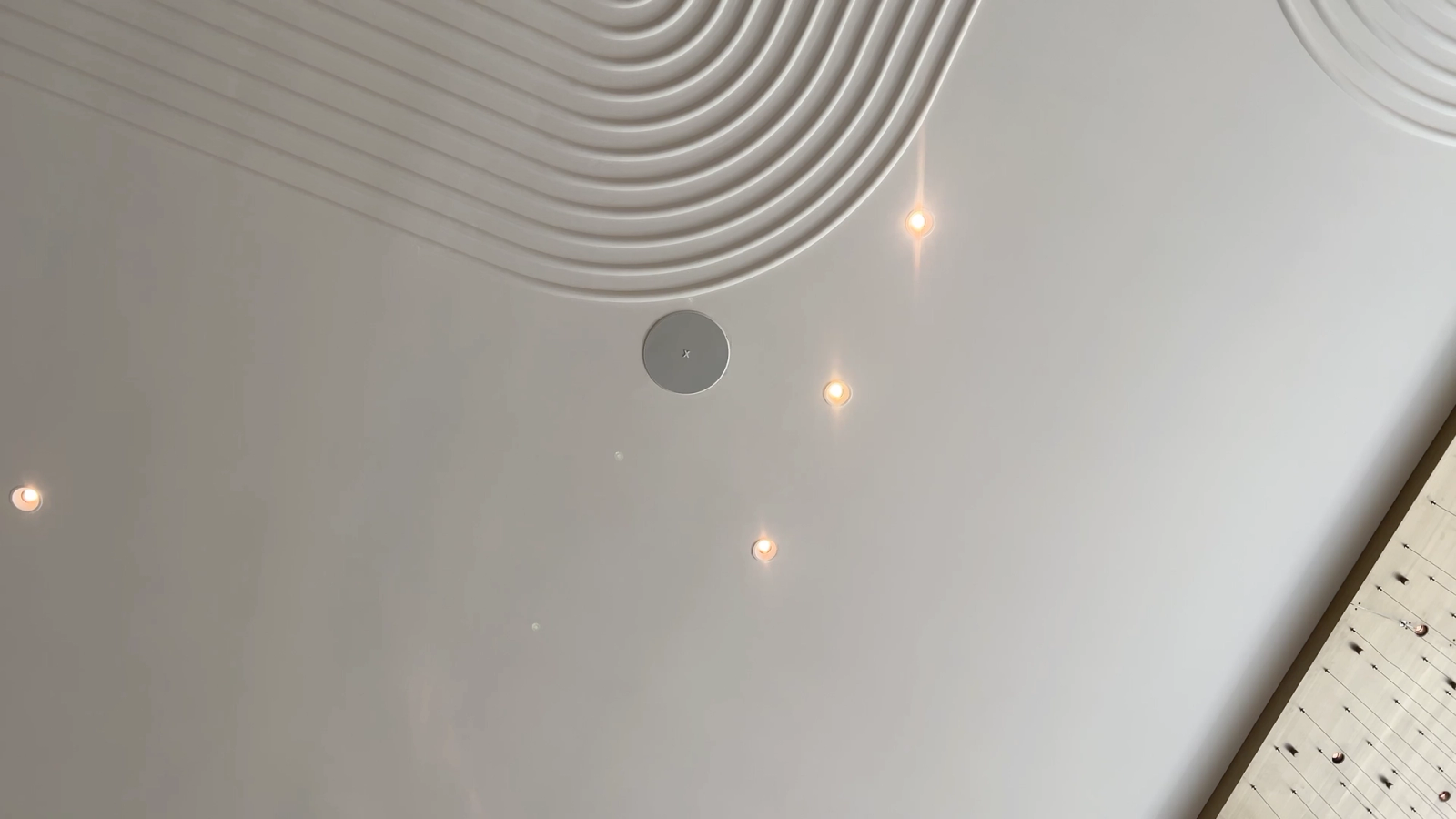

Aster 6 LCR in context
