Camphor 8

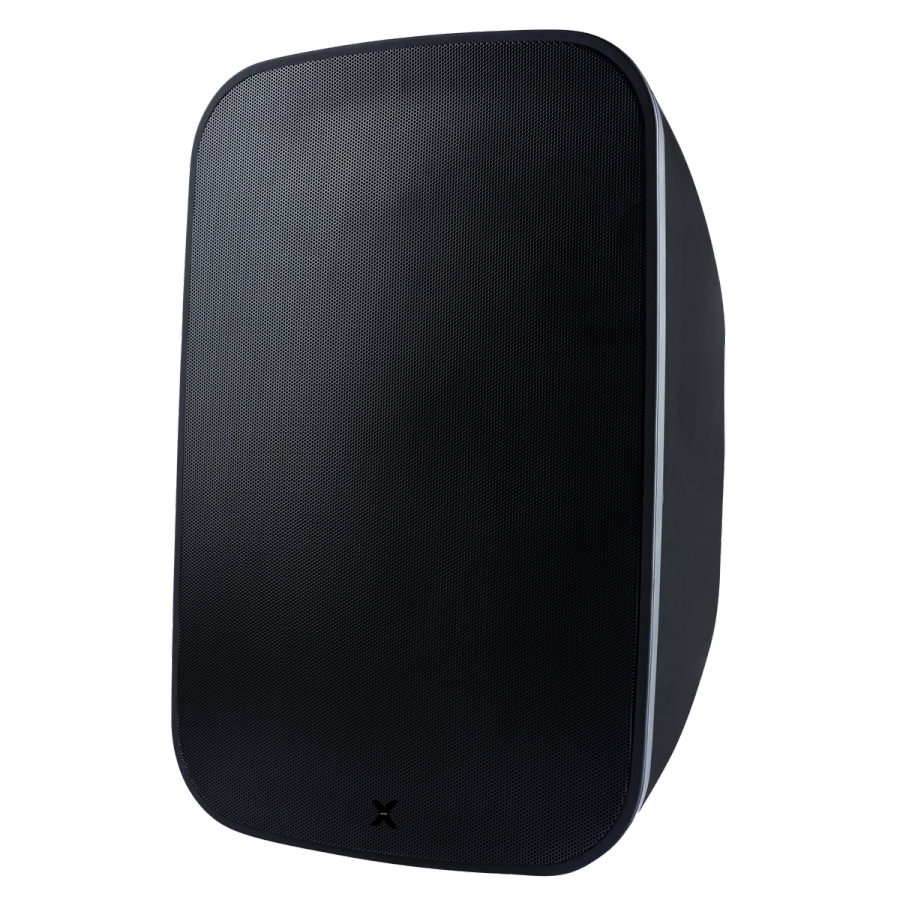

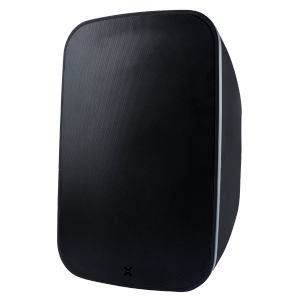

Camphor 8 projects powerful full-range audio across large outdoor spaces. IP66 rated with XBR bass radiator.
Pricing is quoted by your regional distributor. Find yours →
it disappears into the garden.

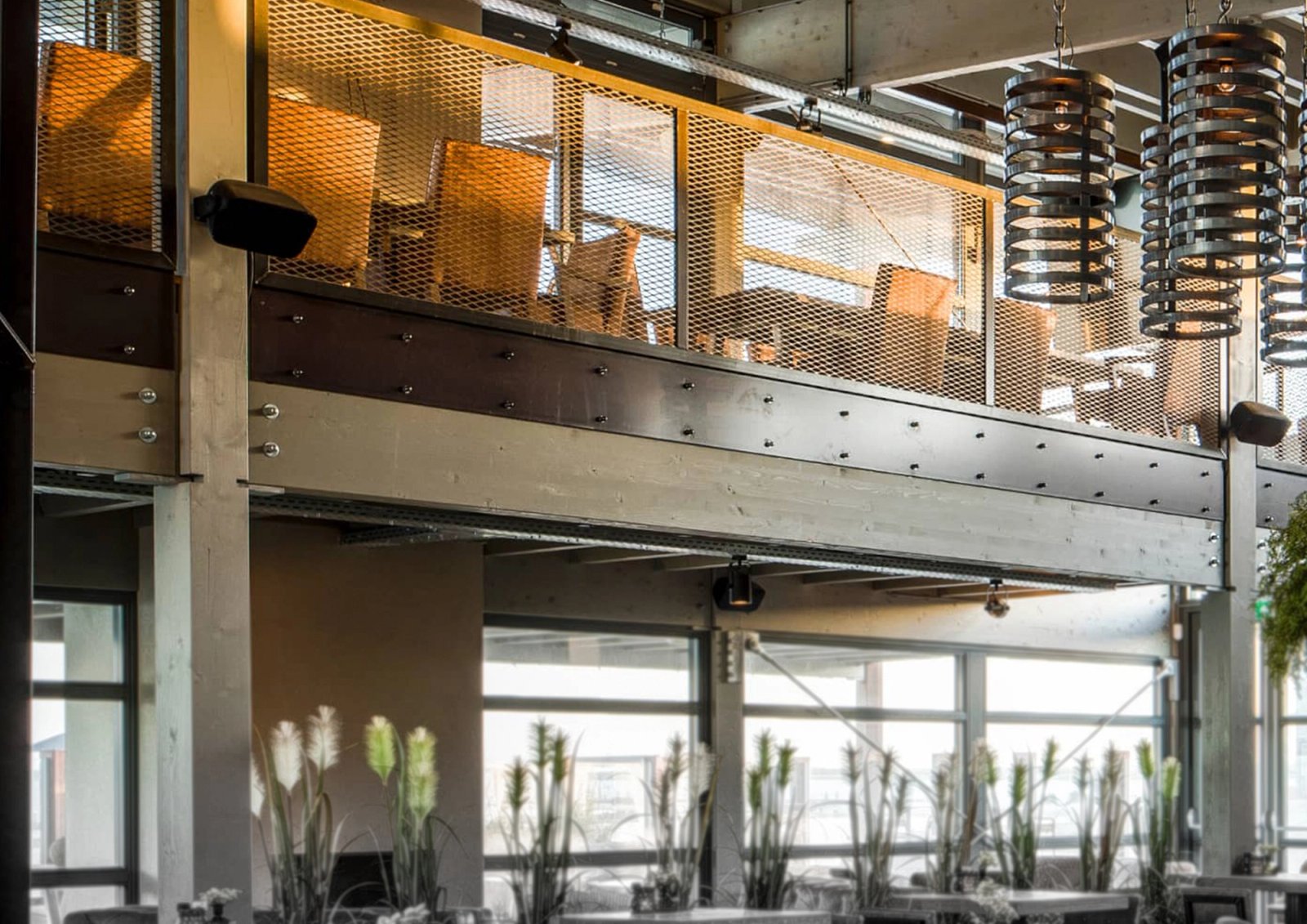

In gardens, on terraces and by pools, built to stay out. Every photo is a real installation; open one to read how it was done.
everything else.
Five drawers. Each opens in place, so nothing leaves the page.
Every driver held to ±0.5 dB.
The crossover is the most overlooked part of a speaker. Hand-selected air-core inductors and polypropylene capacitors hold the drivers to ±0.5 dB of each other at the crossover point.
A voice coil that stays cool under drive.
A copper-silver composite voice coil dissipates heat faster than copper alone, so the output holds under continuous high-power drive.
- Power RMS
- 90W
- Power Peak
- 120W
- Impedance
- 8Ω
- Sensitivity
- 87dB
- Frequency
- 30Hz – 20kHz ±3dB

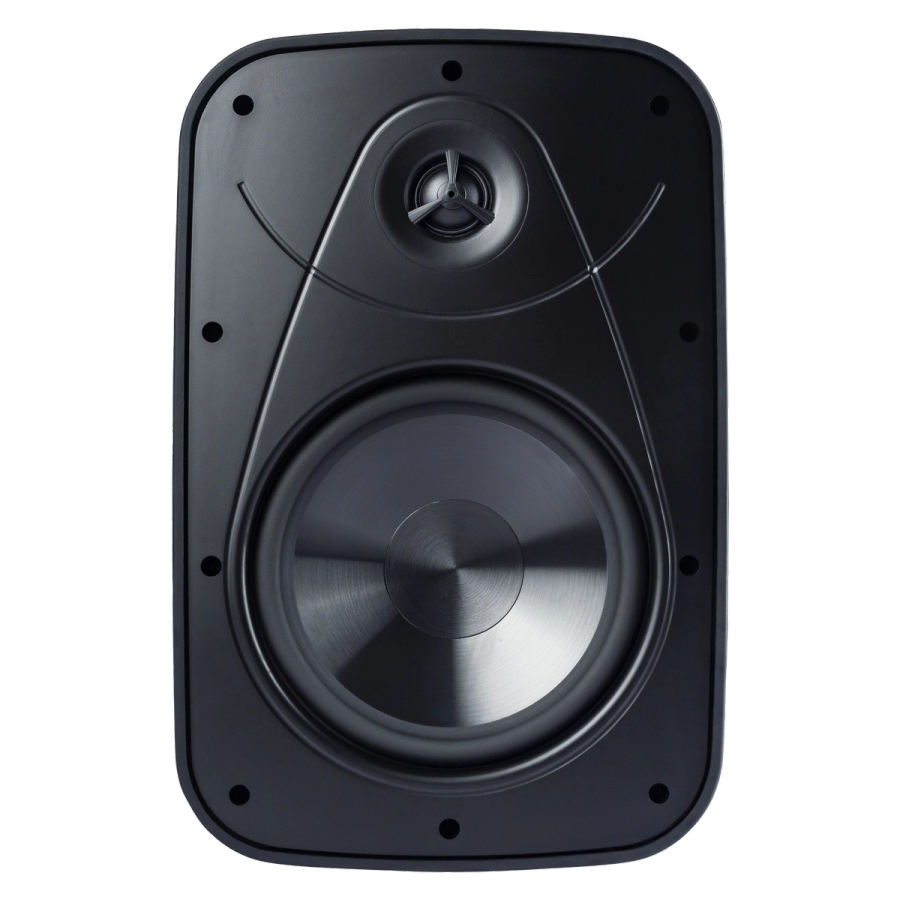

- Driver
- 1 × 8"
- Driver Material
- Graphite Cone, Rubber Surround
- Dimensions
- H 381 × W 249.9 × D 249.9 mm
- Weight
- 3.6kg
- Housing
- ABS
- Colours
- Standard all-weather finish
- Custom RAL
- +20% · 45–60 days
- Power Type
- Passive
- IP Rating
- IP66
- Paintable Grille
- No
- Grille Material
- Mild Steel
- Crossover
- Built-In Passive Crossover (2-way + XBR)
- Max SPL
- 108dB
- THD+N
- ≤0.2% @ 1W/1m
Outdoor deck
Four Camphor 8 on a Root 4, the Air Mini streaming.
Garden
Sixteen Camphor 8 across a garden on a Lucifer 8, the Air Mini as the source.
One pair covers a room up to 55 × 55 ft outdoor (large terraces, resort poolside, open-air lounges). Larger rooms take a second pair, or a bigger speaker from the range.
A different room? Plan it in two minutes.
Room Solutions suggests the speakers and the sub for your room. Floorplan Sound Simulation predicts the coverage.

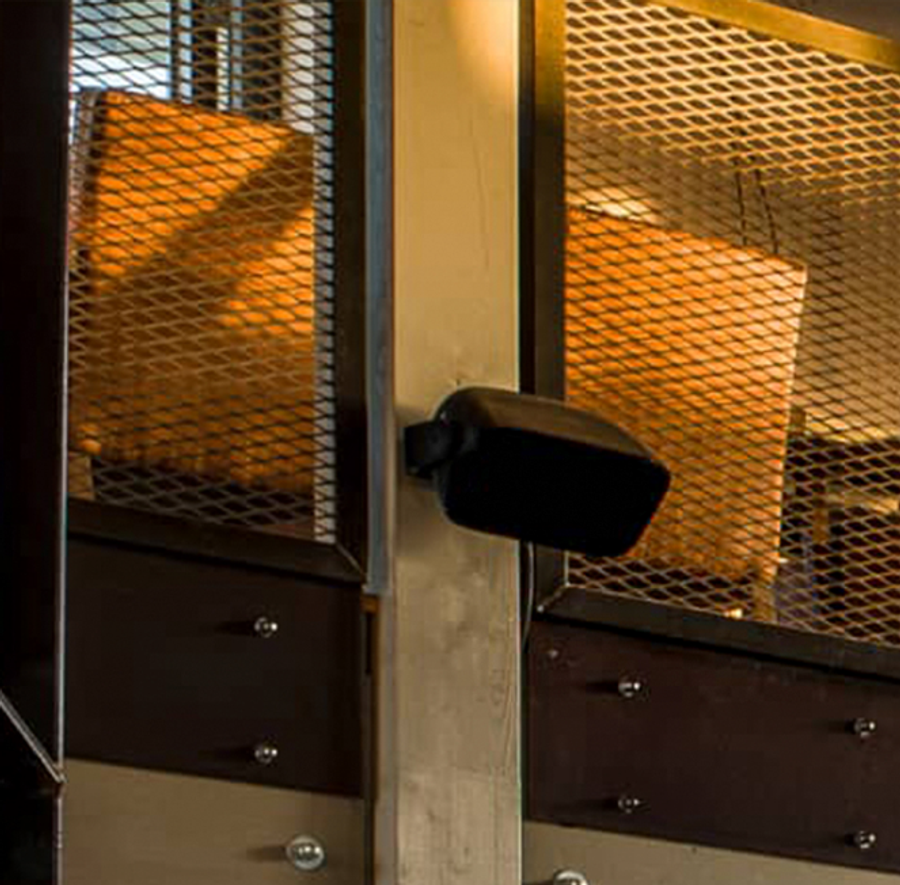

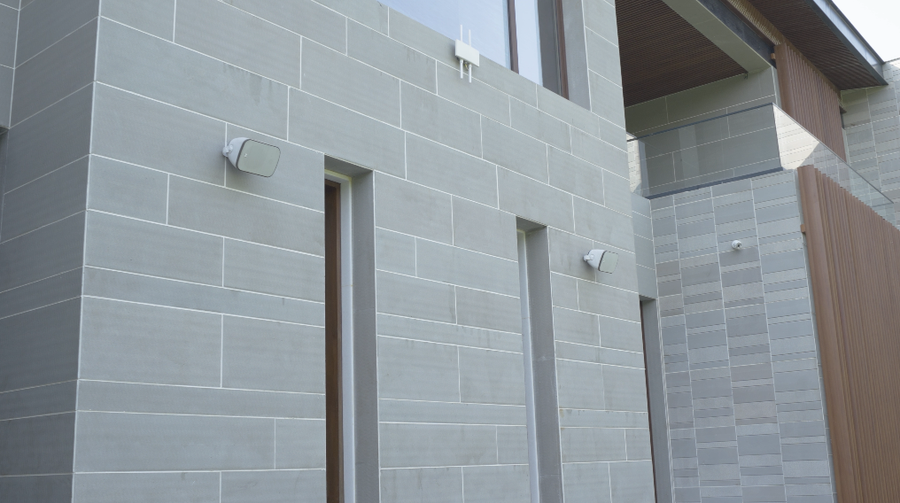

Stand-mount, wall-mount

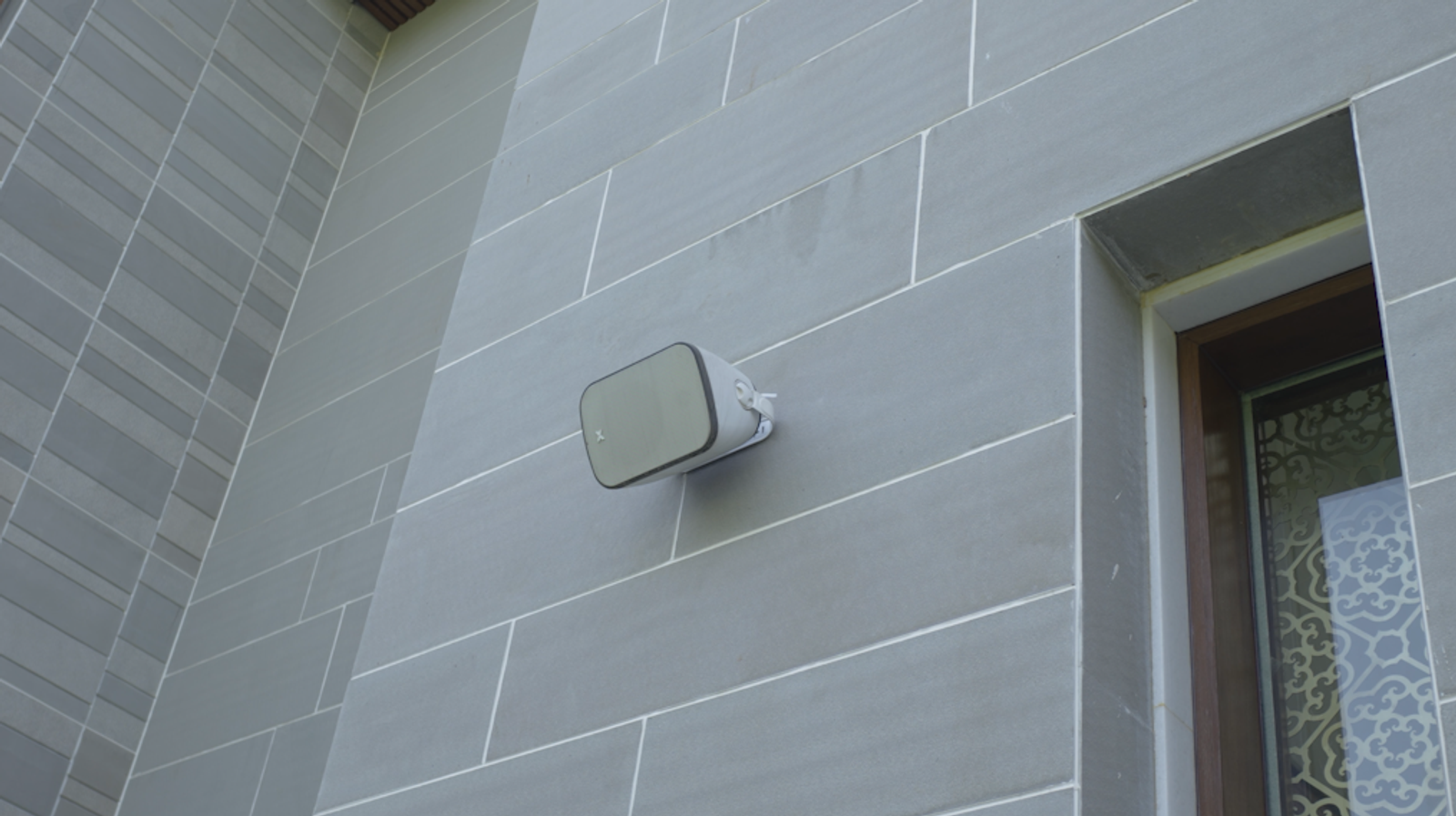

Camphor 8 on the wall; the hardware is in the box.
What is the XSCACE Camphor 8?
Camphor 8 projects powerful full-range audio across large outdoor spaces. IP66 rated with XBR bass radiator. Specified for large luxury outdoor residential areas, hotel pool decks, rooftop bars, and commercial outdoor hospitality installations in Canada, the UK, India, and the Middle East.
What is the frequency response of the Camphor 8?
The Camphor 8 covers 30Hz–20000Hz (±3dB).
What is the power output of the Camphor 8?
The Camphor 8 is rated at 90W RMS (120W peak) into 8Ω.
Is the Camphor 8 an in-ceiling, in-wall, or slim-array speaker?
The Camphor 8 is an outdoor product. Mounting: stand-mount or wall-mount (wall mount bracket included in box).
How deep is the Camphor 8?
The Camphor 8 requires 249.9mm of depth.
Is the Camphor 8 rated for outdoor or wet-area use?
Yes, the Camphor 8 carries an IP66 ingress protection rating and is marine-treatable.
take it with you.
What you need to specify it, show it to a client, or control it once it is in.
To present
To control
The Camphor 8 extends outdoor coverage to 55×55 ft with an 8-inch driver, IP66 weatherproofing, and 90W of output reaching down to 30Hz — built for large terraces, resort poolside installations, and open-air lounges where the Camphor 6's smaller driver runs out of headroom. Like the Camphor 6, it uses a silk dome tweeter and high-temperature voice coil tested to -20°F to 185°F.
