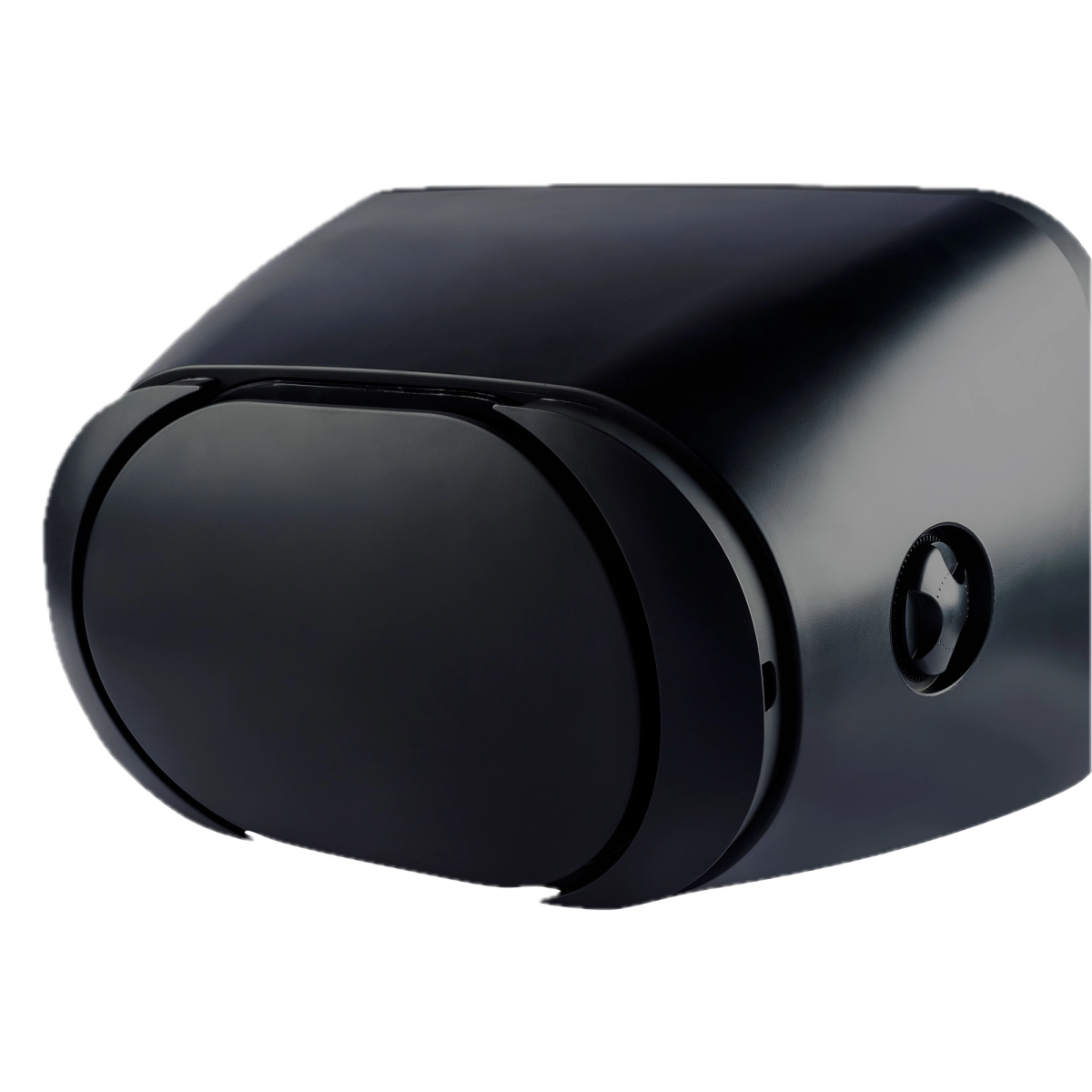

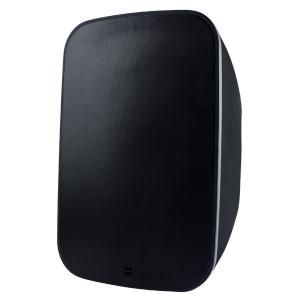

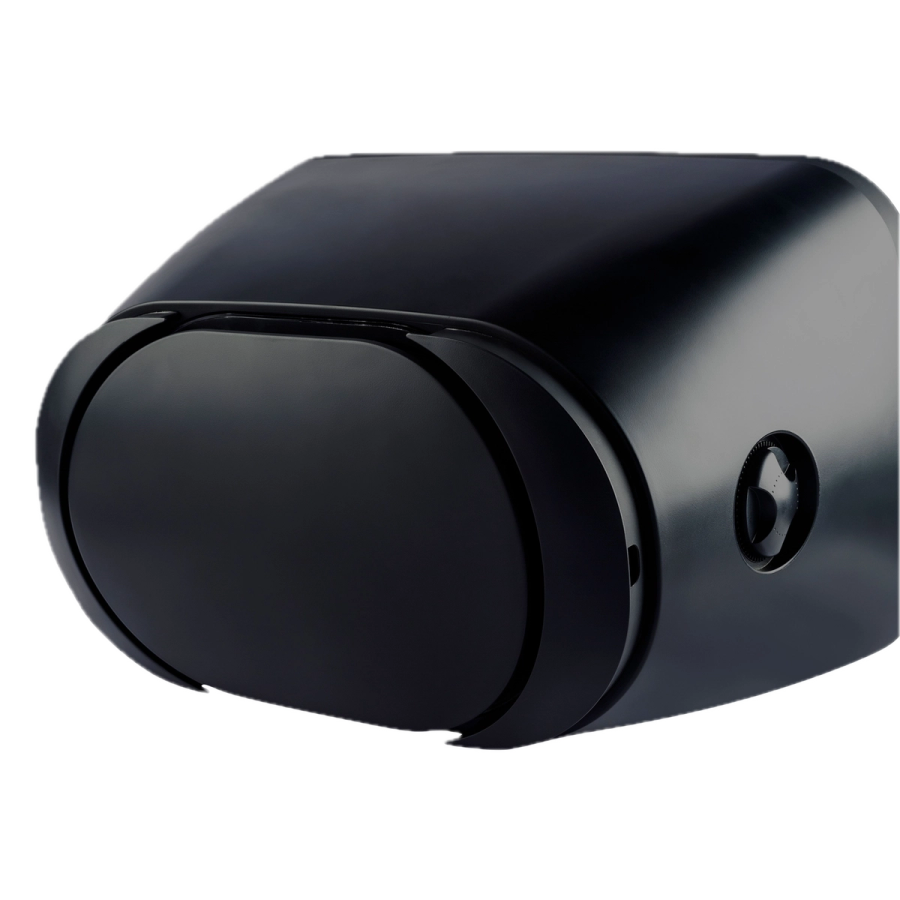

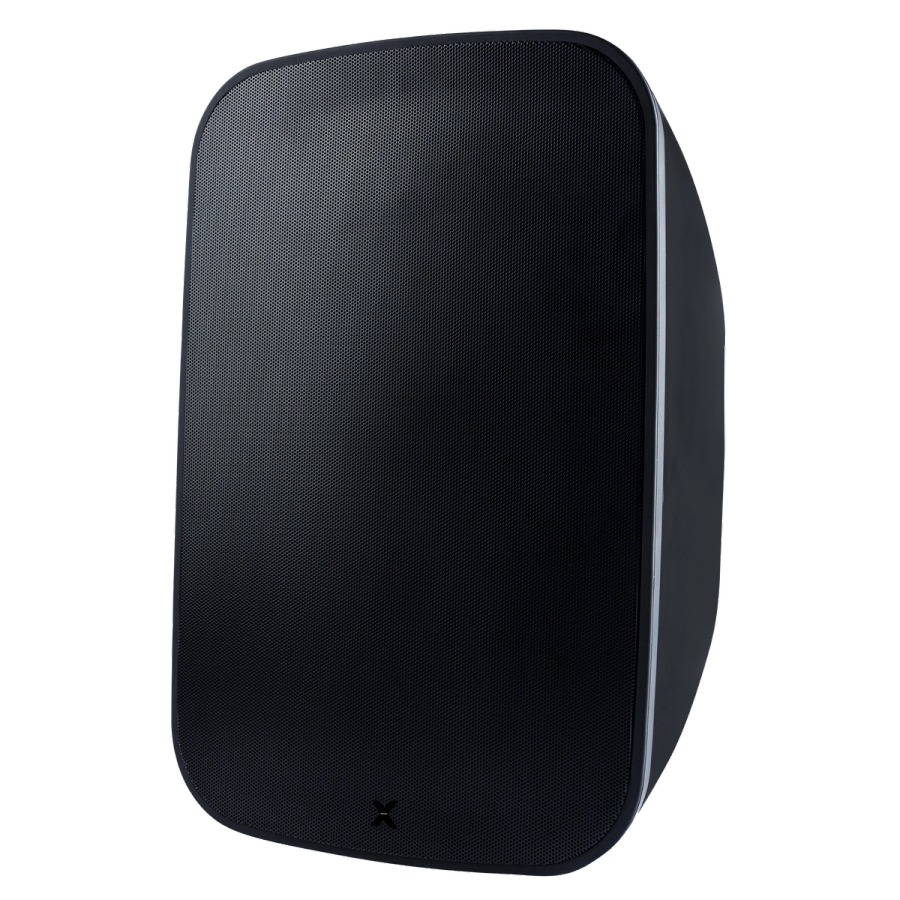

Camphor 6

Name: Camphor 6 Outdoor Speaker
Brand: XSCACE

Outdoor Speaker

Compact yet commanding. Camphor 6 offers excellent clarity in outdoor zones. IP66 rated with XBR bass radiator.

XSP-OD-CAM6

70W8Ω37Hz – 22kHzPassive

Standard all-weather finishMarine TreatableIP66

Custom RAL

Add to System →Brochure

Pricing is quoted by your regional distributor. Find yours →

01

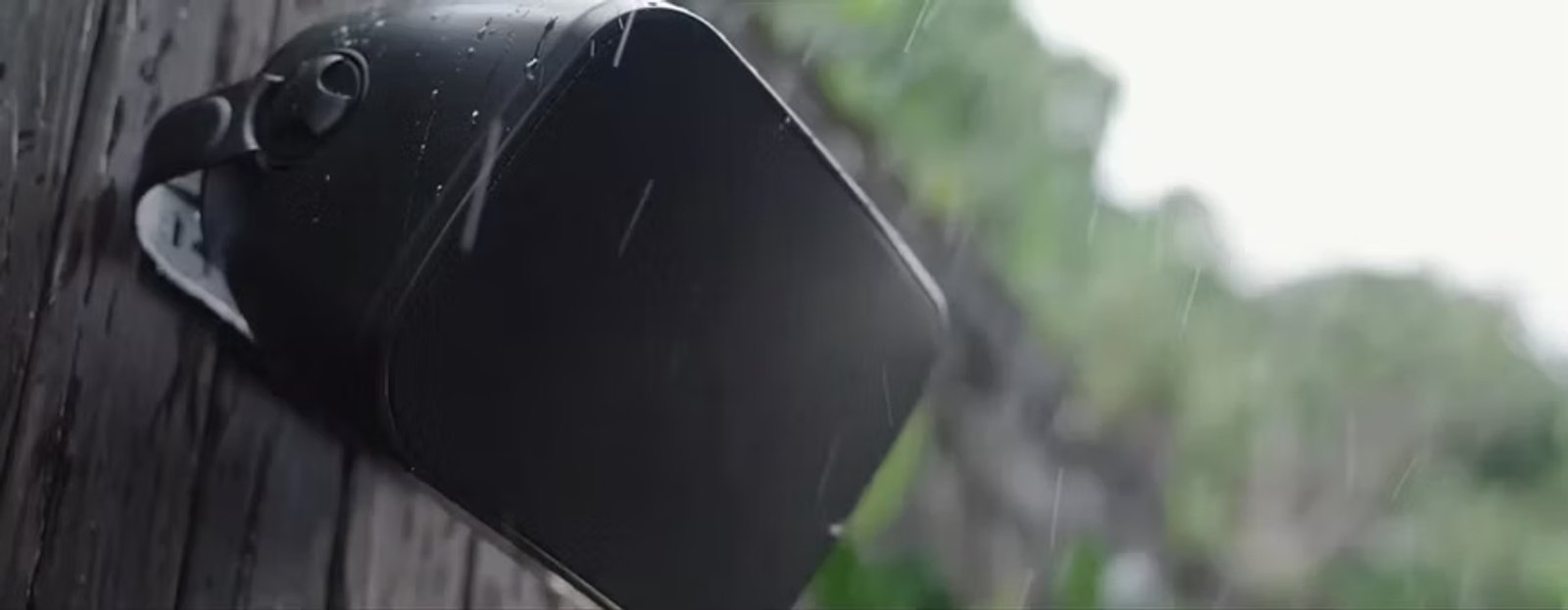

Weatherproof

Built for the elements.

IP66

Water · UV · Dust · Corrosion

02

Multi-Mode

PA-ready. No extra gear needed.

70V / 100V Line Compatible

Distributed audio over long runs

03

XBR Technology

Bass. No subwoofer required.

XSCACE Bass Radiator

Passive radiator tuning · Extended low end

Contents7 sections

Technical Specifications

20 parameters · scroll to explore

Power RMS

70W

fills a large living room

01 / 20

Acoustic

Power RMS

70W

Power Peak

100W

Impedance

8Ω

Sensitivity

87dB

Frequency

37Hz – 22kHz ±3dB

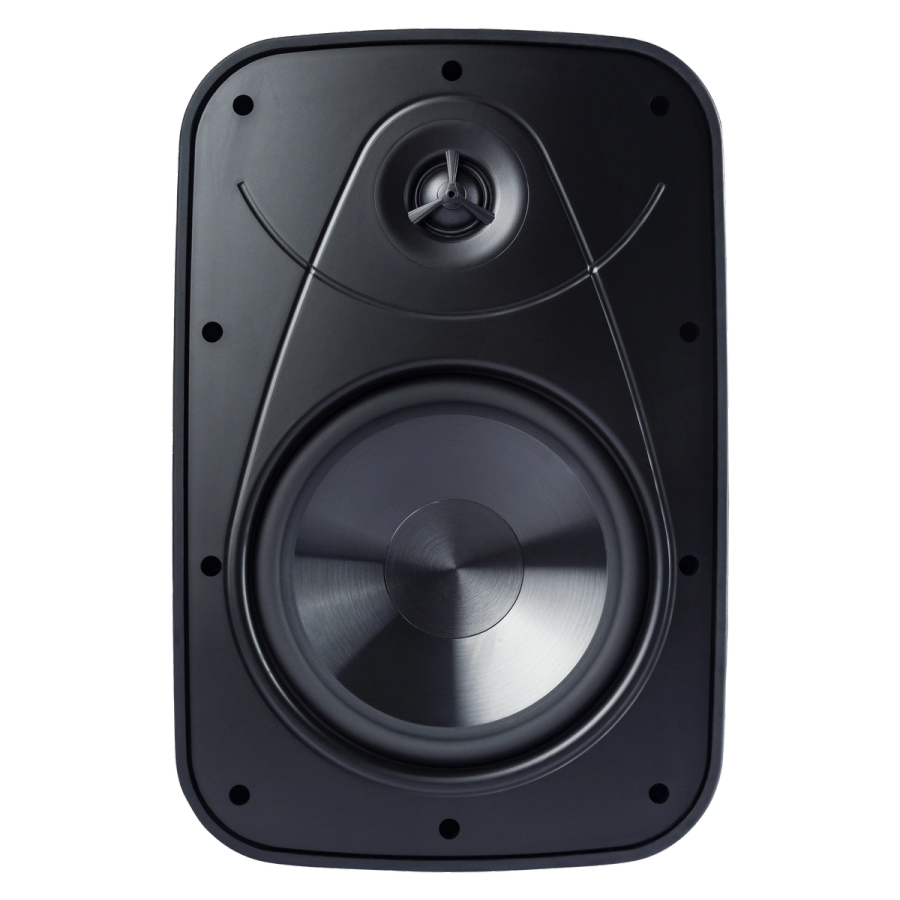

Driver

1 × 6.5"

Driver Material

Graphite Cone, Rubber Surround

Physical

Dimensions

H 285 × W 199.9 × D 194.8 mm

Weight

3kg

Housing

ABS

Colours

Standard all-weather finish

Custom RAL

+20% · 45–60 days

Power Type

Passive

IP Rating

IP66

Paintable Grille

Grille Material

Mild Steel

Crossover

Built-In Passive Crossover (2-way + XBR)

Max SPL

107dB

THD+N

≤0.2% @ 1W/1m

Connectivity

THD+N

≤0.2% @ 1W/1m

Spec Sheet Install Guide

Acoustic Measurements

Frequency Response & Directivity

Frequency Response

On-axis · 1W/1m · 37Hz – 22kHz ±3dB · 87 dB sensitivity

Proprietary Technology

Built different. By design.

Full Technology Story

Pairs With

Built to work together

In Use

Common installations

2.1 Outdoor Setup · Outdoor pair + sub + amp

Sound Simulation

Don’t see your setup?

Draw your own room, place this speaker in it, and see the predicted coverage before you specify.

Install Guide ↓Build My System →

Technical Reading

Engineering notes.

Engineering notes and technical background on the Camphor 6 — how it is built, measured and configured.

Article

Case Study: Camphor and Spirea for a Landscaped Garden

How a landscaped garden combined two outdoor speaker types — XSCACE Camphor wall-mounted on stone facade, and …

Mobile App

iOS & Android

XSCACE Controller

When paired with Air Amp or Air Mini, control this speaker from your phone. Volume, sources, multiroom groups, a 10-band parametric EQ, and X-Sense AI room calibration that maps the room as you walk it — all in one app.

Learn more →

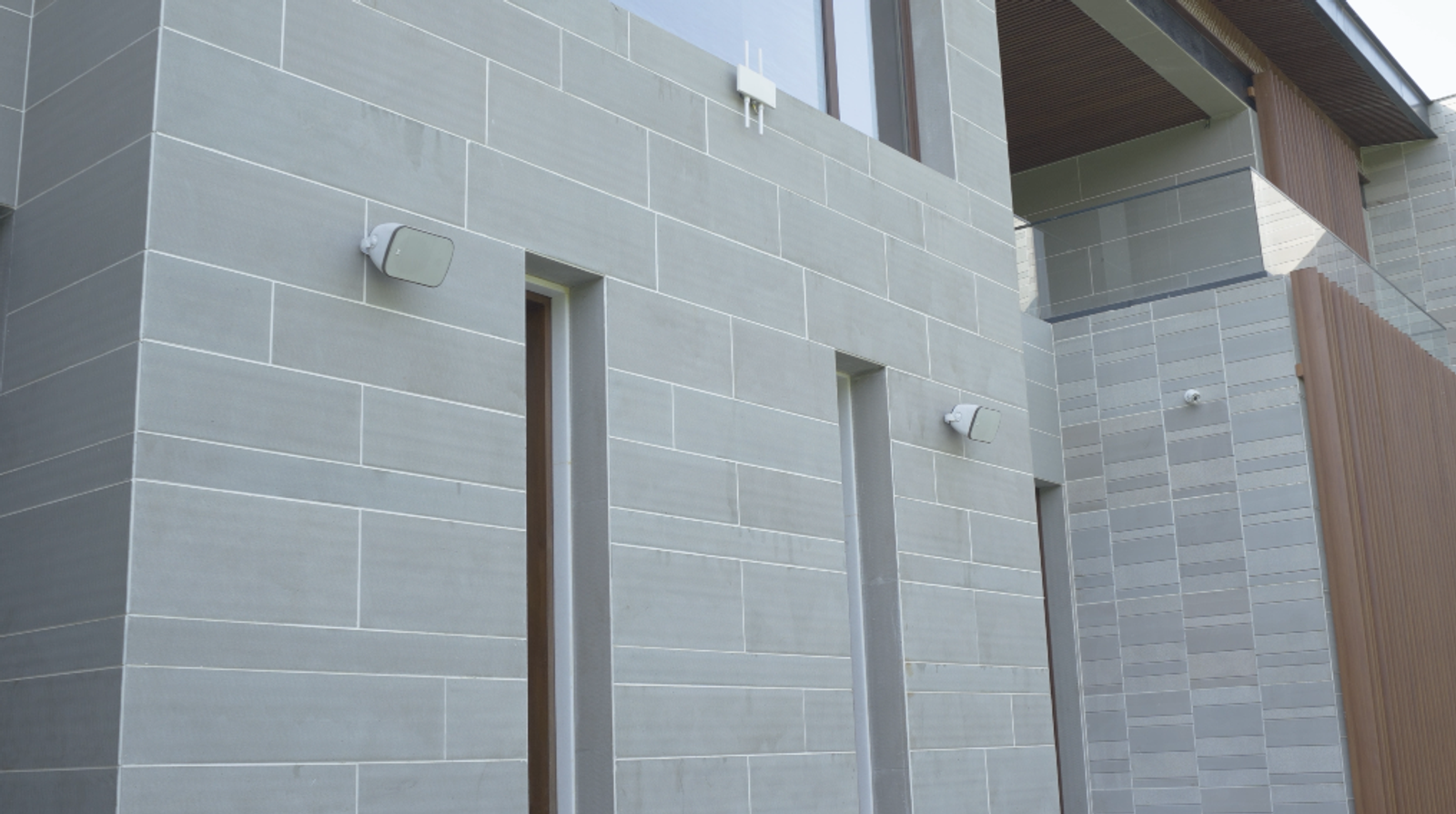

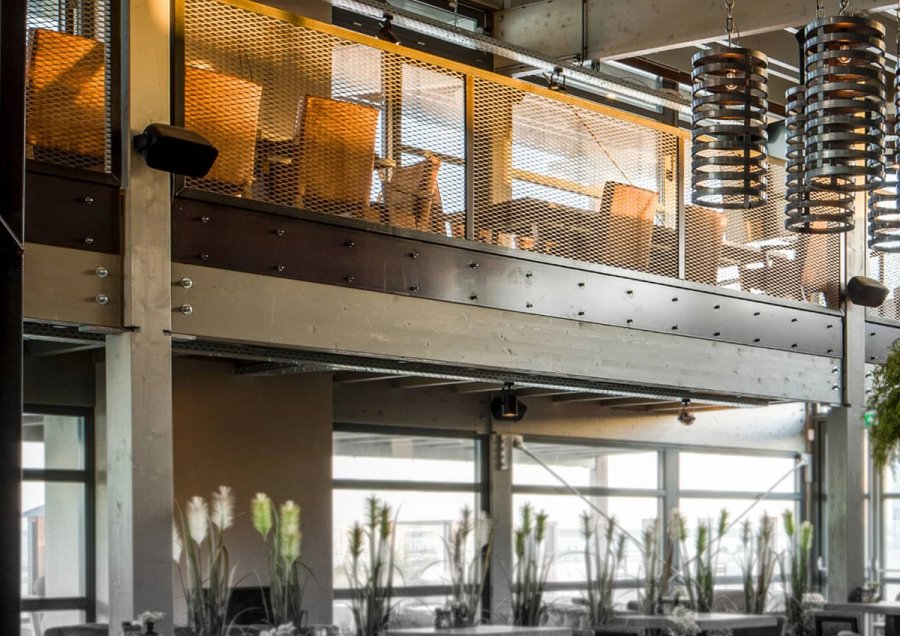

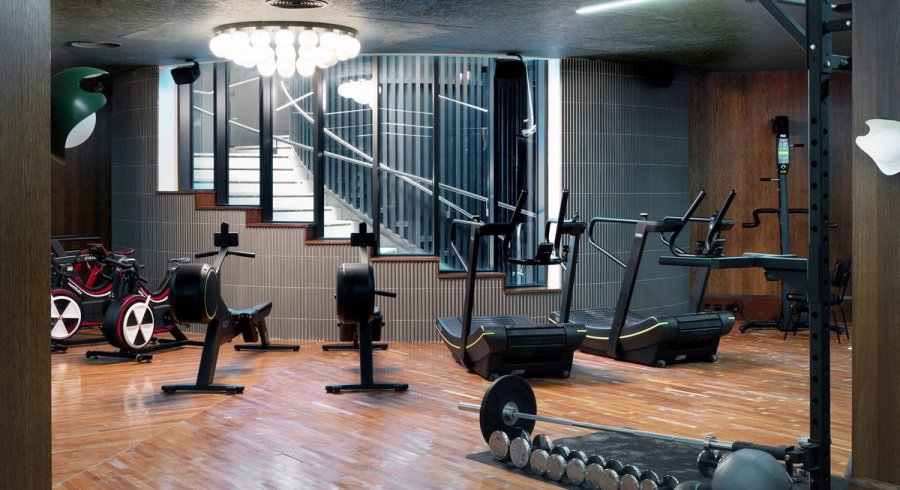

Gallery

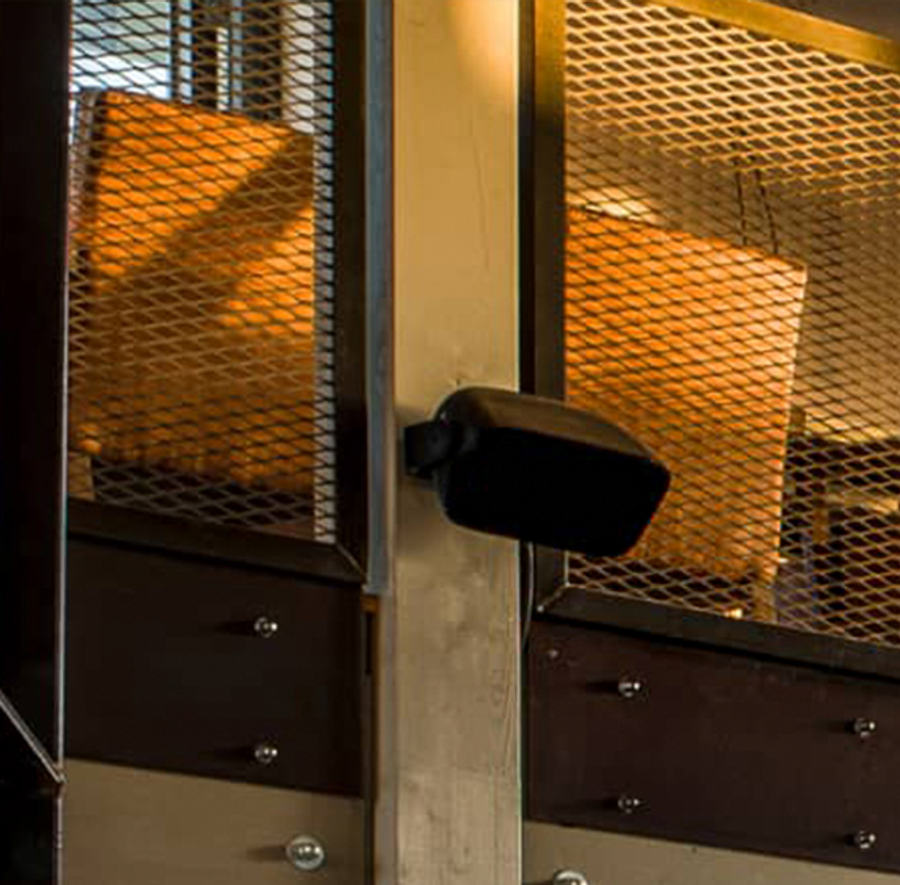

Camphor 6 in context

Scroll

The Camphor 6 is a 6.5-inch outdoor speaker rated IP66 for weatherproof performance, covering 37Hz–22kHz at 70W — built for gardens, patios, courtyards, and poolside installations up to 50×50 ft. Its silk dome tweeter and high-temperature voice coil are tested to withstand -20°F to 185°F without losing sound quality.

Frequently asked questions6 answers

What is the XSCACE Camphor 6?

Widely installed in luxury outdoor living spaces, rooftop terraces, poolside areas, and covered outdoor kitchens across Canada, the UK, India, and the Middle East.

What is the frequency response of the Camphor 6?

The Camphor 6 covers 37Hz–22000Hz (±3dB).

What is the power output of the Camphor 6?

The Camphor 6 is rated at 70W RMS (100W peak) into 8Ω.

Is the Camphor 6 an in-ceiling, in-wall, or slim-array speaker?

The Camphor 6 is an outdoor product, mounted via Stand-mount or wall-mount (wall mount bracket included in box).

How deep is the Camphor 6?

The Camphor 6 requires 194.8mm of depth.

Is the Camphor 6 rated for outdoor or wet-area use?

Yes, the Camphor 6 carries an IP66 ingress protection rating and is marine-treatable.
