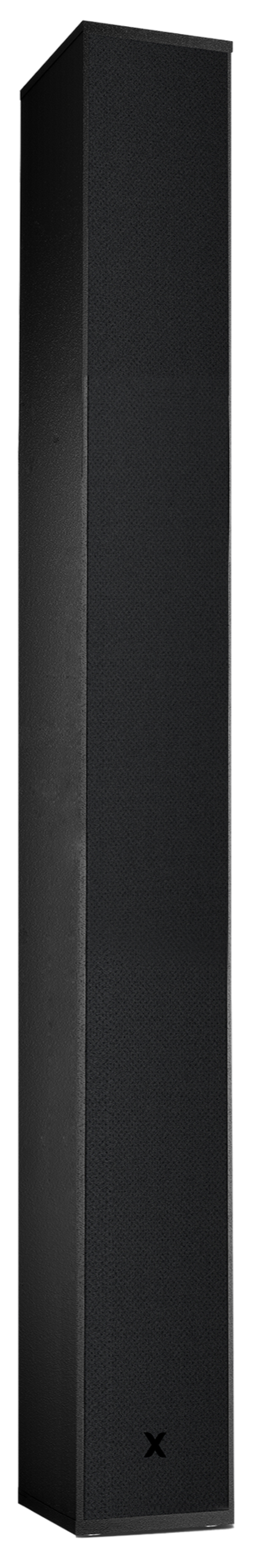

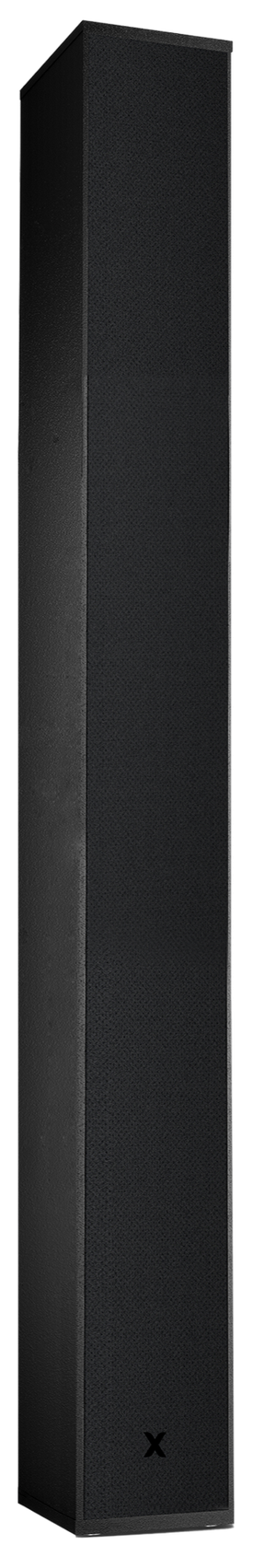

Banyan Canopy
Banyan Set Line Array Speaker
The Canopy is the top speaker module of the Banyan Set — a wide-dispersion line array powered by the Banyan Pith DSP subwoofer.
XSP-BAN-CAN
600W8Ω80Hz – 20kHzPassive
BlackMarine Treatable
Move cursor to illuminate
Design Philosophy
×
No passive compromiseSix 5″ aluminium-cone woofers and three 1.5″ compression drivers with waveguide — each driver optimised for its band. No single driver stretched beyond its design envelope.
×
No narrowing off-axis
×
No separate amplifier rack
×
No weather concession
→
600W. Outdoors. Architectural.
01 / 05
The Banyan Set
Two cabinets.
One complete system.
The Banyan Canopy and Banyan Pith are engineered as a pair. Every crossover point, every SPL alignment, every DSP preset is calibrated for this combination.
Banyan Canopy · Full Range
6× 5″ Woofer
3× 1.5″ Compression Driver
+ Waveguide
3× 1.5″ Compression Driver
+ Waveguide
Power600W RMS
Dispersion100° H · 12° V
WaveguideControlled HF coverage
Range80Hz – 20kHz

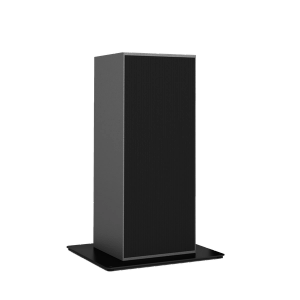

Banyan Pith · Powered Sub-Bass
2× 12″ Subwoofer
Built-in DSP Amplifier
Built-in DSP Amplifier
Power1200W RMS
Drivers2× 12″ Long-Throw
DSP2000W Built-in · Class D
Range27Hz – 120Hz
View Banyan Pith →Complete System
1800W Combined
Full Range6× 5″ Woofer
HF3× 1.5″ Compression Driver
WaveguideControlled HF coverage
Sub-Bass2× 12″ Long-Throw
DSP2000W Built-in · Class D
System Range27Hz – 20kHz
Installation
Mount it your way.

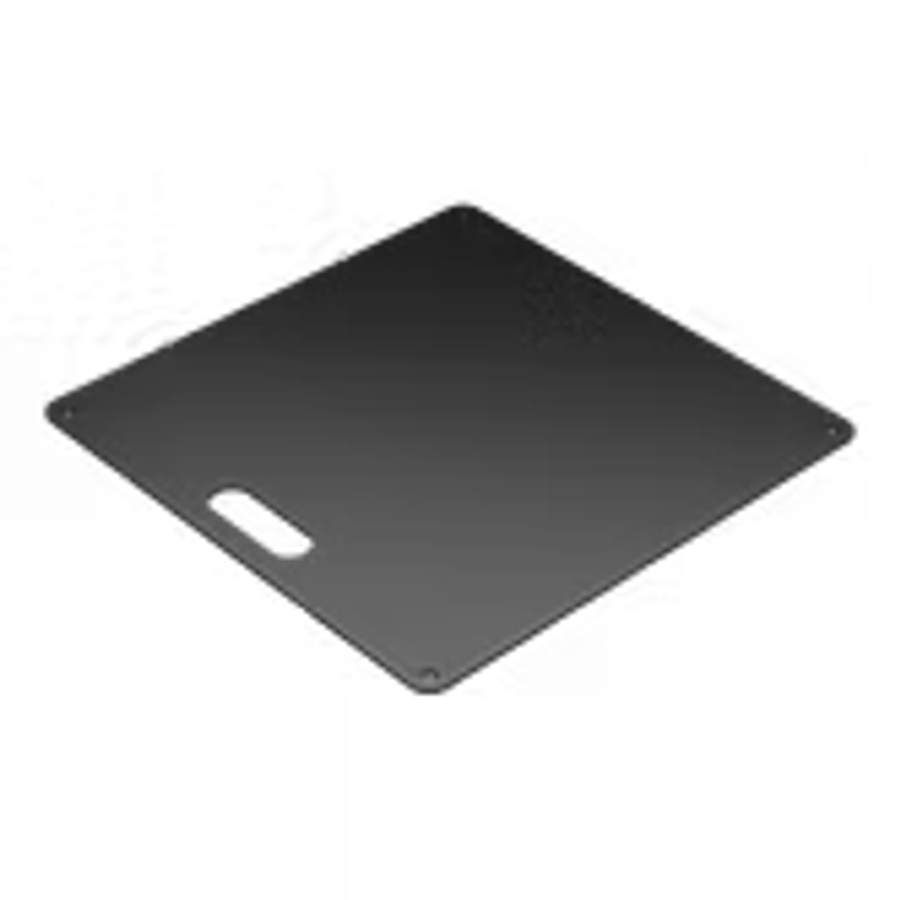

Baseplate
Ground or plinth-mounted. The Canopy stands upright on a weighted baseplate — no wall or ceiling fixing required.

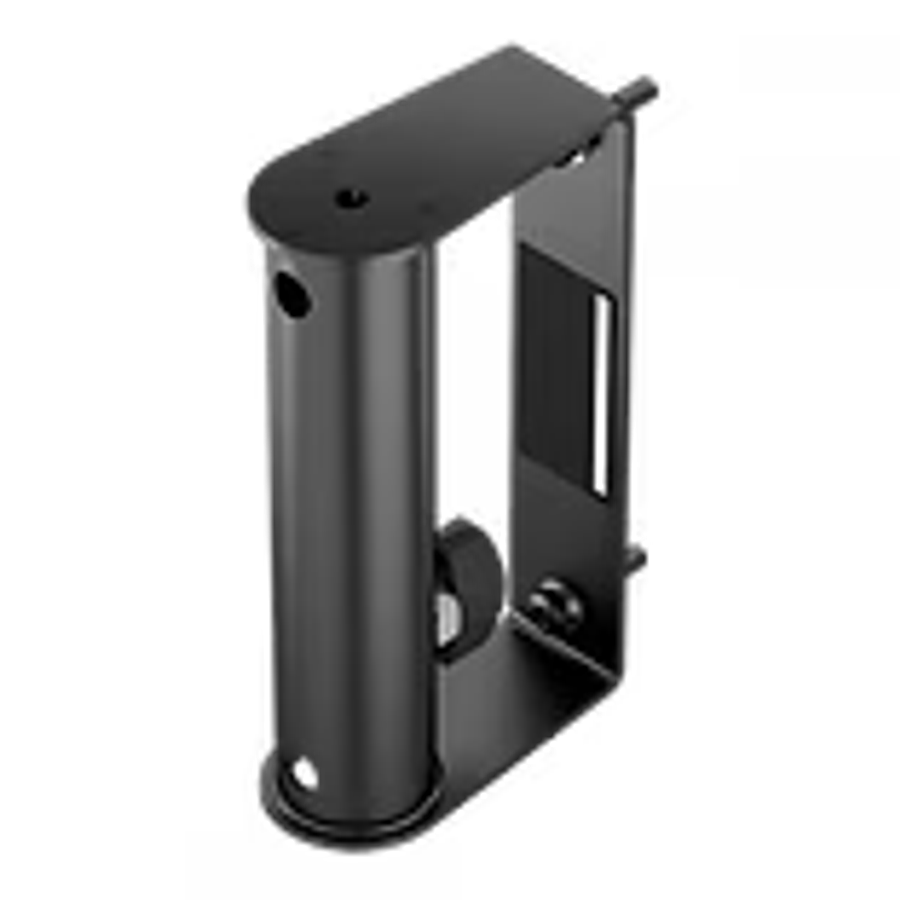

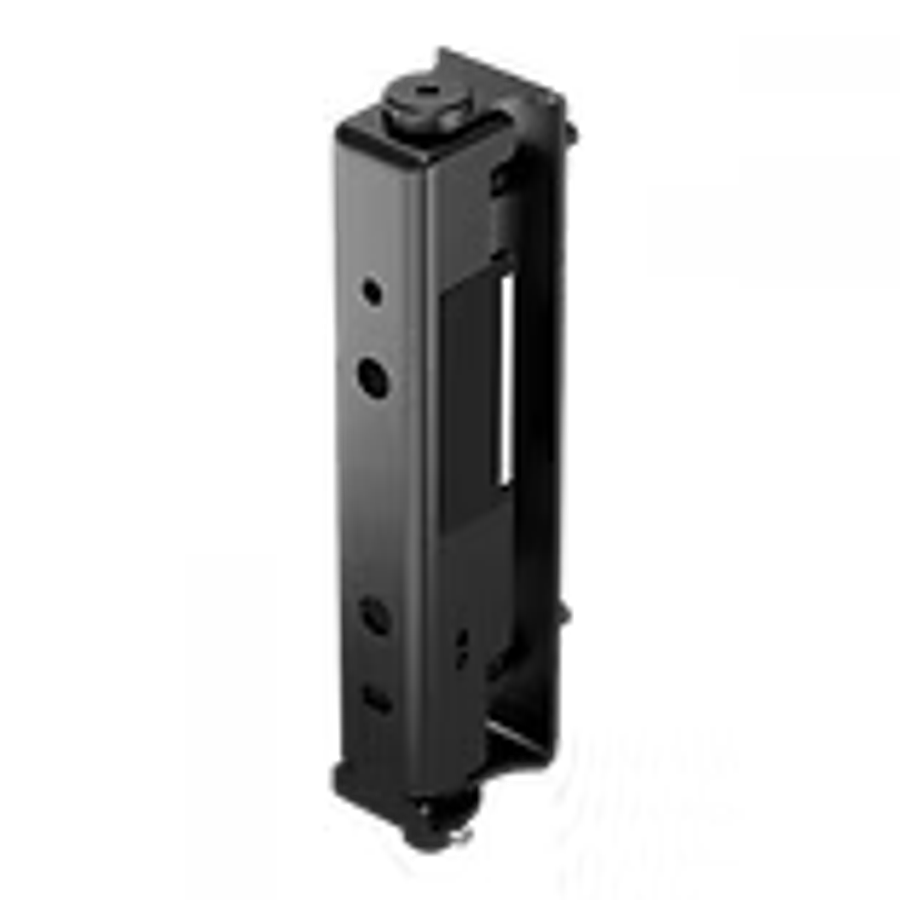

Wall Mount
Fixed surface mount. Bracket-mounted directly to any wall or architectural surface, angled for optimal coverage.

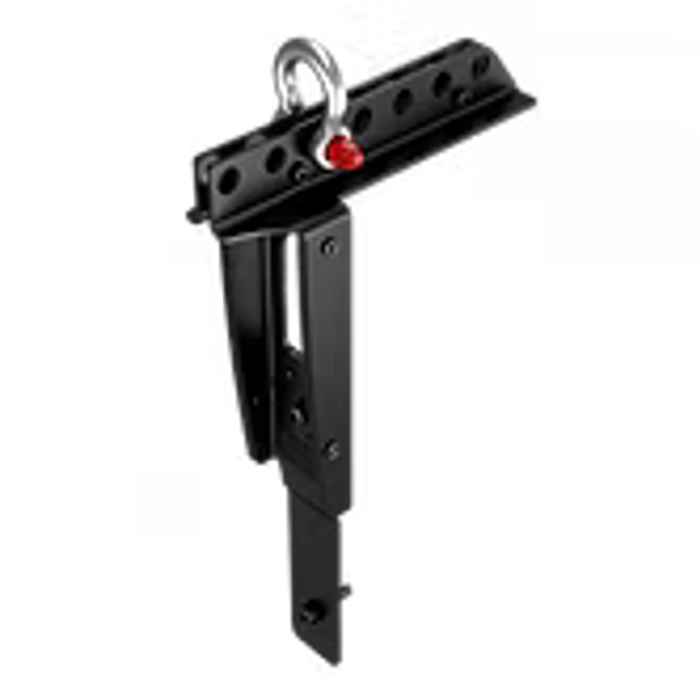

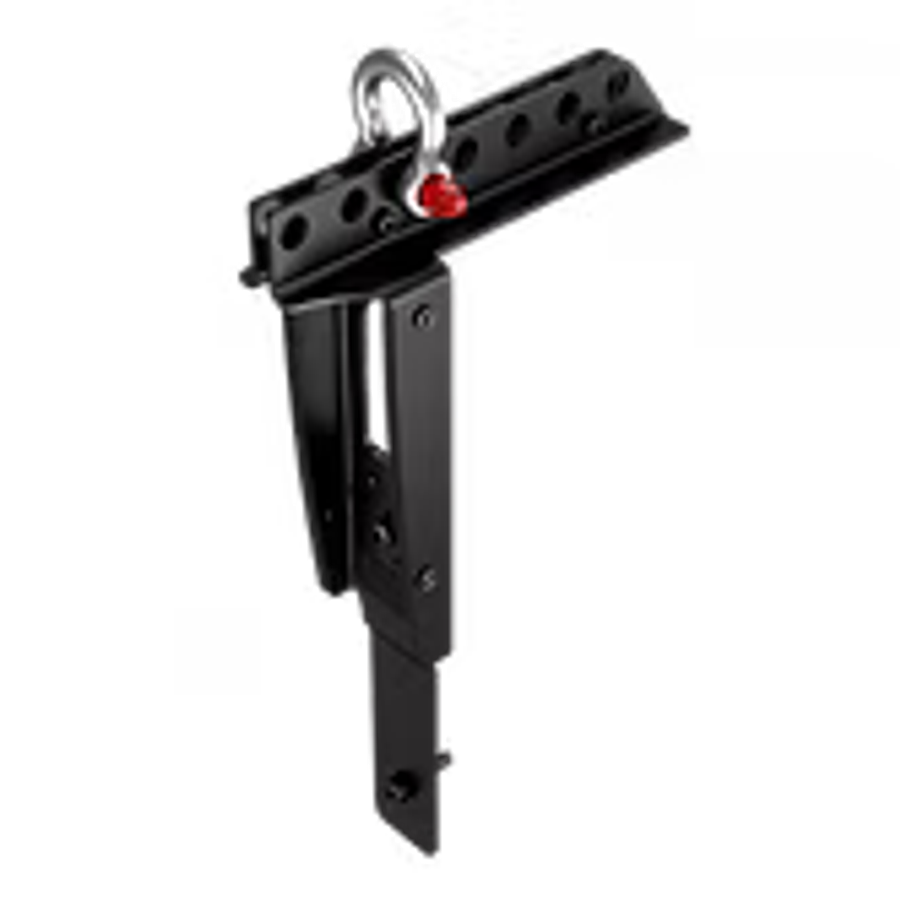

Hanging Mount
Suspended from overhead structure. Rigging points accept standard M10 hardware for truss or beam suspension.
Pole Mount
Pole-mounted above the Banyan Pith enclosure for a self-contained full-range column system.
Technical Specifications
18 parameters · scroll to explore
Power RMS
600W
fills a large living room
01 / 18
Acoustic
Power RMS
600W
Impedance
8Ω
Sensitivity
96dB
Frequency
80Hz – 20kHz
Driver
6 × 5"
Driver Material
Polypropylene Cone, Rubber Edge
Physical
Dimensions
1300 × 173 × 147 mm
Weight
21kg
Housing
Birch Wood
Colours
Black
Power Type
Passive
Mounting
Wall Mount, Baseplate, Hanging Mount, Pole Mount
Paintable Grille
No
Grille Material
Mild Steel
Paintable Grille
No
Crossover
Managed by Banyan Pith DSP module
THD+N
≤0.2% @ 1W/1m
Connectivity
THD+N
≤0.2% @ 1W/1m
Acoustic Measurements
Frequency Response & Directivity
Frequency Response
On-axis · 1W/1m · 80Hz – 20kHz ±3dB · 96 dB sensitivity
Polar Pattern
Normalised polar response · H 100° / V 12° (−6 dB @ 1 kHz)
Proprietary Technology
Built different. By design.

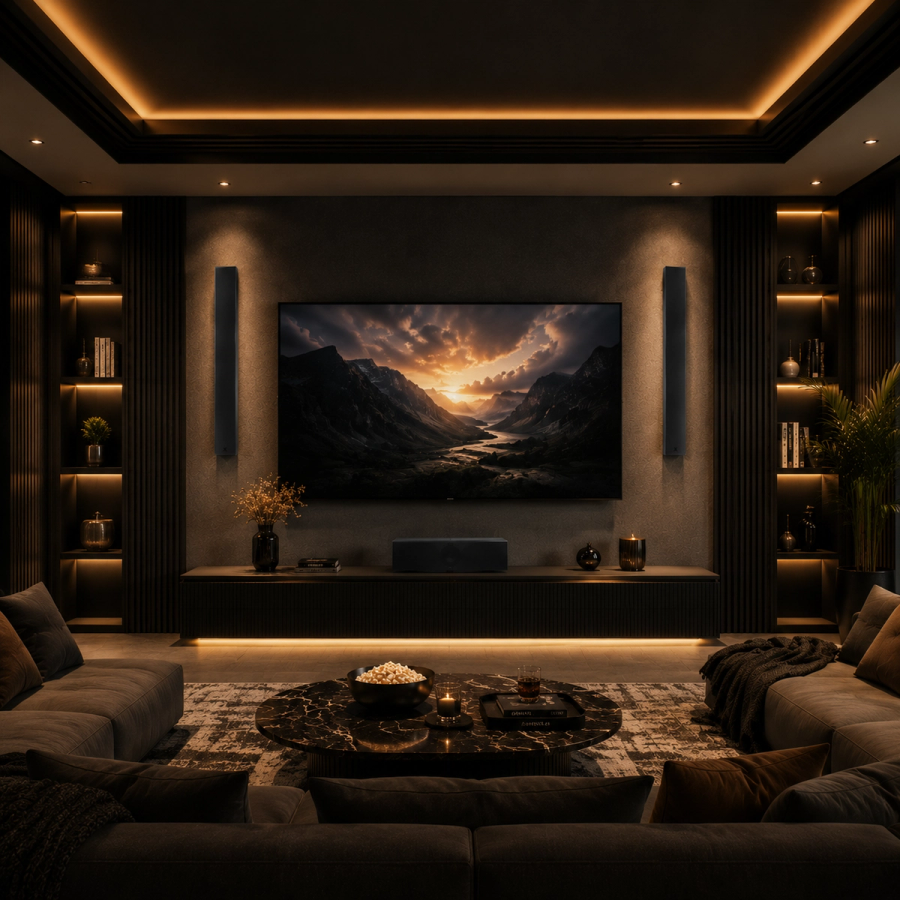

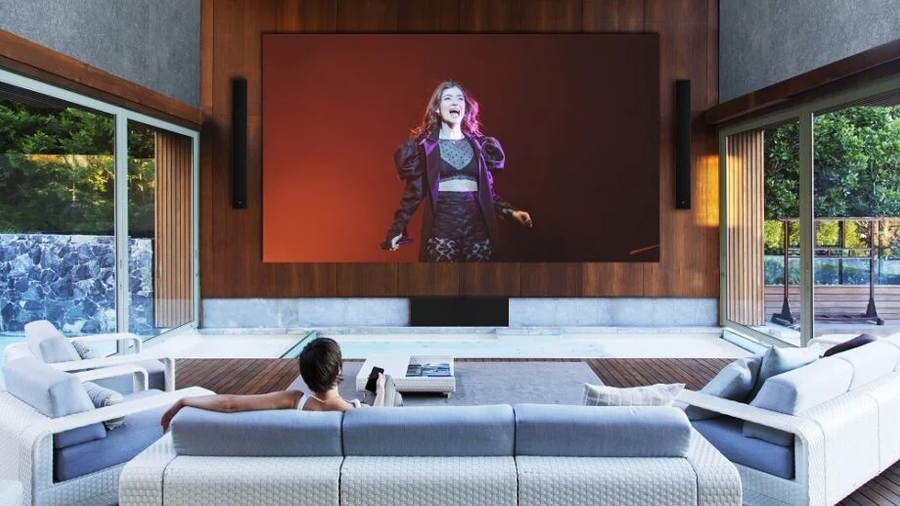

In Use
Common installations
AI System Builder
Don't see your setup?
Tell the AI your room, budget and use case — get a complete system in seconds.
Technical Documents
Downloads
Mobile App
iOS & Android
XSCACE Controller
When paired with Air Amp or Air Mini, control this speaker from your phone. Volume, balance, channel select, X-Sense AI room calibration, and streaming — all in one app.
Learn more →

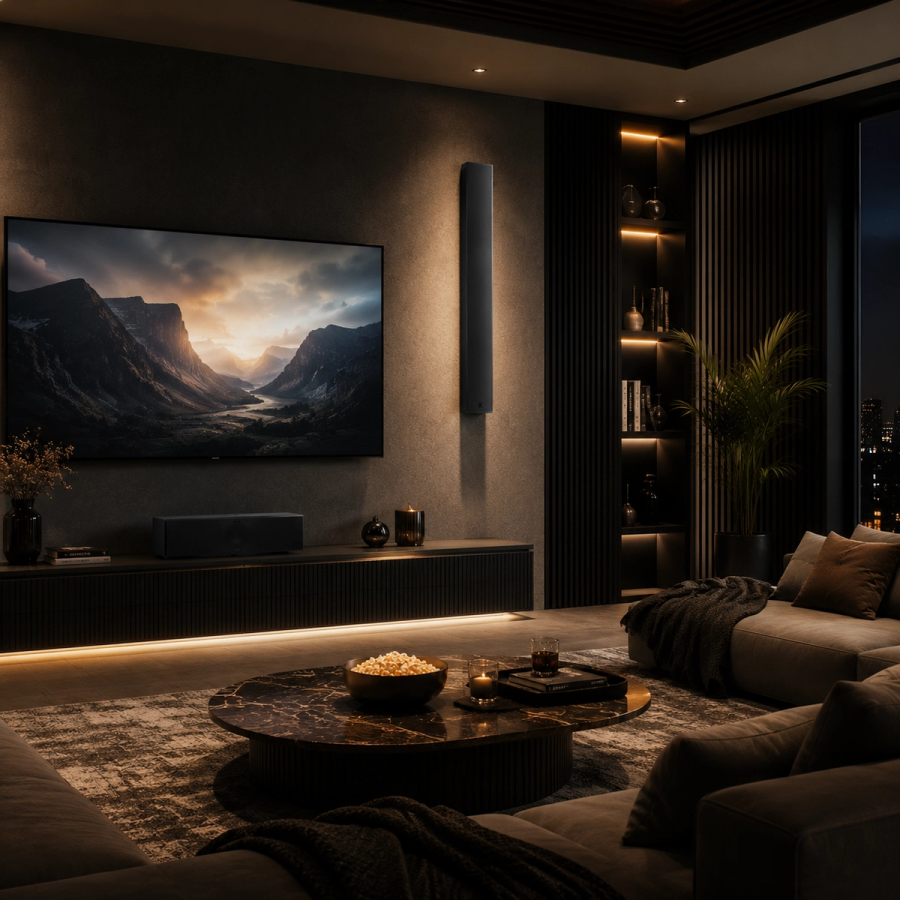

Gallery

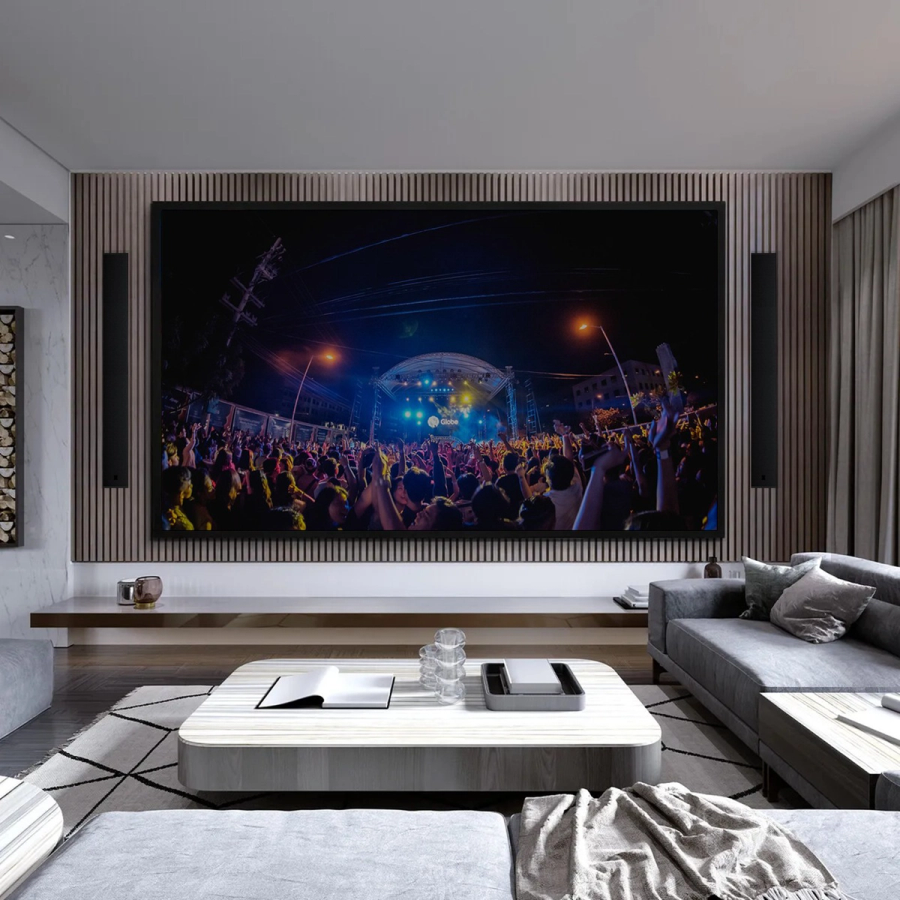

Banyan Canopy in context
